    Industrial Stainless Steel Optical Trackball Module With 3 Sealed Waterproof Mouse Buttons

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B83-38-OTB-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Industrial Stainless Steel Optical Trackball Module With 3 Sealed Waterproof Mouse Buttons


    Industrial Stainless Steel Optical Trackball Module With 3 Sealed Waterproof Mouse Buttons


    MODEL NO.: K-TEK-B83-38-OTB-DWP


    DIMENSIONS: 83.0mm x 110.0mm (front panel)


    TECHNICAL SPECIFICATION:


    ITEMSPECIFICATION
    MechanicalKey2 or 3 keys, quality brushed stainless steel buttons
    Key top styleround sealed stainless steel buttons with tactile feeling
    Front PlateQuality brushed stainless steel
    Key Travel1.00 mm
    Ball diameter38.1mm/1.50' (16mm, 19mm, 25mm also available)
    Key switch lifespanmore than 10 Mio actuations
    Track ball lifespan> 10 Mio revolutions
    Back Metal CoverRear side integrated electronics protected by a metal cover
    Actuation Force1.0 N to 3.0 N
    Mounting RackAluminum alloy
    Dimension

    Dimensions with 38.0mm track ball,

    Front plate (W x H): 83.0 x 110.0mm

    Overall (W x H x D): 107.0 x 134.0 x 40.7mm

    InterfacePS2, USB are available, Y type cable with ports of PS2 and USB
    ElectricalPower supply5V DC+ 10%, mouse interface
    Protection levelIP68 dynamic (front panel), NEMA3, IK10
    EMC StandardEN55022(B)
    Power consuming≤1.0W(dynamic)
    ≤0.2W(static)
    Contact MaterialStainless steel switch
    EnvironmentalOperating temperature-20°C-+ 60°C
    Storage temperature- 30°C-+ 70°C
    Operating RH30-90%
    Atmospheric pressure60-106Kpa.
    ReliableCertificatesRoHS compliant, CE and FCC certified. IP65 front panel, ESD
    MTBF>50000H
    MTTR< 30min
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
    Packing DetailsEach unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.

    MAIN FEATURE:

    • Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
    • All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.
    • Optical Encoders provide high resolution more than +800DPI, fast and reliable positioning data.
    • Available 38mm diameter Stainless steel for smooth, quick and durable operation and precise cursor positioning.
    • Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
    • Can be mounted horizontally, and vertically or any other directions.
    • no metal bearings inside, operation is very smooth, and easy without any noise.

    Actual Photos for reference:

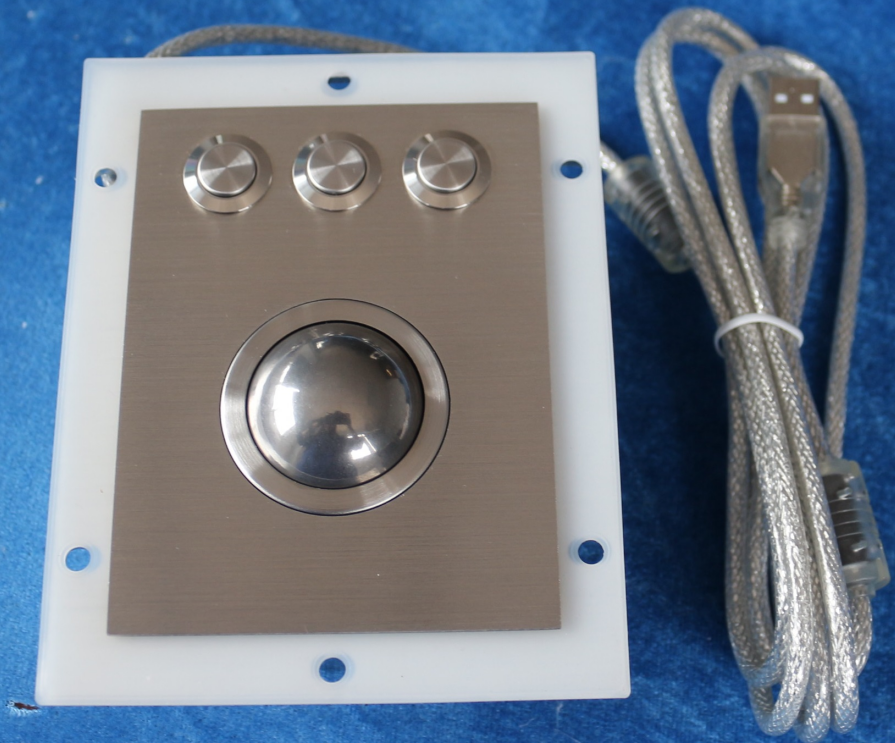

    Front View

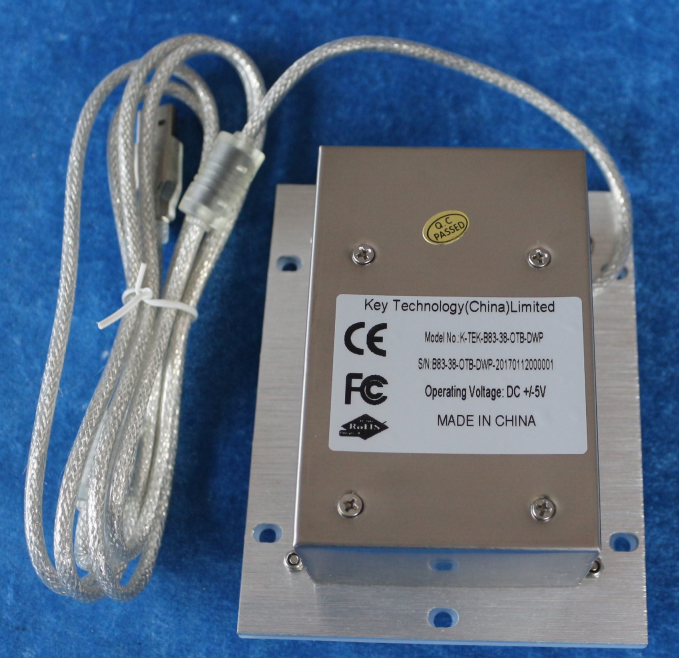

    Back View
