    IP68 washable 38.0mm optical Trackball Pointing Device at 800 DPI resolutions

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B107-38-OTB-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    IP68 washable 38.0mm optical Trackball Pointing Device at 800 DPI resolutions


    IP68 washable waterproof 38.0mm optical Trackball Pointing Device with 800 DPI resolutions


    DESCRIPTION: IP67 dynamic rated vandal proof stainless steel optical trackball with IP67 dynamic sealed & ruggedized stainless mouse buttons and IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with +800 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, optical trackball module protected and shielded by stainless steel housing, 3 sealed stainless steel mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, stainless steel top plate with threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.


    DIMENSIONS: 107.0mm x 120.0mm (top panel)



    MAIN FEATURE:

    • The trackball can be dynamic washable with water and other liquids, it can work well even under direct water pouring on the keyboard.
    • Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
    • All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.
    • Optical Encoders provide high resolution more than +800DPI, fast and reliable positioning data.
    • Available 38mm diameter Stainless steel for smooth, quick and durable operation and precise cursor positioning.
    • Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
    • Can be mounted horizontally, and vertically or any directions.
    • No metal bearings inside, operation is very smooth, and easy without any noise.

    TECHNICAL SPECIFICATION:


    ITEMSPECIFICATION
    MechanicalKey2 or 3 keys, quality brushed stainless steel
    Key top stylesealed round stainless steel buttons with tactile feeling
    Front PlateQuality brushed stainless steel
    Key Travel1.00 mm
    Ball diameter38.1mm/1.50" (19mm, 25mm, 36mm 40mm also available)
    Key switch lifespanmore than 10 Mio actuations
    Track ball lifespan> 10 Mio revolutions
    Back Metal CoverRear side integrated electronics protected by a metal cover
    Actuation Force1.0N to 3.0
    Mounting Racktop stainless steel plate with mounting screw bolts
    Dimension

    Dimensions with 38mm track ball,

    Front plate (W x H): 107.0mm x 120.0mm

    InterfacePS2, USB are available, Y type cable with ports of PS2 and USB
    ElectricalPower supply5V DC+ 10%, mouse interface
    Protection levelIP67 dynamic (front panel)
    EMC Standard
    EN 55032:2015, EN 55035:2017
    Power consuming≤1.00W(dynamic)
    ≤0.2W(static)
    Contact Materialsealed stainless steel buttons
    EnvironmentalOperating temperature-20ºC~+ 60º C
    Storage temperature- 30ºC~+ 70ºC
    Operating RH30~90%
    Atmospheric pressure60~106Kpa.
    ReliableCertificatesRoHS compliant, CE and FCC certified, ESD
    MTBF>20000H
    MTTR< 30min
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
    Packing DetailsEach unit to a suitable brown box, suitable brown boxes to a standard export carton.

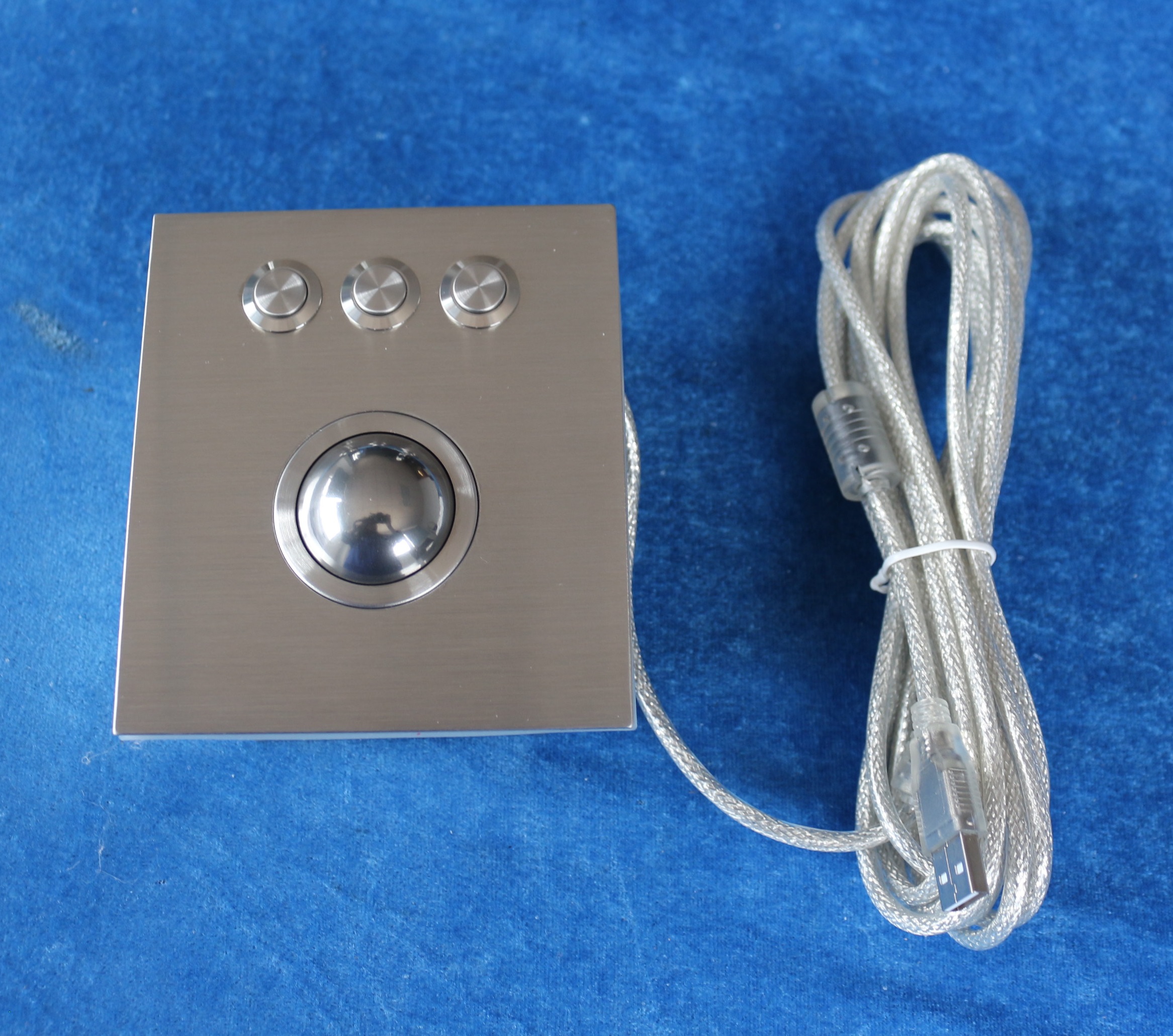

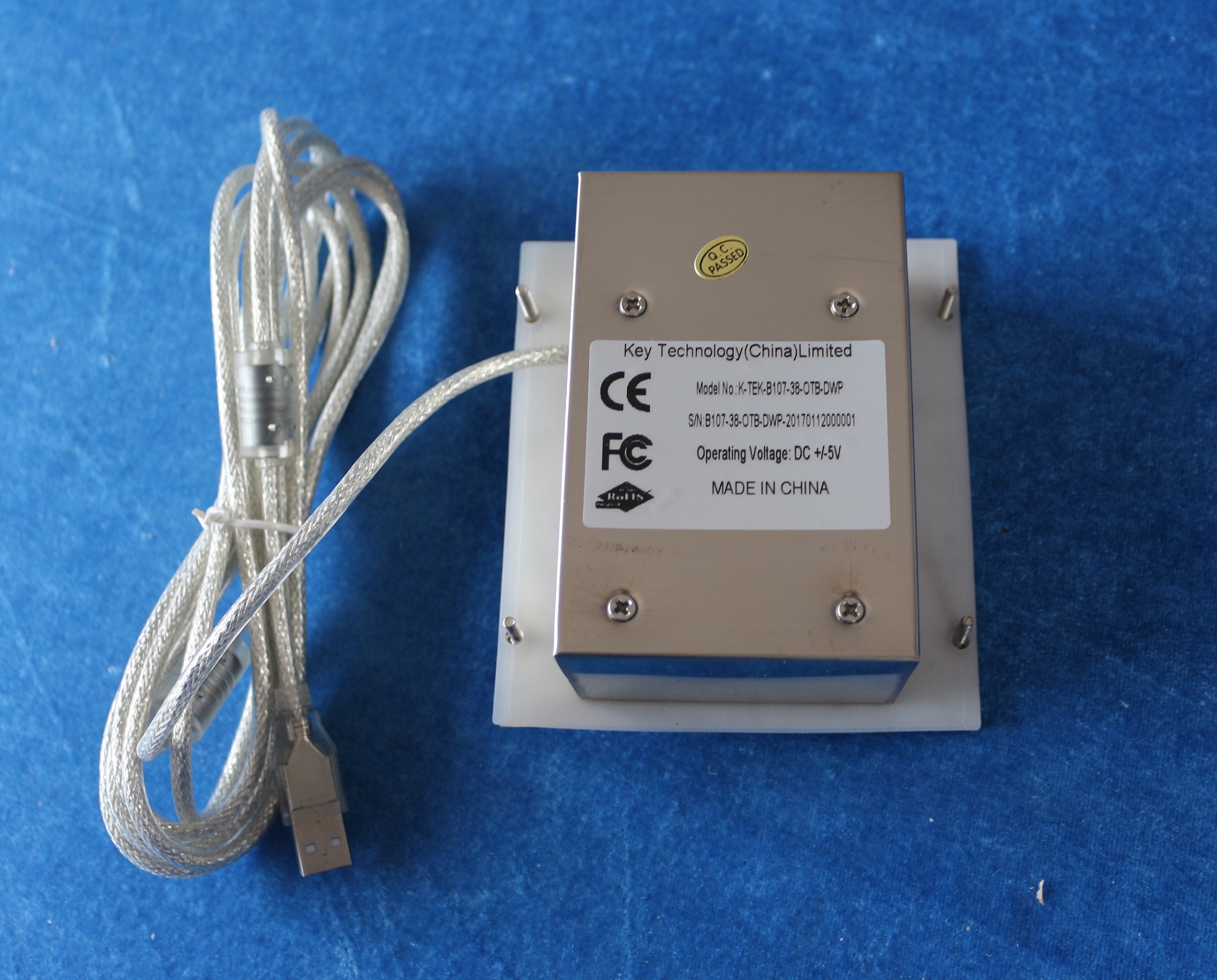

    Actual Photos for reference:
