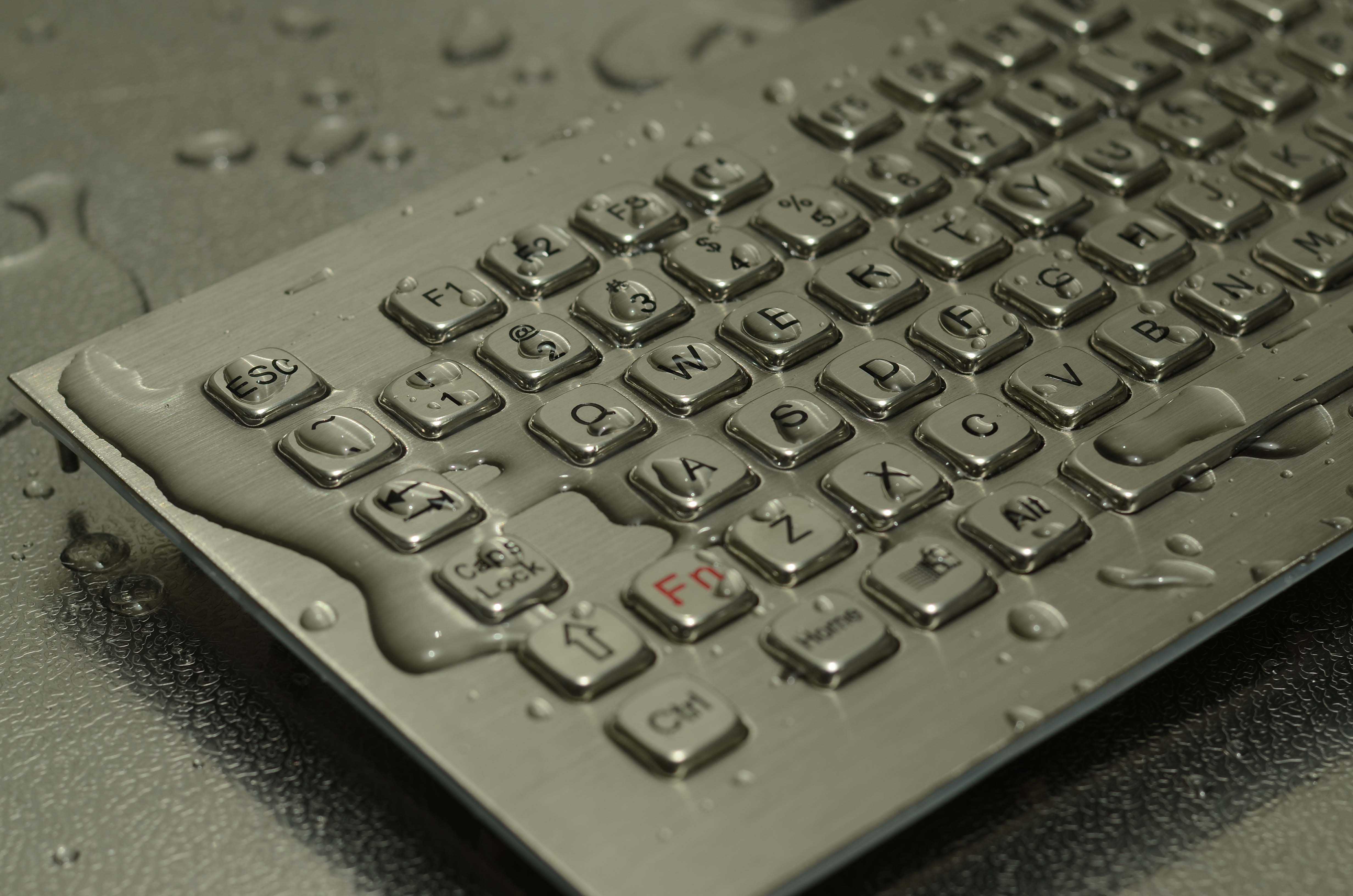

Ruggedized Metallic Panel Mount Keyboard IP67 Waterproof 73 Keys

    Buy cheap Ruggedized Metallic Panel Mount Keyboard IP67 Waterproof 73 Keys from wholesalers

    Buy cheap Ruggedized Metallic Panel Mount Keyboard IP67 Waterproof 73 Keys from wholesalers
    • Buy cheap Ruggedized Metallic Panel Mount Keyboard IP67 Waterproof 73 Keys from wholesalers
    • Buy cheap Ruggedized Metallic Panel Mount Keyboard IP67 Waterproof 73 Keys from wholesalers

    Ruggedized Metallic Panel Mount Keyboard IP67 Waterproof 73 Keys

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A392-LTB-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Ruggedized Metallic Panel Mount Keyboard IP67 Waterproof 73 Keys

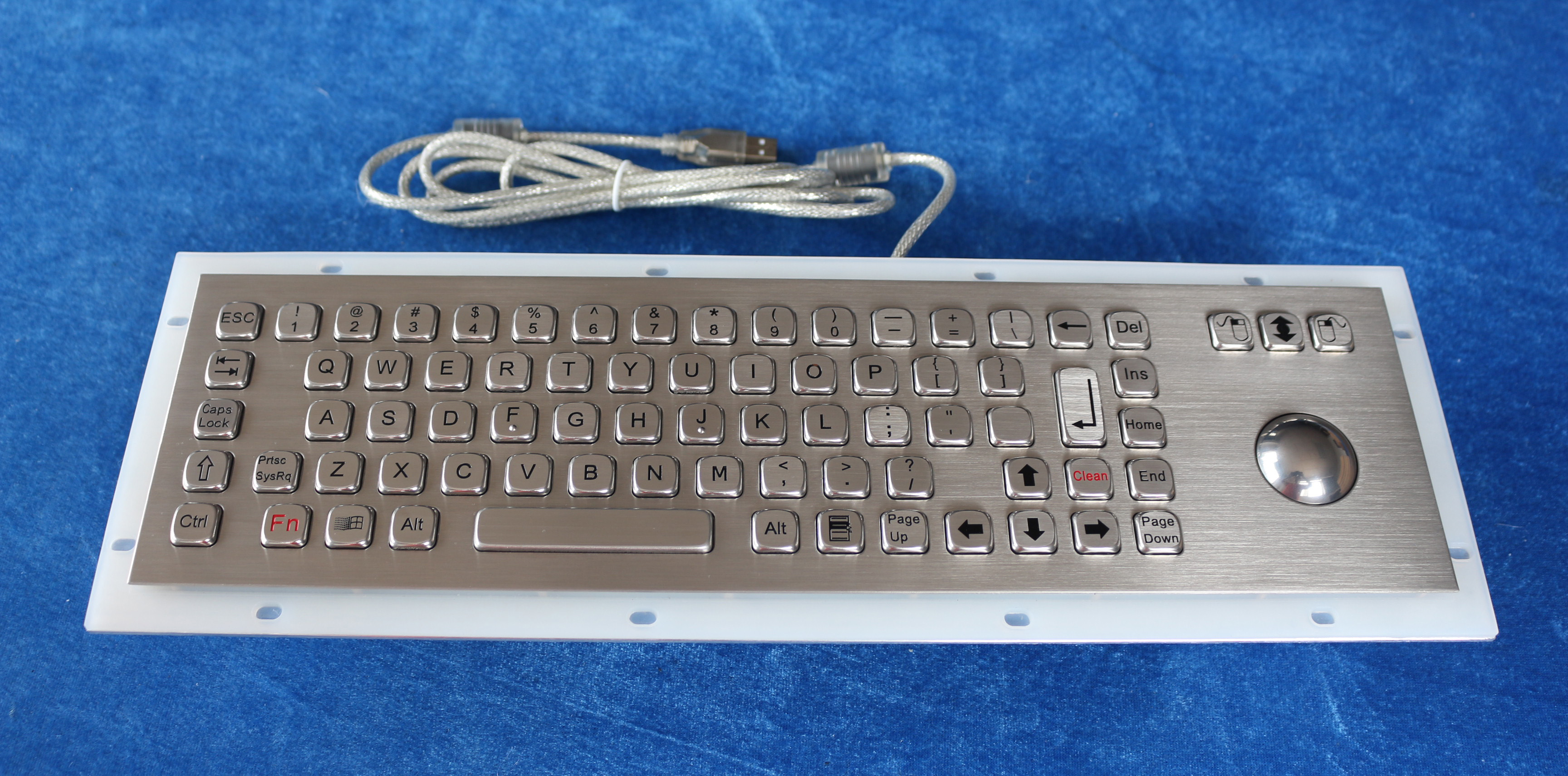

    Ruggedized Metallic IP67 Waterproof Panel Mount 38mm laser trackball Keyboard, 73 keys


    Description:

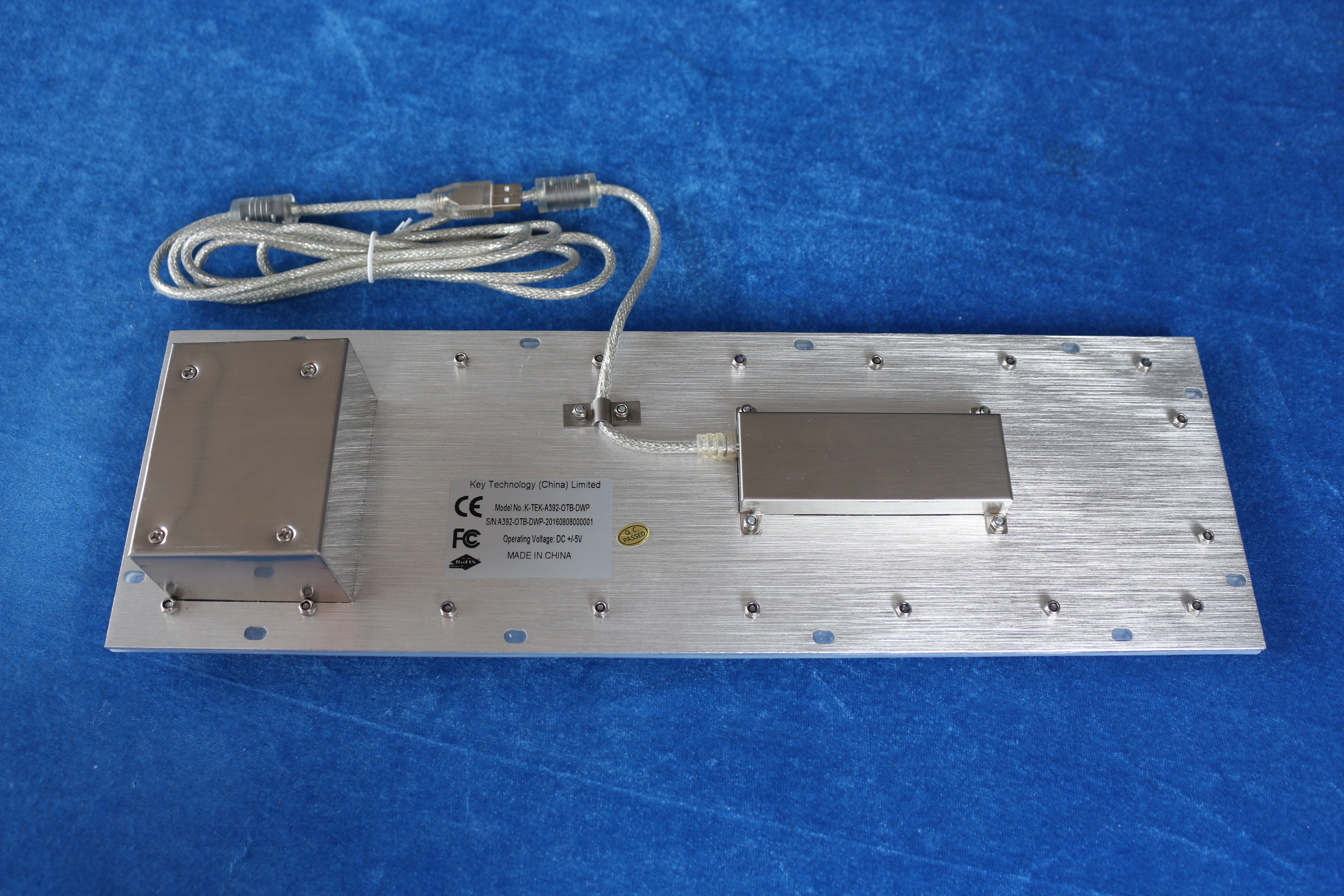

    1. Rear Panel mounting.


    2. Material: super quality SUS304 stainless steel.


    3. one compete silicone rubber along mounting aluminum plate for easy mounting & sealing tightly with cabinet


    4. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling


    5. 72 Keys Industrial PC-Keyboard.


    6. Metal keys are protected against twisting and evering which can not be dislodged from front, or defaced removing key covers.


    7. PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.


    8. Electro Carbon-on-Gold PCB key switch technology.


    9. All international language lay-out are optional., to accommodate foreign or custom variants.


    10. with 38.0mm stainless steel laser trackball module


    ELECTRICAL DATA:


    Supply Voltage+5V DC +/-5%
    Current Ratingappr. 30mA
    EMC StandardIt is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
    EMIEN 55022: 2010
    EMSEN 55024:2010
    Lifespan> 5 years
    Switch Contact MaterialCarbon-on-Gold key switch technology PCB
    InterfacePS2, USB available
    OSAll windows, Linux, Unix, Mac OSX


    MECHANICAL DATA

    • Switch life: more than 10 million of operations.
    • Front Plate: 1.5mm thickness super quality brushed stainless steel
    • Back Plate:3.0mm thickness brushed & oxidized aluminium
    • Tracker ball: 38.1mm (1.5’) diameter, IP65 static 400DPI mechanical trackball, IP68 dynamic washable 800DPI optical trackball, IP68 dynamic 1200DPI laser trackball are all available.
    • G.W.:2.00KGs
    • Dimensions: 392.0mm x 110.0mm (front panel) , 416.0mm x 134.0mm (back panel)
    • Actuator/keys: 71 keys, super quality SUS304 brushed stainless steel
    • Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    • Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.
    • Key travel: 2.0mm
    • Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
    ENVIRONMENTAL ADAPTABILITY
    • Operating temperature:-20oC to +60oC
    • Storage temperature: -30oC to +70oC
    • Operating RH: 30-90%
    • Atmospheric pressure: 60-106Kpa.
    • Saline mist: 96 hours, IEC 60512-6
    • Damp heat test at + 40oC: 21 days, IEC 60512-6
    • Dry heat test at + 85oC: 10 days, IEC 60512-6
    RELIABILITY
    • RoHS Compliant, CE and FCC, ESD
    • Protection Level: IP65(front panel)
    • Vandal resistant IK09
    • Key Lifespan >10 million actuations
    • MTBF >50000H
    • MTTR <30min
