    96mm X 18mm Dia PS2 Numeric Keypad With Carbon - On - Gold Key Switch

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M18FK
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

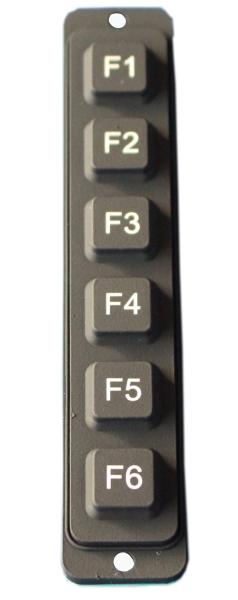

    96mm X 18mm Dia PS2 Numeric Keypad With Carbon - On - Gold Key Switch

    Panel Mount Rear Panel Rubber Silicone Industrial USB Or PS /2 Numeric Keypad


    1. 6 Keys IP67 waterproof(front) silicone military matrix function keypad with totally sealed and ruggedized military PCB with carbon-on-gold key switch technology


    2. Long stroke 2.00mm with excellent tactile feeling for stable and accurate data input, without electronics controller.


    3. Rear panel mounting.


    4. DIMENSIONS: 96.0mm x 18.0mm


    Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.


    MAIN FEATURE
    Silicone rubber keys against corrosion, shock, dust, falling raining, splashing, hose-directed water, operation under hostile environments.
    With firm tactile key feel, long travel carbon-on-gold key switches, with unique double over-travel protection.
    Waterproof/dirt-proof execution according to degree of protection IP67, waterproof and dirt proof encapsulation with unique membrane.
    Easily mounting into enclosure or panel.
    MECHANICAL DATA
    Switching Material: Carbon-on-Gold
    Actuation Force: 1.0N+/-0.1N (pressure point)
    Key Travel: 2.00mm
    Lettering: laser engraving.
    Actuator/Keys Materials: silicone rubber
    Dimensions: 96.0mm x 18.0mm
    G.W. 0.10KGs
    ELECTRICAL DATA
    Power Supply Voltage: 5.0V DC.
    Power Consumption: Under 150.0mW for operation, under 50.0mW for non-operation
    Electrical Lifetime: > 5 years
    EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
    EMI: EN 55022: 2010
    EMS: EN 55024:2010
    OS: All windows, Linux, Unix, Mac OSX
    ENVIRONMENTAL ADAPTABILITY
    Operating Temperature:-45°C to +95°C
    Storage Temperature:-40 °C to +80°C
    Operating RH: 30 ~ 90%
    Atmospheric Pressure: 60 ~ 106Kpa.
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection Level: IP67(front panel)
    Key Lifespan >5 million actuations
    MTBF >50000h
    MTTR <30min
