Rubber Material Silicone Industrial Keyboard Panel Mount Keyboard Stainless Steel Back Plate

Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Rubber Material Silicone Industrial Keyboard Panel Mount Keyboard Stainless Steel Back Plate from wholesalers

    Buy cheap Rubber Material Silicone Industrial Keyboard Panel Mount Keyboard Stainless Steel Back Plate from wholesalers
    • Buy cheap Rubber Material Silicone Industrial Keyboard Panel Mount Keyboard Stainless Steel Back Plate from wholesalers
    • Buy cheap Rubber Material Silicone Industrial Keyboard Panel Mount Keyboard Stainless Steel Back Plate from wholesalers
    • Buy cheap Rubber Material Silicone Industrial Keyboard Panel Mount Keyboard Stainless Steel Back Plate from wholesalers

    Rubber Material Silicone Industrial Keyboard Panel Mount Keyboard Stainless Steel Back Plate

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M275TP-FN-BL-ML-SS
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Price : To be quoted
    • Product Details
    • Company Profile

    Rubber Material Silicone Industrial Keyboard Panel Mount Keyboard Stainless Steel Back Plate


    Rubber Material Silicone Industrial Keyboard Panel Mount Keyboard OEM Available​


    Silicone Industrial Kryboard Special Features:


    1. IP65 dynamic rated ruggedized industrial silicone rubber keyboard with full keyboard functionalities


    2. with sealed & ruggedized tough touchpad for fast and accurate cursor position


    3. adjustable red industrial backlight included

    4. with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment


    5. top panel mounted with optional stainless steel back plate sealed with top ruggedized industrial silicone cover & industrial PCB for ruggedized structure and easy mounting and sealing


    6. keyboard with NVIS-compliant red adjustable backlighting, while NVIS backlighting makes this keyboard ideal for aviation or vehicle applications where night vision goggles are necessary


    7. keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality


    8. ease of customizing with multiple languages, to accommodate foreign or custom variants


    9. PS/2, USB connection cables that plug directly into computer like keyboard operations.


    10. Military level can be worked in -40- +80 degree wide temperature working conditions.


    11. Used widely for militaty computer


    12. FN+Clean to lock/disable the keyboard for easy cleaning without needing to take the keyboard from PC


    MECHANICAL DATA
    Keys89 keys
    Key top styleProtuberant rectangular keys with tactile feeling
    Key Size12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key
    Key travel1.50mm
    Actuation Force1.5N±0.2N (pressure point )
    Switch lifemore than 5 million of operations
    Touch padsealed and ruggedized tough touchpad
    Touchpad coverComposite
    More than Lifetime 10 million strokes
    Mutual capacitance sensing
    X/Y axis location detection resolution40 Counts /mm
    X/Y position reportrelative
    Output (self-detectable depending on cable)PS2 or USB
    Tracking speedMaximum 1,016 m/sec
    Power supply voltage5VDC ± 0.25V
    Current rating (active mode)< 10 mA
    G.W.1.50KGs
    ELECTRICAL DATA
    Supply Voltage+5V DC +/-5%
    Current Rating50mA when backlight is off, 300mA with backlight on
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialCarbon-on-Gold key switch technology with gold PCB
    InterfacePS2, USB available
    Cable lenghStandard 2.0m, customized length available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-40℃ to +75℃
    Storage temperature-45℃ to +85℃
    Operating RH100%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    Shock3x11 ms pulses of 50g on each of 3 axes
    VibrationPOWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
    RELIABILITY
    RoHS, CE, FCC
    Protection LevelIP65
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

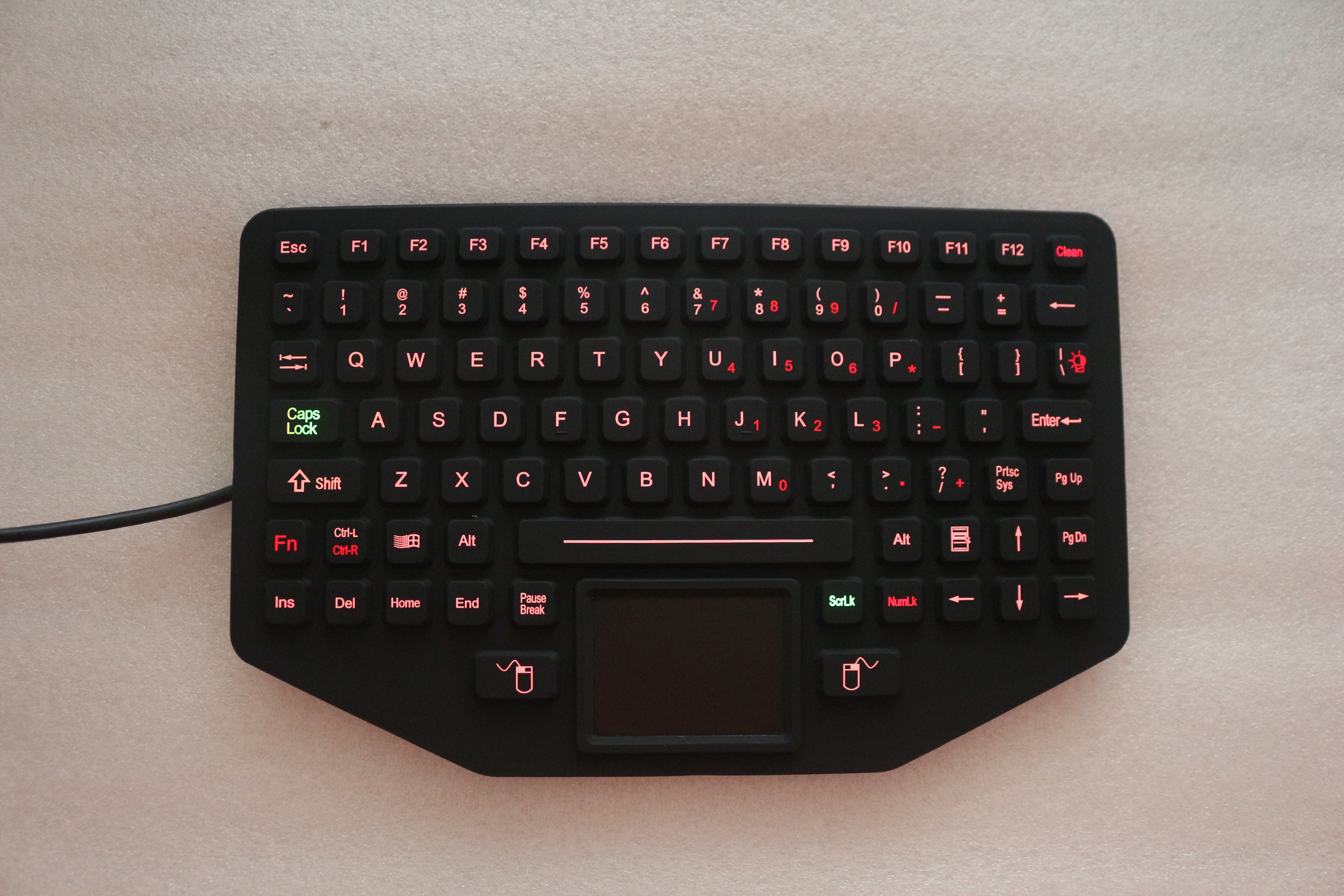

    Keyboard Actual photos
