IP68 Wireless Touchpad Industrial Oblique Desktop Silicone Keyboard
DIMENSIONS : 304.40mm x 195.8mm x (22.30mm-47.30mm) (L x W x H)
MECHANICAL DATA:
| Key | 89 keys |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Touchpad cover | Composite, More than Lifetime 10 million strokes, Mutual
Capacitance sensing |
| X/Y position sensing resolution | 40 counts/mm |
| X/Y position reporting | Relative |
| Output | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5 VDC ± 0.25V |
| Current rating (active mode) | |
| Key Size | 2.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key,
68.0mm x 13.0mm for space bar key |
| Cable Length | 2.0m |
| G.W. | 1.5KGs |
DESCRIPTION:
Blue-tooth wireless versions, mountable desk top version with
robust polycarbonate case.
Used widely for industrail area
IP68 dynamic sealed & ruggedized industrial silicone rubber
industrial keyboard with full keyboard functionalities with sealed
& ruggedized tough touchpad, blue tooth wireless industrial
keyboards, with industrial PCB with carbon-on-gold key switch
technology with long stroke (1.50mm) with extremely good tactile
feeling for fast and accurate data input without any noise,
with durable coating & antimicrobial keyboard surface withstand to
most chemicals and liquids under harsh environment, Clean key for
easy cleaning,
MECHANICAL DATA:
Key | 89 keys |
Key top style | Protuberant rectangular keys with tactile feeling |
Touchpad cover | Composite, More than Lifetime 10 million strokes, Mutual
Capacitance sensing |
X/Y position sensing resolution | 40 counts/mm |
X/Y position reporting | Relative |
Output | PS2 or USB |
Tracking speed | Maximum 1,016 m/sec |
Power supply voltage | 5 VDC ± 0.25V |
Current rating (active mode) | |
Key Size | 2.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key,
68.0mm x 13.0mm for space bar key |
Cable Length | 2.0m |
G.W. | 1.5KGs |
APPLICATIONS:
This keyboard provides full-size versatility in a rugged, compact
design with the added convenience of an integrated touchpad. For
working in low-light areas, it is also available with optional LED
backlighting.
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas,
food and beverage, clean or dirty manufacturing environments,
warehouses
This keyboard is ideal for use in environments ranging from
manufacturing to material handling to medical settings. Its large
numeric pad allows for easy data entry, while its robust
polycarbonate case protects it against any hazardous environment.
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic
equipments, operation rooms, dialysis centers etc;
MAIN FEATURES:
Wireless Keyboard
Keyboard with NVIS-compliant red adjustable backlighting optional,
while NVIS backlighting makes this keyboard ideal for aviation or
vehicle applications where night vision goggles are necessary.
Keyboard provides full-size versatility in a rugged, compact
design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular
keyboard, which is protected against dust, dirt, grease and
corrosive liquids to NEMA 4X, which means it can withstand directed
hose water, disinfectants, environmental contaminants and heavy
industrial use.
Clean key-Prevents data from being sent while the keyboard is wiped
down, allowing user to clean at any interval with minimal
downtime-User is notified of ‘lock down mode’ by brightly lit CLEAN
KEY
Special durable-coating for excellent mechanical and chemical
resistance
With firm tactile key feel, key travel 1.50mm key travel.
Integrated touchpad.
Keyboard can b
Ease of customizing with multiple languages, to accommodate foreign
or custom variants.
PS/2, USB connection cables that plug directly into computer like
keyboard operations.
Enclosure: industrial silicone, Robust ABS Polycarbonate Case
Low-profile keys for easy cleaning
Key life: 10 millions
RELIABILITY
RoHS , CE, FCC, ESD
Protection Level: IP68, NEMA 6P
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC
Storage temperature: :-30oC to +70oC
Operating RH: 100%
Atmospheric pressure: 60-106Kpa
Shock: 3x11 ms pulses of 50g on each of 3 axes
Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz
- 2kHz, DURATION OF TEST PER AXIS: 3 hours
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: 30mA (non-backlight), 150mA (with backlight on)
EMC Standard:
It is compliance with the council EMC directive 89/336/EEC EN55022:
1988+A1:2000+A2:2003 EN55024: 1988+A1: 2001+A2:2003
Emission: EN 50081-1
Immunity: EN 50082-1
Lifespan> 3 years
Switch Contact Material: Carbon-on-Gold key switch technology with
gold PCB.
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To
be confirmed).

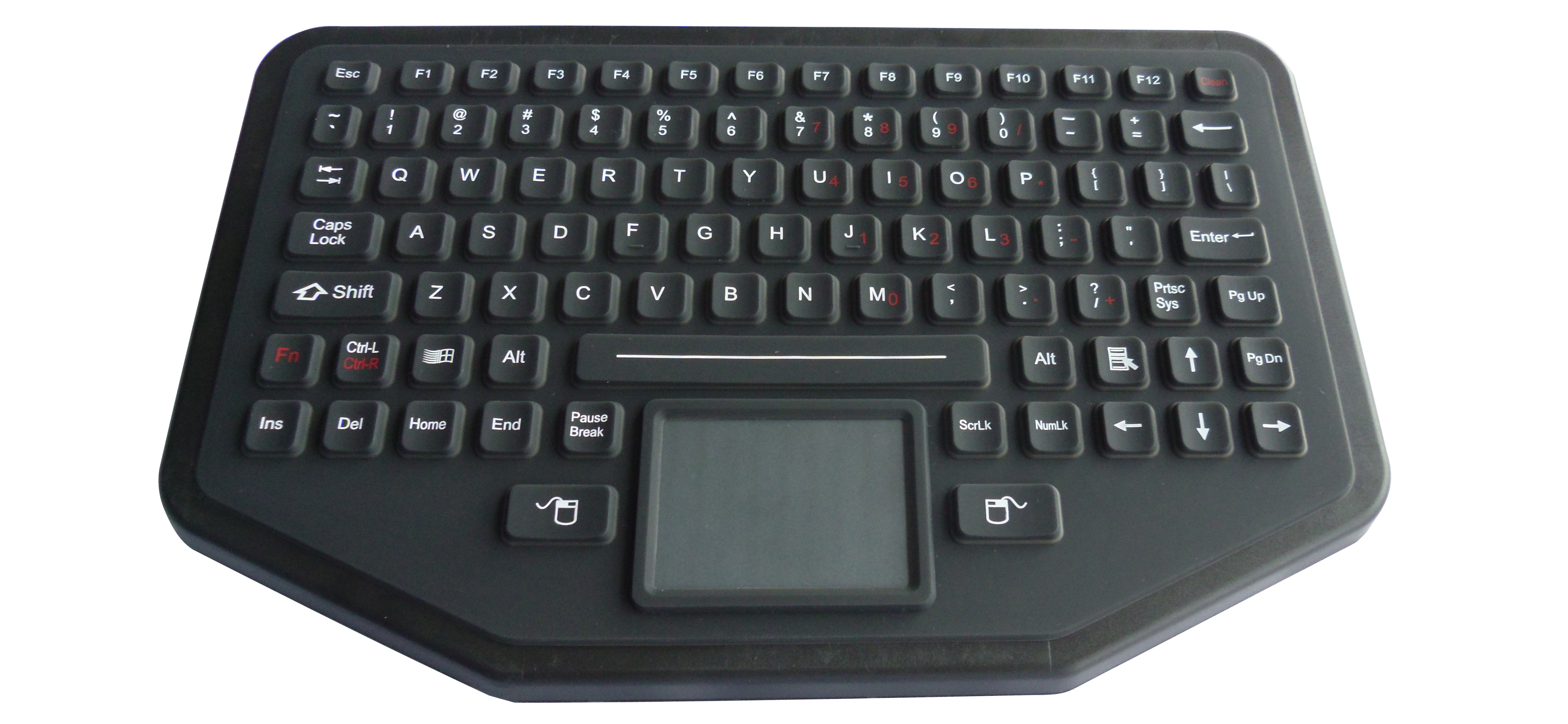

Actual photos:
