IP65 Black Marine Keyboard Backlit Vandal Resistant Stainless Steel Rugged

Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap IP65 Black Marine Keyboard Backlit Vandal Resistant Stainless Steel Rugged from wholesalers

    Buy cheap IP65 Black Marine Keyboard Backlit Vandal Resistant Stainless Steel Rugged from wholesalers
    • Buy cheap IP65 Black Marine Keyboard Backlit Vandal Resistant Stainless Steel Rugged from wholesalers
    • Buy cheap IP65 Black Marine Keyboard Backlit Vandal Resistant Stainless Steel Rugged from wholesalers
    • Buy cheap IP65 Black Marine Keyboard Backlit Vandal Resistant Stainless Steel Rugged from wholesalers

    IP65 Black Marine Keyboard Backlit Vandal Resistant Stainless Steel Rugged

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M360TP-KP-FN-BL-BT-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

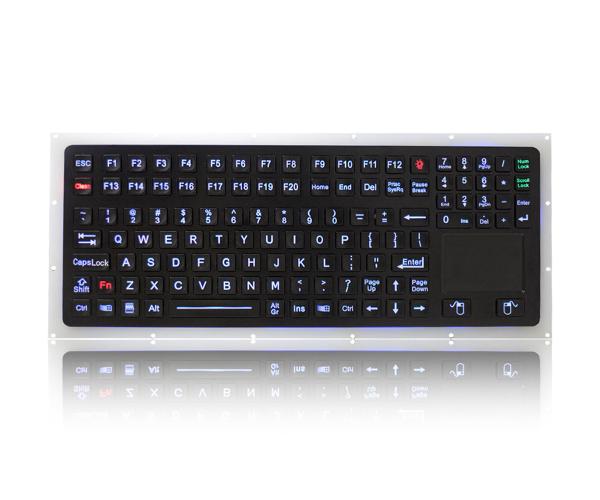

    IP65 Black Marine Keyboard Backlit Vandal Resistant Stainless Steel Rugged


    IP65 Black Stainless Steel Industrial Marine Illuminated Backlit Keyboard with Touchpad


    DESCRIPTION: 116 keys compact format IP65 dynamic water proof vandal proof stainless steel industrial keyboard with

    durable polymer keys with full keyboard functionalities, IP65 dynamic sealed & ruggedized rough touch pad for fast and accurate cursor position. function keys F1, F2, ...F19, F20 are on the top line for easy operation, sealed and ruggedized industrial PCB with carbon-on-gold key switch technology with long stroke 1.20±0.10mm with extremely good tactile feeling for fast and accurate data input without any noise,individual numeric keypad integrated, one complete silicone rubber alone the rear stainless steel plate for easy mounting and sealing tightly with cabinet, rear panel mounted. High quality scratch-proof durable black titanium electroplated on the top stainless steel plate, stainless steel back plate with holes for rear mounting solution. Adjustable backlight included (RED, BLUE, WHITE etc.), Which is good for outdoor application with direct rain and very harsh environments with humidity,much dynamic water, oil,dirty and salt mist etc.


    Dimensions: 360.0mm x 144.0mm (front panel)



    RUGGED KEYBOARD MECHANICAL DATA
    Keys116 keys(Including 2 mouse buttons),durable polymer keys
    Key top styleProtuberant rectangular keys with tactile feeling
    Key Size14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 68.2mm for space bar
    Key travel1.20mm±0.10mm
    Actuation Force2.0N±0.2N for key 14.0mm x 14.0mm (pressure point ), 3.5 N±0.20N for key 14.0mm x 28.0mm (pressure point)
    Switch lifemore than 5 million of operations
    Touch padsealed and ruggedized tough touchpad
    Touchpad coverComposite
    More than Lifetime 10 million strokes
    Mutual capacitance sensing
    X/Y axis location detection resolution40 Counts /mm
    X/Y position reportrelative
    Output (self-detectable depending on cable)PS2 or USB
    Tracking speedMaximum 1,016 m/sec
    Front Plate:1.5mm thickness super quality brushed stainless steel with black titanium surface treatment
    Back Plate:1.5mm thickness super quality brushed stainless steel
    G.W.2.0KG
    MARINE KEYBOARD ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating50mA (with backlight off) ,300mA (with backlight on)
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialCarbon-on-Gold key switch technology with gold PCB
    InterfacePS2, USB available
    Cable lenghStandard 2.0m, customized length available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Operating RH100%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection LevelIP65 dynamic
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
