    Vandal Proof Industrial Keyboard With Built In Trackball 76 Keys Marine Keyboard

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M380-OTB-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Vandal Proof Industrial Keyboard With Built In Trackball 76 Keys Marine Keyboard

    76 keys IP65 waterproof vandal proof stainless steel industrial keyboard with 38mm trackball


    DESCRIPTION: 76 keys IP65 dynamic vandal proof industrial and military keyboard with individual durable and robust polymer keys. With IP68 dynamic washable 38.0mm Stainless steel optical trackball module with +800DPI high resolutions for fast and accurate cursor position, robust Silver harden resin optical trackball optional. Industrial PCB with carbon-on-gold key switch technology with key stroke(1.20mm±0.10mm) with extremely good tactile feeling for fast and accurate input without any noise, Stainless steel rear plate and sealing gasket with mounting holes for real panel mounting. FN + CLEAN key to lock/disable the keyboard for easy cleaning without taking away the keyboard from PC, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

    Dimensions: 369.0mm x 108.0mm (front panel)


    RUGGED KEYBOARD MECHANICAL DATA
    Keys76 keys(Including 3 mouse buttons), durable and robust polymer keys
    Keys travel1.20mm±0.10mm
    Keys Size14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 68.0mm for space bar
    Actuation Force2.0±0.2N for key 14.0mm x 14.0mm (pressure point ), 3.5±0.2N for key 14.0mm x 28.0mm (pressure point)
    Switch lifemore than 5 million of operations
    Front Plate1.5mm super quality stainless steel plate
    Back Plate1.5mm super quality stainless steel plate
    Track ball:IP68 dynamic washable 38.0mm Silver Harden Resin optical trackball module, Stainless steel optical trackball module optional
    G.W.1.7 KGS
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating100mA
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialCarbon-on-Gold key switch technology PCB
    InterfacePS2, USB available
    Cable lengthStandard length at 2.0M. Other cable length is available.
    OSAll Windows,Linux, Unix, Mac OSX,Vxworks,Android,(U-cos to be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Operating RH30-90%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    TRACKBALL KEYBOARD RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection LevelIP65 dynamic
    Vandal resistantIK09
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

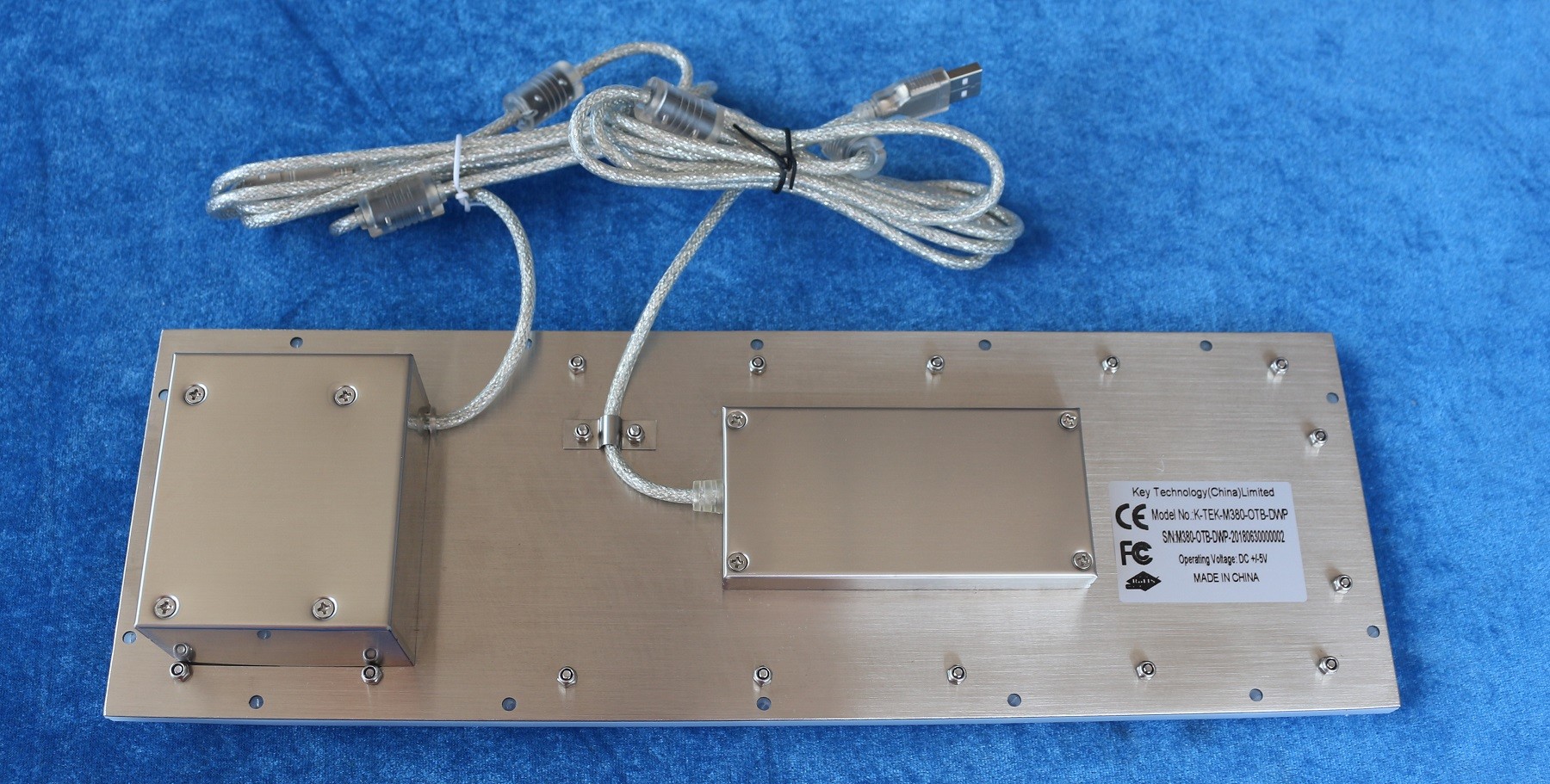

    Actual Photos:
