Brand Name : | IKB-MKB |
Model Number : | K-TEK-A343TP-BL-DWP |
Certification : | CE, FCC, ROHS, IP65, IP68, ISO 9001-2015 |
Price : | To be quoted |
Payment Terms : | Full payment in advance, Western Union, T/T, Paypal |
Supply Ability : | 3000psc/month |
Delivery Time : | ASAP Within 2 weeks upon payment confirmed |
IP67 Stainless Steel Kiosk Industrial Keyboard With Touchpad
DESCRIPTION:
68 keys compact format IP67 dynamic washable vandal proof stainless
steel industrial keyboard with IP65 dynamic sealed & ruggedized
tough touchpad with scroll function (optional)for fast and accurate
cursor position, industrial PCB with carbon-on-gold key switch
technology with long stroke (2.0mm) with extremely good tactile
feeling for fast and accurate data input without any noise. one
complete sealing silicone rubber above rear stainless steel plate
for easy mounting & sealing tightly with cabinet, rear stainless
steel plate with mounting holes for rear panel mounting solution.
Stainless steel key caps etched out via special professional way
and filled with transparent epoxy for backlight out, with
adjustable industrial backlight included.(Blue, Red, White colors
etc. optional). Which is good for outdoor application with direct
rain and very harsh environments with humidity, much dynamic water,
oil, dirt, salt mist etc.
DIMENSIONS: 348.0mm x 105.0mm (top panel)
MECHANICAL DATA | ELECTRICAL DATA |
Actuator/keys:68 keys, super quality SUS304 brushed stainless steel Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar. Key travel: 2.0mm Actuation Force: 1.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2N+/-0.1N for key 14.0mm x 28.0mm (pressure point) Switch life: more than 5 million of operations. Front Plate: 1.5mm thickness super quality brushed stainless steel Back Plate: 1.5mm thickness super quality brushed stainless steel Touchpad: sealed and ruggedized tough touchpad. Touchpad cover: Composite More than Lifetime 10 million strokes Mutual Capacitance sensing X/Y position sensing resolution: 40 counts/mm X/Y position reporting: Relative Output (self-detectable depending on cable): PS2 or USB Tracking speed: Maximum 1,016 m/sec Power supply voltage: 5 VDC ±0.25V Current rating (active mode): 17 mA G.W.: 1.80KGs Dimensions: 348.0mm x 105.0mm (top panel) | Supply Voltage: +5V DC +/-5% Current Rating: appr. 300mA EMC Standard: EN 55032:2015, EN 55035:2017 Lifespan > 5 years Switch Contact Material: Carbon-on-Gold key switch technology PCB. Interface: PS2, USB available, OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature: -20℃ to +60℃ Storage temperature: -30℃ to +70℃ Operating RH: 30-90% Atmospheric pressure: 60-106Kpa. Saline mist: 96 hours, IEC 60512-6 Damp heat test at + 40℃: 21 days, IEC 60512-6 Dry heat test at + 85℃: 10 days, IEC 60512-6 | |
RELIABILITY | |
RoHS Compliant, CE and FCC, ESD Protection Level: IP67(front panel) Vandal resistant IK09 Key Lifespan > 5 million actuations MTBF >20000H MTTR <30min | |
MAIN FEATURE
The keyboard can be dynamic washable with water and other liquids,
it can work well even under direct water pouring On the keyboard.
The full keyboard can be locked/disabled via FN + Clean combination
keys for easy cleaning without needing to take the keyboard away
from PC.
Imposing stainless steel design, specially designed keyboards meet
the highest demands with regard to design, functionality, longevity
and high protection level.
Stainless steel fascia and key-tops guard willful destruction,
vandal-proof, against corrosion, weather-proof especially under
extreme climatic conditions, water proof/dirt proof, operation
under hostile environments.
Waterproof execution according to IP67 protection from top panel,
top stainless steel plate with threaded bolts for easy tightly
mounting to enclosure or panel.
An excellent tactile feel with full-long travel switches and allow
users to achieve fast and accurate data input without any noise.
With firm tactile perception for comfortable operation
Internet friendly key layout, key-tops are laser-etched in legends
and characters for easy readability, long life to prevent lettering
rub-off.
Metal keys are protected against twisting and levering which can
not be dislodged from front, or defaced removing key covers.
Ease of customizing with multiple languages, to accommodate foreign
or custom variants.
Complete electronic modules including controller in close
consultation with our customers are available.
PS/2, USB connection plug-and-play with PC via PC existing OS
driver, no needing of install separate driver.

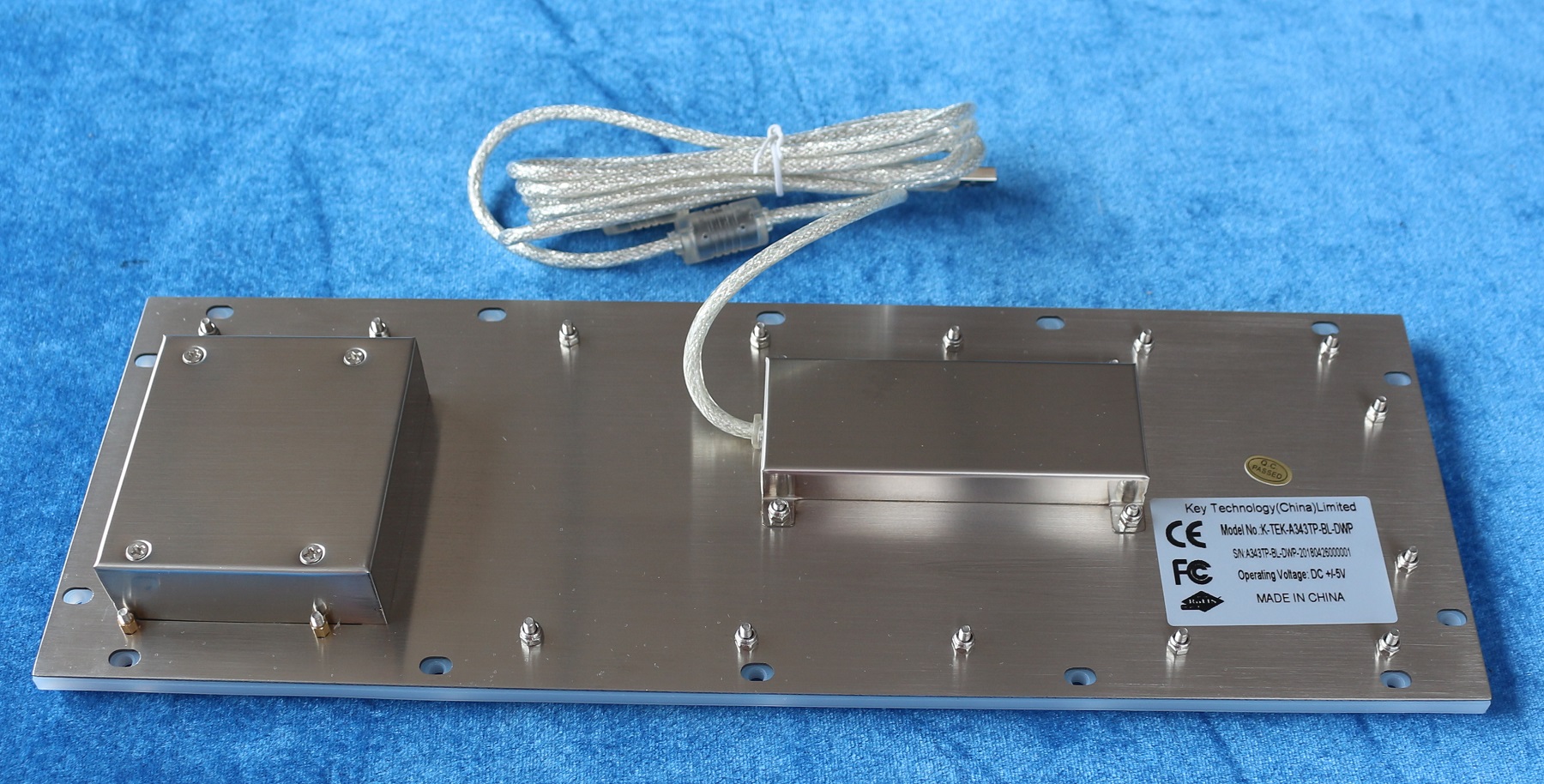

Product Pictures:
![]() |
