    Washable Kiosk Industrial Keyboard With Touchpad Integrated 83 Keys IP67 5V DC

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B361TP-FN-BL-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Washable Kiosk Industrial Keyboard With Touchpad Integrated 83 Keys IP67 5V DC

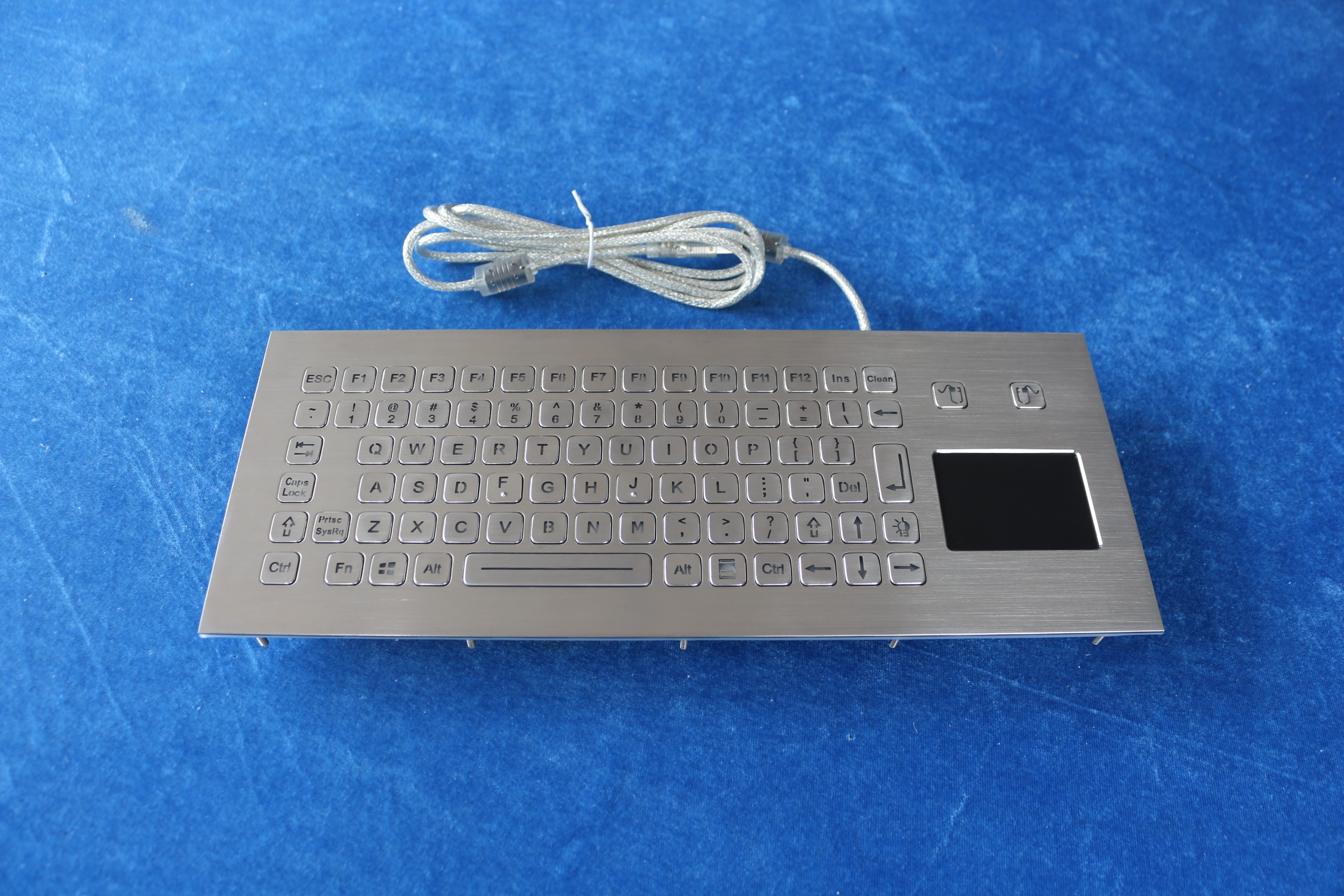

    83 Keys IP67 Washable Kiosk Keyboard with Integrated Touchpad


    DESCRIPTION:
    83 Keys Compact Format IP67 dynamic washable Vandal Proof Stainless Steel industrial Keyboard with IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, industrial metal PCB with gold-on-gold key switch technology with short stroke 0.45mm with extremely good tactile feeling for stable and accurate input without any noise, one complete silicone rubber along the underneath of stainless steel top plate for easy mounting & sealing tightly with cabinet, 2 mouse buttons designed for right & left clicking, function keys F1, F2..F10, F11, F12 are on the top panel for easy operation, stainless steel top plate with threaded bolts for top panel mounting solution.Stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with adjustable industrial backlight included. (Blue, Red, White colors etc. optional). Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.
    DIMENSIONS: 361.0mm x 145.0mm (front panel)


    MAIN FEATURE
    The keyboard can be dynamic washable with water and other liquids, it can work well even under direct water pouring on the keyboard.
    Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
    Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
    Waterproof execution according to IP67 protection from top panel, top stainless steel plate with threaded bolts for easy tightly mounting to enclosure or panel.
    An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input without any noise. With firm tactile perception for comfortable operation
    Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
    Ease of customizing with multiple languages, to accommodate foreign or custom variants.
    Complete electronic modules including controller in close consultation with our customers are available.
    PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.


    MECHANICAL DATAELECTRICAL DATA
    Actuator/keys: 83 keys, super quality SUS304 brushed stainless steel
    Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
    Key travel: 0.45mm
    Actuation Force: 3.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
    Switch life: more than 1 million of operations.
    Front Plate: 1.5mm thickness super quality brushed stainless steel
    Back Plate: 3.0mm thickness brushed & oxidized aluminium
    Touchpad: sealed and ruggedized tough touchpad.
    Touchpad cover: Composite
    More than Lifetime 10 million strokes
    Mutual Capacitance sensing
    X/Y position sensing resolution: 40 counts/mm
    X/Y position reporting: Relative
    Output (self-detectable depending on cable): PS2 or USB
    Tracking speed: Maximum 1,016 m/sec
    Power supply voltage: 5 VDC ± 0.25V
    Current rating (active mode): 17 mA
    G.W.: 1.60KGs
    Dimensions: 361.0mm x 145.0mm (front panel)
    Supply Voltage: +5V DC +/-5%
    Current Rating:
    30mA for keyboard and touchpad without backlight.
    300mA for keyboard and touchpad with backlight on.
    EMC Standard: EN 55032:2015, EN 55035:2017
    Lifespan > 5 years
    Switch Contact Material: Gold-on-Gold key switch technology PCB.
    Interface: PS2, USB available.
    OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

    ENVIRONMENTAL ADAPTABILITY
    Operating temperature:-20to +60
    Storage temperature: -30to +70
    Operating RH: 30-90%
    Atmospheric pressure: 60-106Kpa.
    Saline mist: 96 hours, IEC 60512-6
    Damp heat test at + 40
    : 21 days, IEC 60512-6
    Dry heat test at + 85
    : 10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection Level: IP67
    Vandal resistant IK09
    Key Lifespan >1 million actuations
    MTBF >20000H
    MTTR <30min
