91 Keys IP68 Plastic Backlit Optical Axis Mechanical Keyboard with Touchpad

Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 91 Keys IP68 Plastic Backlit Optical Axis Mechanical Keyboard with Touchpad from wholesalers

    Buy cheap 91 Keys IP68 Plastic Backlit Optical Axis Mechanical Keyboard with Touchpad from wholesalers
    • Buy cheap 91 Keys IP68 Plastic Backlit Optical Axis Mechanical Keyboard with Touchpad from wholesalers
    • Buy cheap 91 Keys IP68 Plastic Backlit Optical Axis Mechanical Keyboard with Touchpad from wholesalers

    91 Keys IP68 Plastic Backlit Optical Axis Mechanical Keyboard with Touchpad

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-V295TP-FN-BL-FDT-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    91 Keys IP68 Plastic Backlit Optical Axis Mechanical Keyboard with Touchpad

    91 Keys IP68 Plastic Backlit Optical Axis Mechanical Keyboard with Touchpad


    DESCRIPTION:

    91 keys IP68 dynamic sealed & ruggedized plastic keyboard with full keyboard functionalities with sealed & ruggedized tough touchpad for fast and accurate cursor position, 12 FN keys are on the top line for easy operation, with automative chip for high and low operation temperature compatibility, optical axis key switch technology with long stroke (4.5mm) with long life-span with extremely good tactile feeling for fast and accurate data input without any noise, FN + CLEAN key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, mountable super flat desk top version with robust ABS polycarbonate case with VESA mounting holes on the back of the keyboard for easy mounting in the vehicle. With 2 mounting slot on the top and down side of the keyboard for easy rack-mounting.

    DIMENSIONS: 295.4.mm x 198.00mm x 25.0mm (L x W x H)


    MECHANICAL DATAELECTRICAL DATA

    Key: 91 keys
    Key top style: Protuberant rectangular keys with tactile feeling.
    Touchpad cover: Composite
    More than Lifetime 10 million strokes
    Mutual Capacitance sensing
    X/Y position sensing resolution: 40 counts/mm
    X/Y position reporting: Relative
    Output (self-detectable depending on cable): PS2 or USB
    Tracking speed: Maximum 1,016 m/sec
    Power supply voltage: 5 VDC ± 0.25V
    Current rating (active mode): 17 mA
    Key Size: 18.0mm x 18.0mm for normal keys, 27.5mm x 18.0mm for enter key, 37.0mm x 18.0mm for space bar key.

    Actuation Force: Square key: 0.5N+/-0.1N Rectangular key: 0.8N+/-0.1N
    G.W.: 2.00KGs
    Dimensions: 295.4.mm x 198.00mm x 25.0mm

    Supply Voltage: +5V DC +/-5%
    Current Rating: 50mA(backlight off), 300mA(backlight on)
    EMC Standard: EN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact Material: Optical axis key switch technology.
    Interface: PS2, USB available.
    Cable lengh: Standard 2.0m, customized length available.
    OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITYRELIABILITY
    Operating temperature:-20℃ to +60℃
    Storage temperature: :-30℃ to +70℃
    Saline mist:96h, IEC60512-6
    Damp heat test at +40℃: 21 days, IEC 60512-6
    Dry heat test at +85℃: 10 days, IEC 60512-6
    Operating RH: 100%
    Atmospheric pressure: 60-106Kpa
    Shock: 3x11 ms pulses of 50g on each of 3 axes
    Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
    RoHS , CE, FCC
    Protection Level: IP68
    Key Lifespan >10 million actuations
    MTBF >20000H
    MTTR <30min

    MAIN FEATURES:

    • FN+Clean key Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime-User is notified of ‘lock down mode’ by brightly lit FN+CLEAN keys
    • With light tactile key feel just like office keyboard’s key-tactile feeling, key travel 4.5mm key travel.
    • Integrated touchpad.
    • Ease of customizing with multiple languages, to accommodate foreign or custom variants.
    • PS/2, USB connection cables that plug directly into computer like keyboard operations.
    • Enclosure: Robust ABS Polycarbonate Case
    • Low-profile keys for easy cleaning

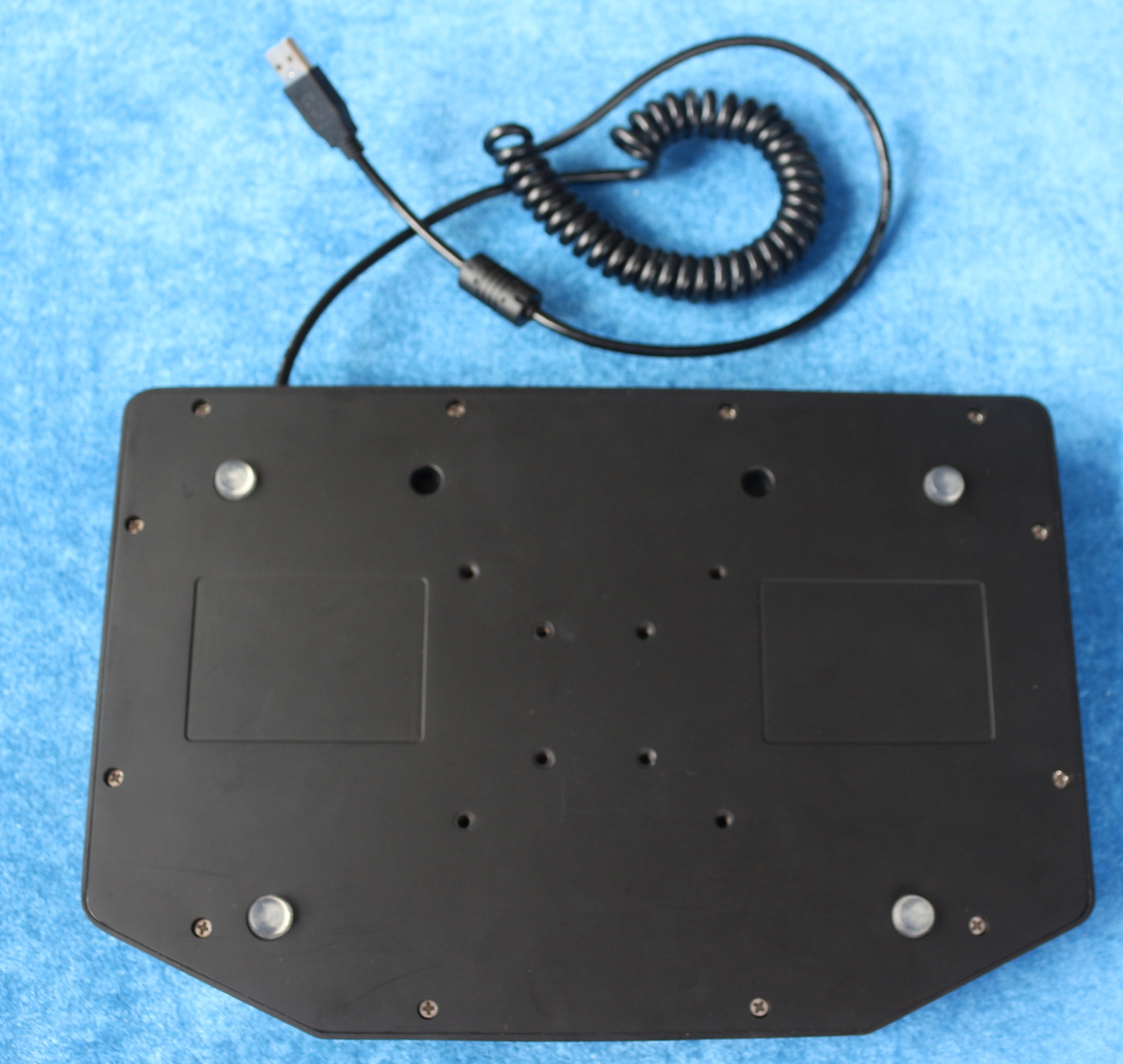

    Actual Photo:


    Quality 91 Keys IP68 Plastic Backlit Optical Axis Mechanical Keyboard with Touchpad for sale
