    Brushed Black Titanium Industrial Keyboard Customized Metal Koisk Keyboard

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A272-BT-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Brushed Black Titanium Industrial Keyboard Customized Metal Koisk Keyboard


    Brushed Black Titanium Industrial Keyboard Customized Metal Koisk Keyboard

    DESCRIPTION: 68 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard with industrial PCB with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate input without any noise. High quality durable black titanium electroplated on the top stainless steel plate and all keys included, rear panel mounting solution. FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning without error output. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.

    DIMENSIONS: 272.0mm x 105.0mm (front panel)


    MECHANICAL DATA
    Actuator/keys68 keys
    Key top styleProtuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
    Key travel1.50±0.10mm
    Actuation Force1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point)
    Front Plate1.5mm thickness super quality brushed stainless steel, with durable black titanium electroplated on the top stainless steel plate
    Back Plate3.0mm thickness brushed & oxidized aluminium
    Switch lifemore than 5 million of operations
    G.W.1.50KGs
    ELECTRICAL DATA
    Supply Voltage+5V DC ± 5%
    Current Rating30mA
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialCarbon-on-Gold key switch technology PCB
    InterfacePS2, USB available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Operating RH30-90%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection LevelIP65 dynamic (front panel)
    Vandal resistantIK08
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSIndustrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

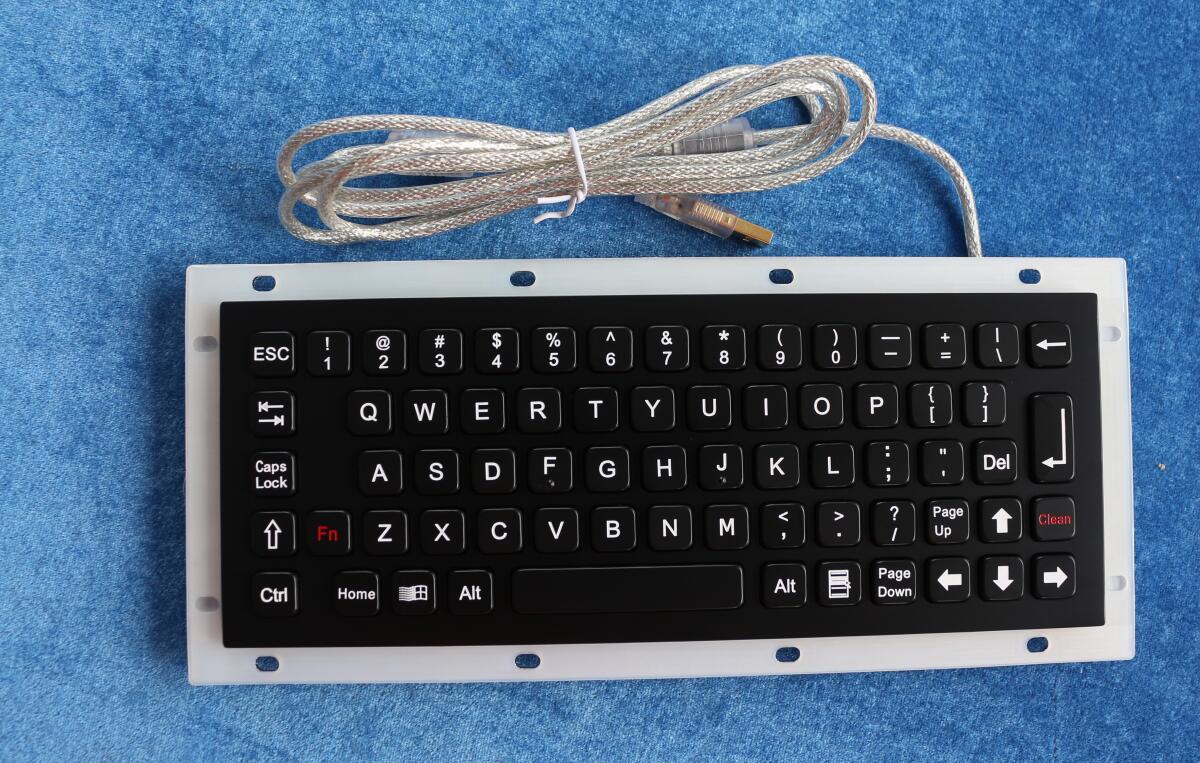

    Black Metal Keyboard Actual Photos:
