    Black Industrial Customized Stainless Steel Keyboard With Trackball 86 Keys

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A361-OTB-FN-BT-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Black Industrial Customized Stainless Steel Keyboard With Trackball 86 Keys

    Black Industrial Customized Stainless Steel Panel Mount Keyboard with Trackball


    DESCRIPTION:

    86 keys compact format IP67 dynamic vandal proof stainless steel industrial keyboard with IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with 800 DPI resolutions for fast and accurate cursor position with extremely smooth operation, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, high quality durable black titanium electroplated on the top stainless steel plate, stainless steel top plate with threaded bolts for top panel mounting solution. IP68 washable trackball module with direct drain pipe is optional, no rust risk and anti-salt spray corrosion.


    DIMENSIONS: 361.0mm x 145.0mm (top panel)


    We provide customized service ,more details please click"Contact Now ",we are

    online and will reply you ASAP !

    our working time :8:30 am -18:00 pm, from monday to friday (BeiJing Time )


    MECHANICAL DATA:

    • Actuator/keys: 83 keys, super quality SUS304 brushed stainless steel
    • Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised Braille on keys are available
    • Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
    • Key travel: 2.0mm
    • Actuation Force: 1.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
    • Front Plate: 1.5mm thickness super quality brushed stainless steel
    • Back Plate:3.0mm thickness brushed & oxidized aluminum
    • Tracker ball: 38.1mm (1.5’’) diameter, IP68 dynamic washable 800DPI optical trackball
    • G.W.:2.0KGs
    • Dimensions:361.0mm x 145.0mm (front panel) , 343.0mm x 125.0mm (back panel)

    ELECTRICAL DATA:

    • Supply Voltage: +5V DC +/-5%
    • Current Rating: 100mA
    • EMC Standard: EN 55032:2015, EN 55035:2017
    • Lifespan > 5 years
    • Switch Contact Material: Carbon-on-Gold key switch technology PCB.
    • Interface: PS2, USB available
    • OS: All windows, Linux, Unix, Mac OSX

    ENVIRONMENTAL ADAPTABILITY:

    • Operating temperature:-20oC to +60oC
    • Storage temperature: -30oC to +70oC
    • Operating RH: 30-90%
    • Atmospheric pressure: 60-106Kpa.
    • Saline mist: 96 hours, IEC 60512-6
    • Damp heat test at + 40oC: 21 days, IEC 60512-6
    • Dry heat test at + 85oC: 10 days, IEC 60512-6

    RELIABILITY:

    • RoHS Compliant, CE and FCC, ESD
    • Protection Level: IP67(front panel)
    • Vandal resistant IK08
    • Key Lifespan >5 million actuations
    • MTBF >20000H
    • MTTR <30min

    Mechanical Drawing:

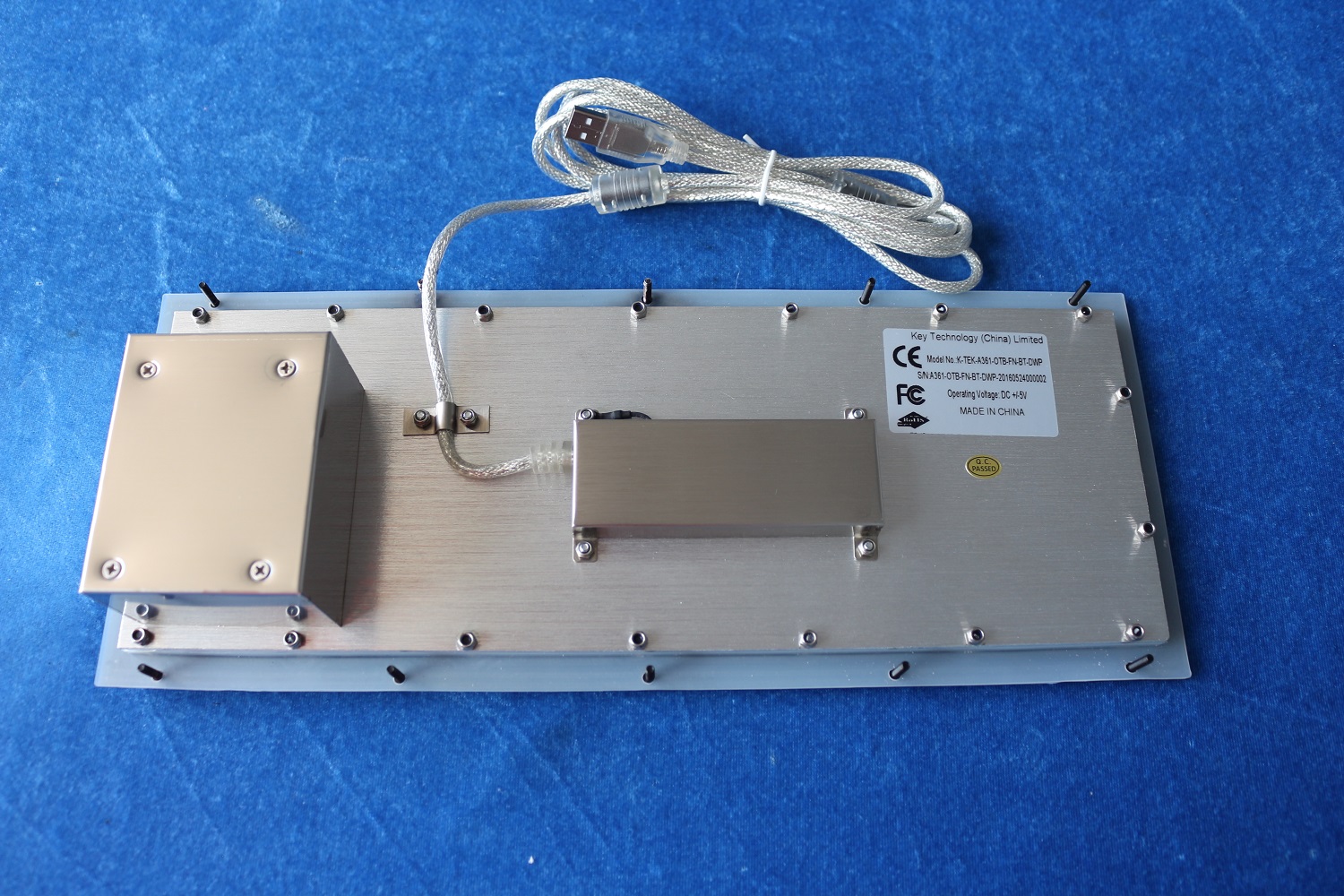

    Product Pictures:

    Black Industrial Customized Stainless Steel Keyboard With Trackball 86 Keys
