    71 Keys IP67 Industrial Keyboard With Trackball Black Metal Panel Mount Stainless Steel

    71 Keys IP67 Rated Black Metal Panel Mount Keyboard with Trackball


    DESCRIPTION:

    MINI 71 keys IP67 compact format vandal proof stainless steel industrial keyboard with IP68 dynamic rated washable 25mm stainless steel optical trackball module with 800 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling,industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input,high quality durable black titanium electroplated on the top stainless steel plate included, rear panel mounting.

    Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

    DIMENSIONS: 255.0mm x 90.0mm (front panel)


    We provide customized service ,more details please click"Contact Now ",we are

    online and will reply you ASAP !

    our working time :8:30 am -18:00 pm, from monday to friday (BeiJing Time )


    MECHANICAL DATAELECTRICAL DATA
    Actuator/keys: 71 keys, 2.0mm thickness super quality SUS304 brushed stainless steel flat key.
    Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are
    available
    Key Size: 10.0mm x 10.0mm for normal keys, 10.0mm x 20.0mm for enter key, 10.0mm x 75.0mm for space bar.
    Key travel: 0.45mm
    Actuation Force: 3.2N+/-0.1N for key 10.0mm x 10.0mm (pressure point), 4N+/-0.1N for key 10.0mm x 20.0mm (pressure point)
    Front Plate: 1.5mm thickness super quality brushed stainless steel
    Back Plate:1.2mm thickness super quality brushed stainless steel
    Tracker ball: 25.1mm (1.0’’) diameter, IP68 dynamic washable optical Trackball module with 800 DPI.
    G.W. 1.00KGs
    Dimensions: 255.0mm x 90.0mm (front panel), 273.0mm x 108.0mm (back panel)
    Supply Voltage: +5V DC +/-5%
    Current Rating: 100mA
    EMC Standard: EN 55032:2015, EN 55035:2017
    Lifespan > 5 years
    Switch Contact Material: metal dome PCB with Gold-on-Gold key switch technology
    Interface: PS2, USB available.
    OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

    ENVIRONMENTAL ADAPTABILITY
    Operating temperature:-20oC to +60oC
    Storage temperature: -30oC to +70oC
    Operating RH: 30-90%
    Atmospheric pressure: 60-106Kpa.
    Saline mist: 96 hours, IEC 60512-6
    Damp heat test at + 40oC: 21 days, IEC 60512-6
    Dry heat test at + 85oC: 10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection Level: IP67 (front panel)
    Vandal resistant: IK09
    Key Lifespan >1 million actuations
    MTBF >20000H
    MTTR <30min

    Product Pictures:

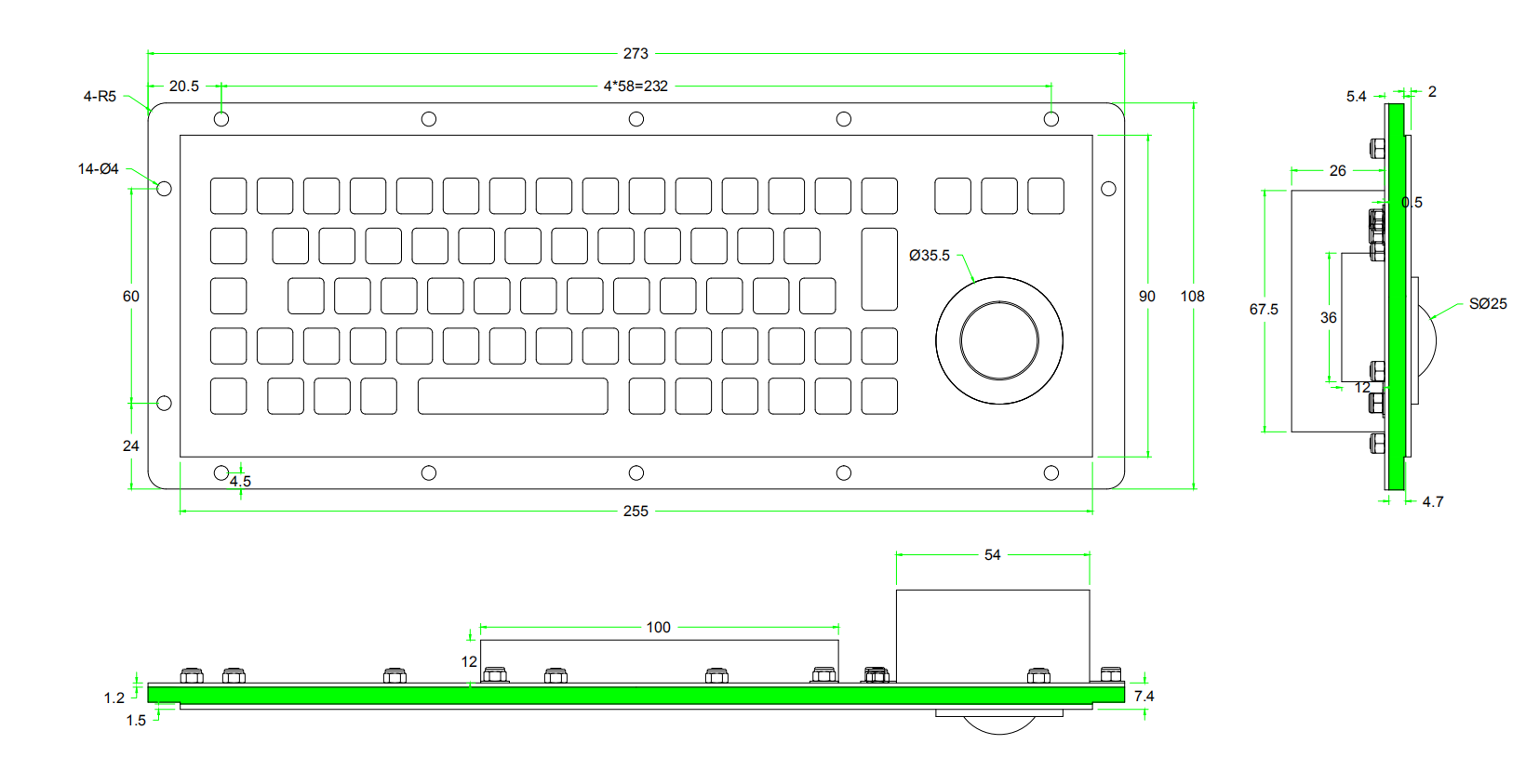

    Mechanical Drawing:
