    IP65 82 Keys Embedded Milk Proof Metal Kiosk Keyboard Optical Trackball For Outdoor

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A420-MTB-KP-FN
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    • Product Details
    • Company Profile

    IP65 82 Keys Embedded Milk Proof Metal Kiosk Keyboard Optical Trackball For Outdoor

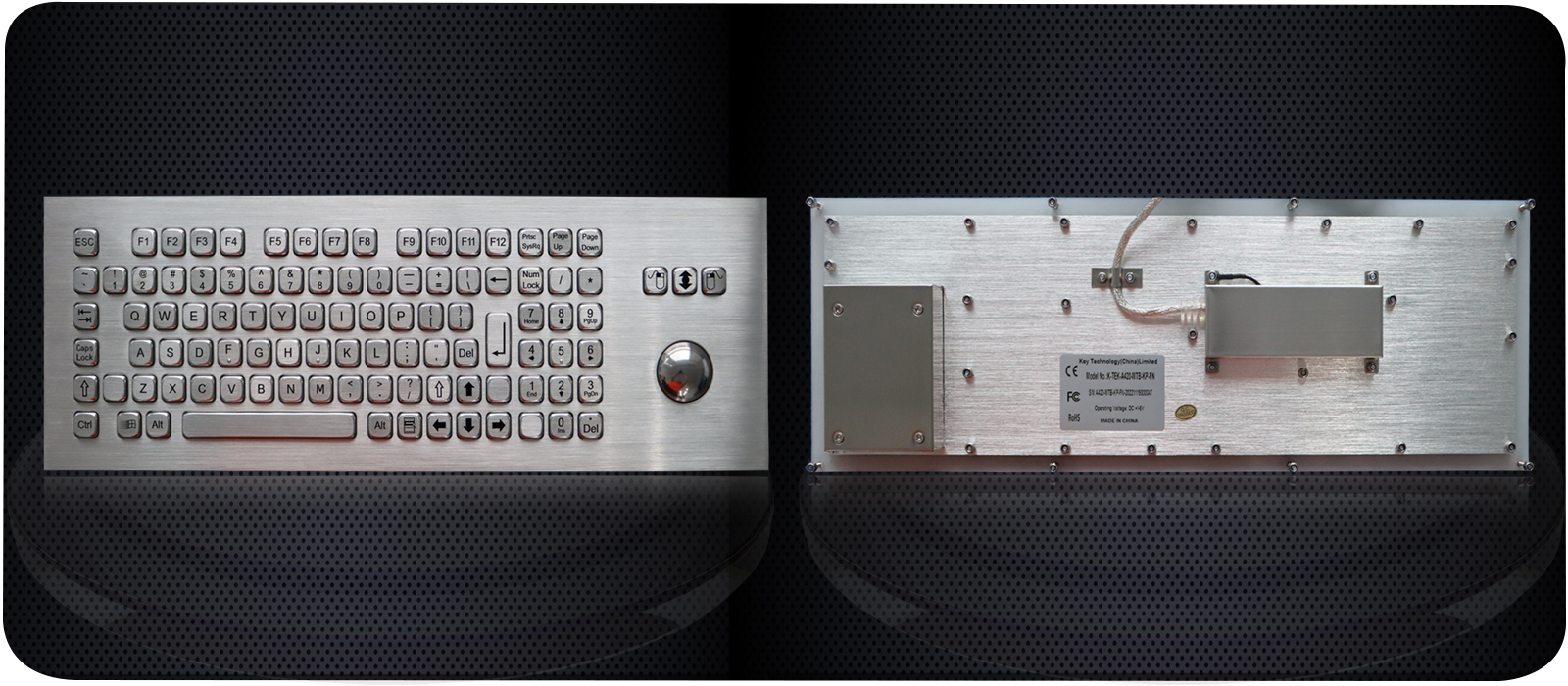

    IP65 82 keys embedded milk proof metal kiosk keyboard with optical trackball for outdoor
    DESCRIPTION: 100 Keys Compact Format IP65 static Vandal Proof Stainless Steel industrial Keyboard with full keyboard functionalities, with IP65 static 38.0mm stainless steel mechanical trackball module with 400 DPI resolutions, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, numeric keypad, function keys F1, F2..F10, F11, F12 are on the top line for easy operation, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, one complete silicone rubber under the top stainless steel plate for easy mounting & sealing tightly with cabinet, stainless steel top plate with threaded bolts for top panel mounting solution.

    DIMENSIONS: 420.0mm x 145.0mm (top panel)



    MECHANICAL DATA
    Actuator/keys100 keys (including 3 mouse buttons)
    Key top styleProtuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar
    Key travel1.50±0.10mm
    Actuation Force3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)
    Switch lifemore than 5 million of operations
    Trackball38.0mm (1.5’) diameter, IP65 static 400DPI mechanical trackball module
    G.W.2.50KGs
    ELECTRICAL DATA
    Supply Voltage+5V DC ± 5%
    Current Rating50mA
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialCarbon-on-Gold key switch technology PCB
    InterfacePS2, USB available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Operating RH30-90%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection LevelIP65
    Vandal resistantIK08
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSIndustrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
