Mini Size Ruggedized Keyboard with Fn keys and trackball with rear panel mounting

DESCRIPTION:

MINI 102 Keys IP65 static Compact Format Vandal Proof Stainless Steel Full functionalities industrial keyboard with IP68 dynamic rated washable 25mm stainless steel optical trackball module with 800 DPI resolutions for fast and accurate position with extremely smooth operation,industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, numeric keypad, function keys F1, F2..F10, F11, F12 are on the top panel for easy operation, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, with rear panel mounting solution .

DIMENSION: 312.0mm x 105.0mm (L x W)

APPLICATION

• This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

MAIN FEATURE

• IP68 dynamic washable optical trackball module with 800 DPI can be good for outdoor and harsh applications, which can be mounted horizontally, and vertically, no metal bearings inside, operation is very smooth and easy without any noise.
• Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
• Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
• Waterproof execution according to IP65 protection from top panel, top stainless steel plate with flat keyboard surface for easy cleaning & rear aluminium plate with mounting holes for tightly fixing to enclosure or panel.
• An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm tactile perception for comfortable operation
• Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
• Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
• Ease of customizing with multiple languages, to accommodate foreign or custom variants.
• Complete electronic modules including controller in close consultation with our customers are available.
• PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.

MECHANICAL DATA:

ENVIRONMENTAL ADAPTABILITY:

• Operating temperature:-20^oC to +60^oC
• Storage temperature: -30^oC to +70^oC
• Operating RH: 30-90%
• Atmospheric pressure: 60-106Kpa.
• Saline mist: 96 hours, IEC 60512-6
• Damp heat test at + 40^oC: 21 days, IEC 60512-6
• Dry heat test at + 85^oC: 10 days, IEC 60512-6

RELIABILITY:

• RoHS Compliant, CE and FCC, ESD
• Protection Level: IP65(front panel)
• Vandal resistant IK10
• Key Lifespan >5 million actuations
• MTBF >50000H
• MTTR <30min

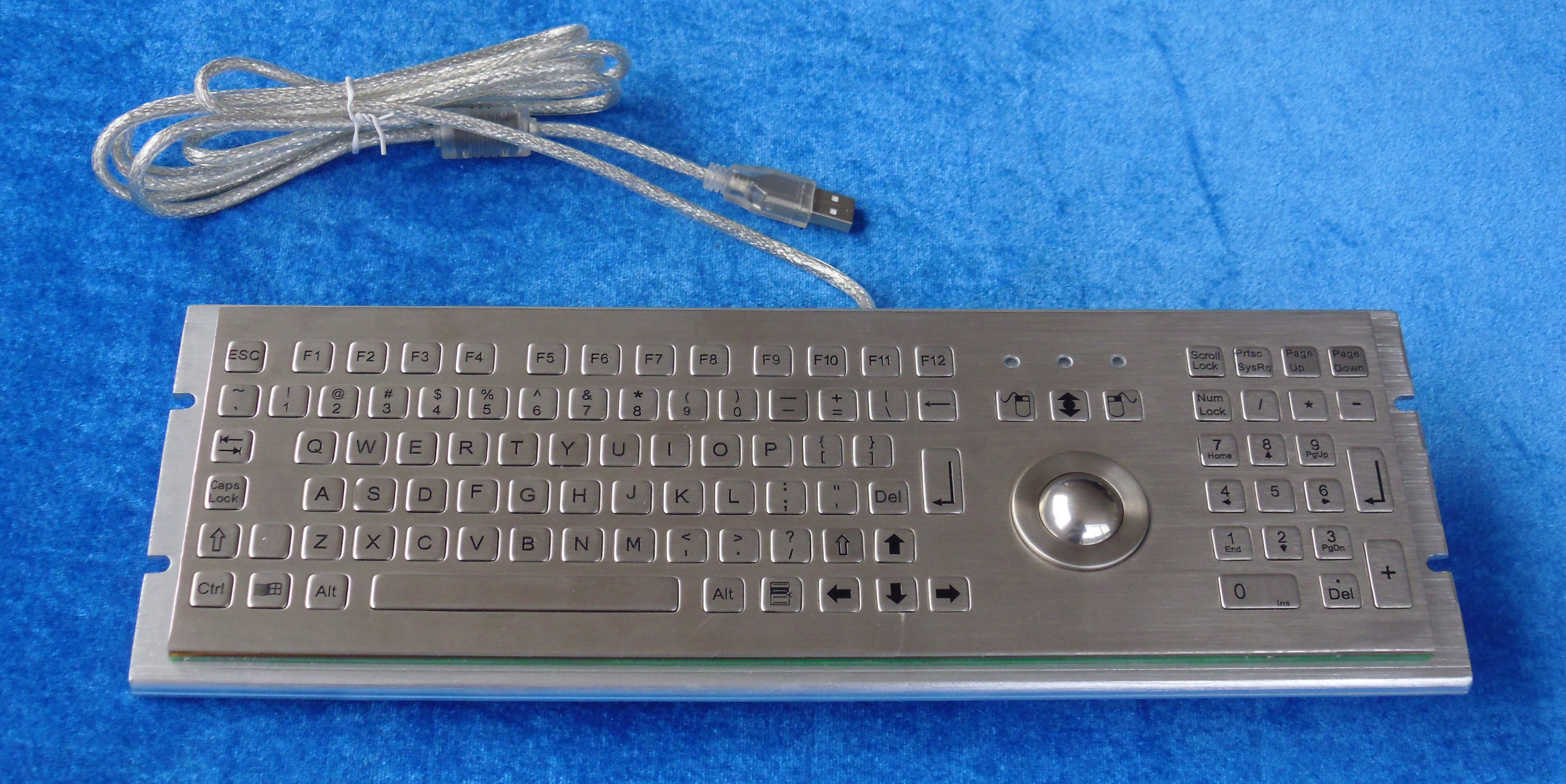

Actual Pictures:

About Us:

Key Technology was established in 2006, which is a company specializing in providing vandal proof waterproof IP65/IP66/IP67/IP68 industrial/medical/marine/vehicle/rugged computer keyboard/keypad/trackball/touchpad Etc.

Key Technology China Limited’s customers include Finance, Aerospace, Chemicals/Petro, Food & Beverage, Healthcare, Telecom/Media, High Technology, Transportation-Automotive, Manufacturing, Utilities & Resources, Pulp and Paper - Government/Defense, Universities and Academia, Museums/Public Displays and Miscellaneous industries.

Active, positive, and team spirit is a special attribute of the people in Key Technology China Limited. The principle of business is based on Righteousness, Integrity, Diligence and Thrift, which stands as our guideline of conduct in the future. By doing so, Key Technology China Limited is moving towards a global technology firm with an optimistic and long future.

Durable Design:
-Ideal for applications in the harshest conditions.

-Our products meet NEMA 4, 4X and IP 65 and IP68 specifications, making them vandal proof, resistant to dust, dirt, water and corrosive liquids.

--Designs that exceed requirements for ISO certification to ensure quality control among manufacturing standards.

-Indestructible Industrial Keyboards and Pointing Devices are long lasting and stand up in harsh environments where your typical office grade peripherals will not survive.

-An ability to withstand extreme temperatures that permits function in freezers, heat-sensitive areas, and other severe environments.

-All the input devices are plug-and-play compatible with Windows operating systems, MAC OS9/OSX and require no special drivers.

--Any language layouts are available to accommodate international customers.
-Customizable function keys that provide flexibility for specialized applications.

-Low-profile keys that allow for efficient cleaning, reduced disinfection time and protection against cross contamination.
-Backlit keys that allow employees to optimize performance while working in low-light environments.
-Polycarbonate and stainless steel cases available to meet custom preferences.
-Small footprint designs that increase mobility.

-Standard mounting patterns that fit most keyboard mounts for easy integration into existing systems.
-More specialized features that cater to our kiosk/ATM, medical, military, emergency response, industrial and material-handling end users.
