Brand Name : | IKB-MKB |
Model Number : | K-TEK-B83-38-OTB-DWP |
Certification : | CE, FCC, ROHS, IP65, IP68, ISO 9001-2015 |
Price : | USD |
Payment Terms : | Full payment in advance, Western Union, T/T, Paypal |
Supply Ability : | 3000psc/month |
Delivery Time : | ASAP Within 2 weeks upon payment confirmed |
Waterproof Stainless Steel Optical Trackball Pointing Device Ruggedized Stainless Buttons
DESCRIPTION: IP67 dynamic rated vandal proof stainless steel optical trackball
with IP65 dynamic sealed &ruggedized stainless mouse buttons
and IP68 dynamic rated washable 38.0mm stainless steel optical
trackball module with +800 DPI resolutions for fast and accurate
fixing cursor position with extreme smooth operation without any
noise,optical trackball module protected and shielded by stainless
steel housing, 3 sealed stainless steel mouse buttons designed for
right & left clicking and scrolling up and down with ball
rolling,with rear panel mounting solution.one complete silicone
rubber alone the rear stainless steel plate for easy mounting &
sealing tightly with cabinet. Which is good for outdoor application
with direct rain and very harsh environments with humidity, much
dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt
spray corrosion.
DIMENSIONS: 83.0mm x 110.0mm (front panel)
MAIN FEATURE:
TECHNICAL SPECIFICATION:
ITEM | SPECIFICATION | |
Mechanical | Key | 2 or 3 keys, quality brushed stainless steel buttons |
Key top style | round sealed stainless steel buttons with tactile feeling | |
Front Plate | Quality brushed stainless steel | |
Key Travel | 1.00 mm | |
Ball diameter | 38.1mm/1.50' (16mm, 19mm, 25mm also available) | |
Key switch lifespan | more than 10 Mio actuations | |
Track ball lifespan | > 10 Mio revolutions | |
Back Metal Cover | Rear side integrated electronics protected by a metal cover | |
Actuation Force | 1.0 N to 3.0 N | |
Mounting Rack | Aluminum alloy | |
Dimension | Dimensions with 38.0mm track ball, Front plate (W x H): 83.0 x 110.0mm Overall (W x H x D): 107.0 x 134.0 x 40.7mm | |
Interface | PS2, USB are available, Y type cable with ports of PS2 and USB | |
Electrical | Power supply | 5V DC+ 10%, mouse interface |
Protection level | IP65 dynamic (front panel), NEMA3, IK10 | |
EMC Standard | EN55022(B) | |
Power consuming | ≤1.0W(dynamic) | |
≤0.2W(static) | ||
Contact Material | Stainless steel switch | |
Environmental | Operating temperature | -20°C-+ 60°C |
Storage temperature | - 30°C-+ 70°C | |
Operating RH | 30-90% | |
Atmospheric pressure | 60-106Kpa. | |
Reliable | Certificates | RoHS compliant, CE and FCC certified. IP65 front panel, ESD |
MTBF | >50000H | |
MTTR | < 30min | |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) | |
Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
Mechanical Drawing:

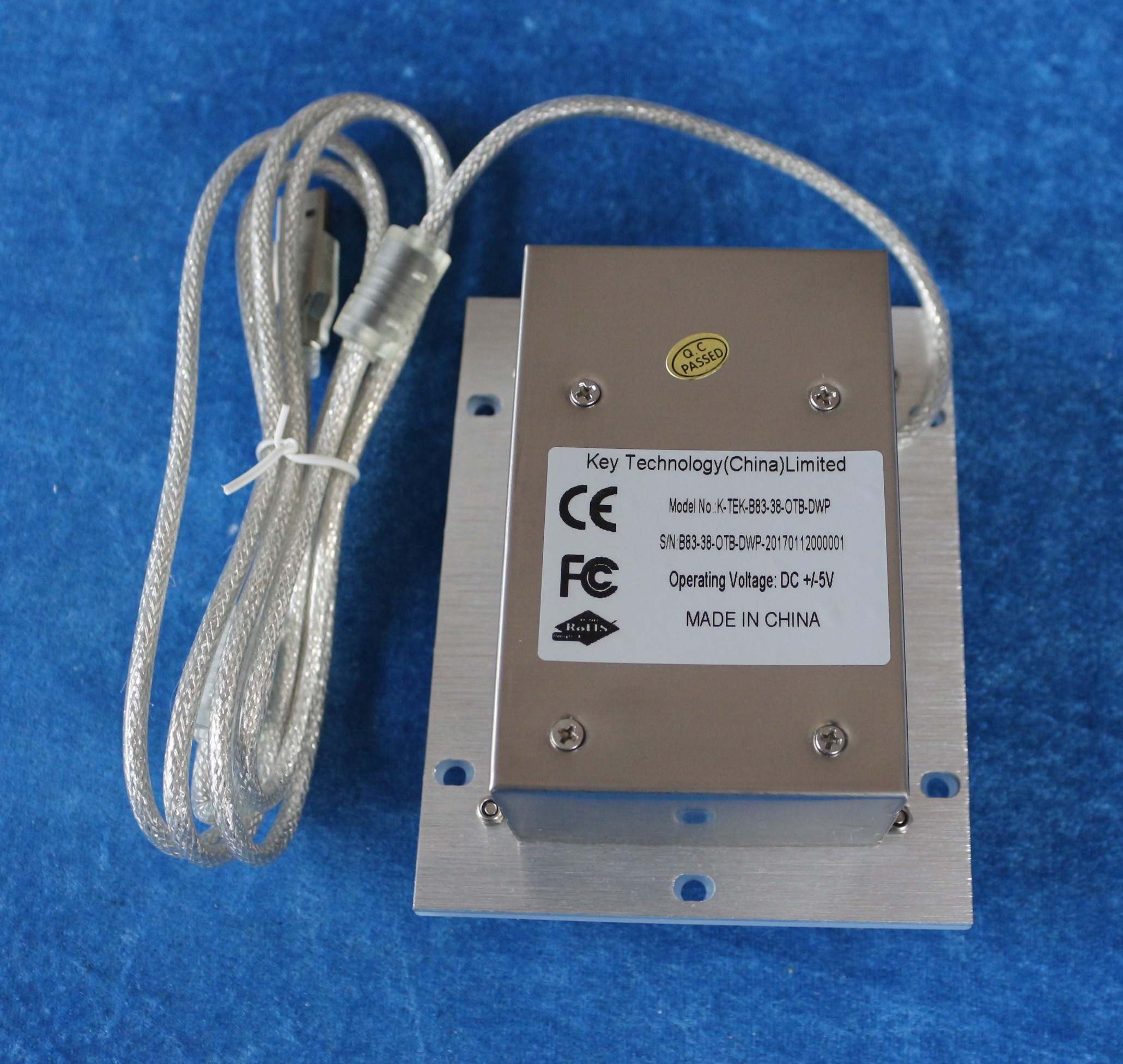

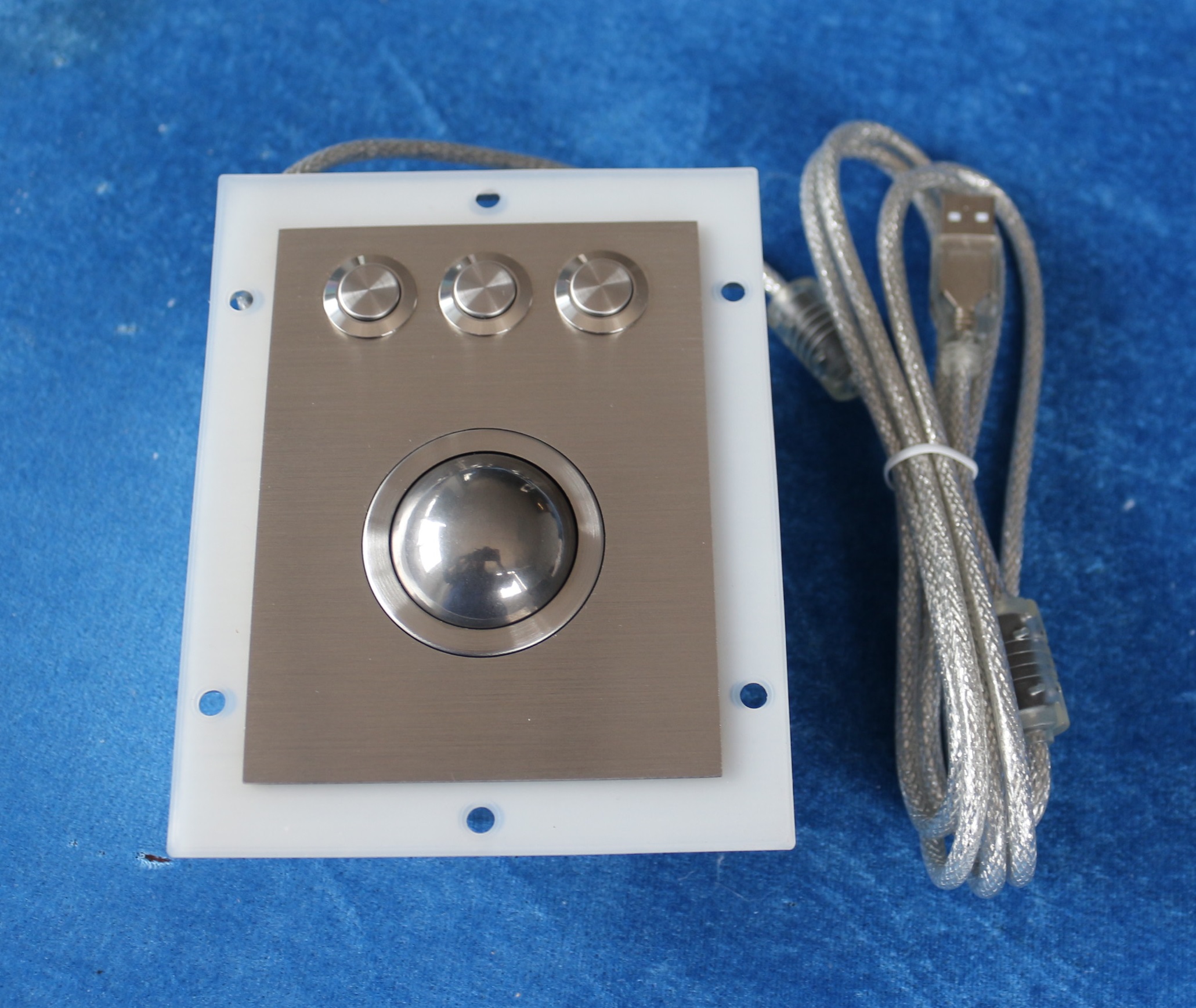

Actual Photos:
![]() |
