    Water Resistant Industrial Trackball Pointing Device With Top Panel Mounting

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M90-25-MTB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Water Resistant Industrial Trackball Pointing Device With Top Panel Mounting

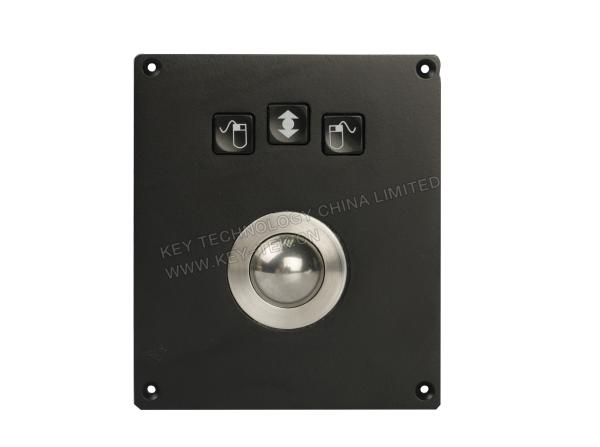

    IP65 waterproof industrial mechanical Trackball with top panel mounting


    ESCRIPTION: IP65 dynamic Vandal proof Red Phenolic Resin Mechnical Trackball moudle with +400 DPI resolutions, stainless steel housing protects the trackball module, high quality durable Black Electroplate Titanium included.rear stainless steel panel mounted with 3 sealed polymer mouse buttons designed for right & left clicking and scrolling up and down with ball rolling,with rear panel mounting solution.


    Main Features:

    1. IP65 explosion proof mini 25mm red phenolic resin trackball with 0.45mm short stroke.
    2. 25mm mechanical trackball with 400 DPI resolution for aviation
    3. No metal bearings inside, operation is very smooth, and easy without any noise.
    4. Trackball module protected and shielded by stainless steel housing

    5. All Metal Mechanicals provide for rugged, smooth, long lasting operation.
    6. Plug and play PS/2 interface for direct power supply
    7. Professional factory offer ensured quality product and direct after-sale service
    8. IP65 waterproof industrial mechanical Trackball with top panel mounting

    Technical Specifications:

    ITEM

    SPECIFICATION

    Mechanical

    Key

    3 keys, quality black polymer

    Key top style

    Non-protuberant rectangular Keys,

    Front Plate

    Quality black stainless steel

    Key Travel

    0.45mm

    Ball diameter

    25.4mm/1.0' (19mm, 25mm, 36mm 40mm, 50mm also available)

    Key switch lifespan

    more than 5 Mio actuations

    Track ball lifespan

    > 10 Mio revolutions

    Back Metal Cover

    Rear side integrated electronics protected by a metal cover

    Actuation Force

    1.0N to 3.0N

    Mounting Rack

    Stainless steel

    Dimension

    Dimensions with 25mm track ball, Front plate (W x H): 90.0 x 105.0mm, Overall (W x H x D): 90.0 x 105.0 x 23.0mm

    Interface

    PS2, USB are available, Y type cable with ports of PS2 and USB

    Electrical

    Power supply

    5V DC+ 10%, keyboard interface

    Protection level

    IP65 (dynamic), NEMA3

    EMC Standard

    EN55022(B)

    Power consuming

    ≤1.00W(dynamic)

    ≤0.2W(static)

    Contact Material

    Gold-on-Gold

    Environmental

    Operating temperature

    -20ºC~+ 60º C

    Storage temperature

    - 30ºC~+ 70ºC

    Operating RH

    30~90%

    Atmospheric pressure

    60~106Kpa.

    Reliable

    Certificates

    RoHS compliant, CE and FCC certified. ESD

    MTBF

    >50000h

    MTTR

    < 30min

    OS

    OS is under All windows, Linux, Unix, Mac OS9 / OSX

    Packing Details

    Each unit to a suitable brown box, suitable brown boxes to a standard export carton.
