    IP67 Balck Dynamic Waterproof Ruggedized Keyboard with Touchpad for Industrial Military Application

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M360TP-KP-FN-BT-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : USD
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    • Product Details
    • Company Profile

    IP67 Balck Dynamic Waterproof Ruggedized Keyboard with Touchpad for Industrial Military Application

    IP67 Balck Dynamic Waterproof Ruggedized Keyboard with touchpad


    APPLICATION:

    This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines,oil & gas stations, cash machines (ATMs/CDM), Internet public phones etc.


    PRODUCTS DISCRIPTION:

    116 keys compact format IP67 dynamic water proof & vandal proof stainless steel industrial keyboard with individual durable and robust polymer keys with full keyboard functionalities, totally sealed and ruggedized industrial PCB with carbon-on-gold key switch technology with long stroke 1.50mm with extremely good tactile feeling for fast and accurate data input without any noise, function keys F1, F2, ...F23, F24 are on the top line for easy operation, individual numeric keypad integrated, with integrated IP65 sealed and ruggedized tough touchpad for fast and accurate cursor position, one complete silicone rubber alone the rear stainless steel plate for easy mounting & sealing tightly with cabinet. High quality scratch-proof durable black titanium electroplated on the top stainless steel plate, stainless steel back plate with holes for rear mounting solution, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc. Adjustable backlight included (RED, BLUE, WHITE etc.)
    Dimensions: 360.0mm x 144.0mm (front panel)

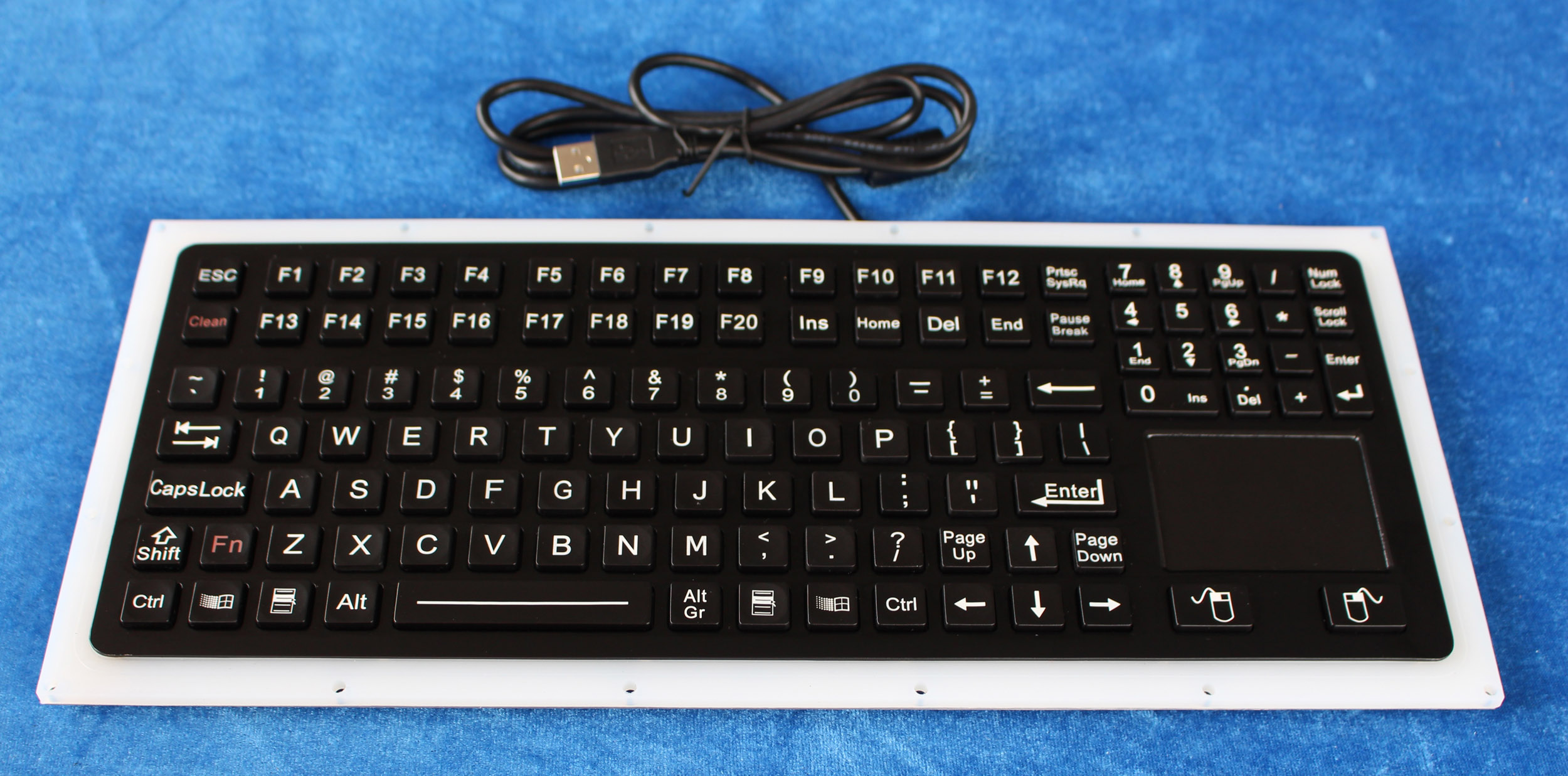

    Actual Photos:


    MECHANICAL DATA

    Actuator/keys116 keys, durable and robust polymer keys.
    Key top style:Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size:14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
    OS:All windows, Linux, Unix, Mac OSX
    Switch life:more than 10 million of operations.
    EMC Standard:It is compliance with the council IEC 61000-4-2:2008

    ELECTRICAL DATA:

    Supply Voltage

    +5V DC +/-5%

    Current Rating

    appr. 30mA

    EMC Standard

    It is compliance with the council IEC 61000-4-2:2008

    IEC 61000-4-3

    2006+AI:2007+A2:2010;IEC 61000-4-4:2004

    EMI

    EN 55022: 2010

    EMS

    EN 55024:2010

    Lifespan

    > 5 years

    Switch Contact Material

    Carbon-on-Gold key switch technology PCB

    Interface

    PS2, USB available

    OS

    All windows, Linux, Unix, Mac OSX

    ENVIRONMENTAL ADAPTABILITY:

    • Operating temperature:-20oC to +60oC
    • Storage temperature: -30oC to +70oC
    • Operating RH: 30-90%
    • Atmospheric pressure: 60-106Kpa.
    • Saline mist: 96 hours, IEC 60512-6
    • Damp heat test at + 40oC: 21 days, IEC 60512-6
    • Dry heat test at + 85oC: 10 days, IEC 60512-6

    RELIABILITY:

    • RoHS Compliant, CE and FCC, ESD
    • Protection Level: IP67 without including the bottom side
    • Vandal resistant IK09
    • Key Lifespan >10 million actuation.
    • MTBF >50000H· MTTR <30min
