    Waterproof Black Stainless Steel Trackball Pointing Device ESD Safe Operation

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B107R-38-OTB-BT
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    • Product Details
    • Company Profile

    Waterproof Black Stainless Steel Trackball Pointing Device ESD Safe Operation


    Waterproof Black Stainless Steel Trackball Pointing Device ESD Safe Operation


    Special Features:


    1. IP65 dynamic rated vandal proof stainless steel optical trackball with IP68 dynamic rated washable 38.0mm hardened resin optical trackball module with +800 DPI resolutions


    2. stainless steel top plate with durable and scratch-proof black titanium electroplated, with welded threaded bolts for top panel mounting solution.


    3. IP68 dynamic waterproof (from the top)


    4. Solid State Optical Navigation Technology


    5. Removable Ball Versions


    6. Maintenance free with no moving parts


    7. Intrinsically and ESD safe operation


    8. Quadrature, PS/2 and USB outputs


    TECHNICAL SPECIFICATION:


    ITEM

    SPECIFICATION

    Mechanical

    Key

    3 keys, sealed stainless steel buttons

    Key top style

    sealed round stainless steel buttons with tactile feeling

    Front Plate

    Quality brushed SUS304 stainless steel

    Key Travel

    0.45mm

    Ball

    Epoxy Resin with special surface treatment, 38mm/1.50'

    Key switch lifespan

    more than 10 Mio actuations

    Track ball lifespan

    > 5 Mio revolutions

    Back Metal Cover

    Rear side integrated electronics protected by a metal cover

    Tracking Force

    20 grams Nominal Continuous Friction / Scraper Ring

    Dimension

    Dimensions with 38mm track ball,

    Front plate (W x H): 107.0mm x 120.0mm

    Interface

    PS2, USB are available, Y type cable with ports of PS2 and USB

    Electrical

    Power supply

    5V DC+ 10%, keyboard interface

    Protection level

    IP68 (front panel), NEMA3

    EMC Standard

    EN55022(B)

    Power consuming

    ≤1.00W(dynamic)

    ≤0.2W(static)

    Contact Material

    sealed stainless steel buttons

    Environmental

    Operating temperature

    -20ºC~+ 60º C

    Storage temperature

    - 30ºC~+ 70ºC

    Operating RH

    30~90%

    Atmospheric pressure

    60~106Kpa.

    Reliable

    Certificates

    RoHS compliant, CE and FCC certified. ESD

    MTBF

    >50000H

    MTTR

    < 30min

    OS

    OS is under All windows, Linux, Unix, Mac OS9 / OSX

    Packing Details

    Each unit to a suitable brown box, suitable brown boxes to a standard export carton.

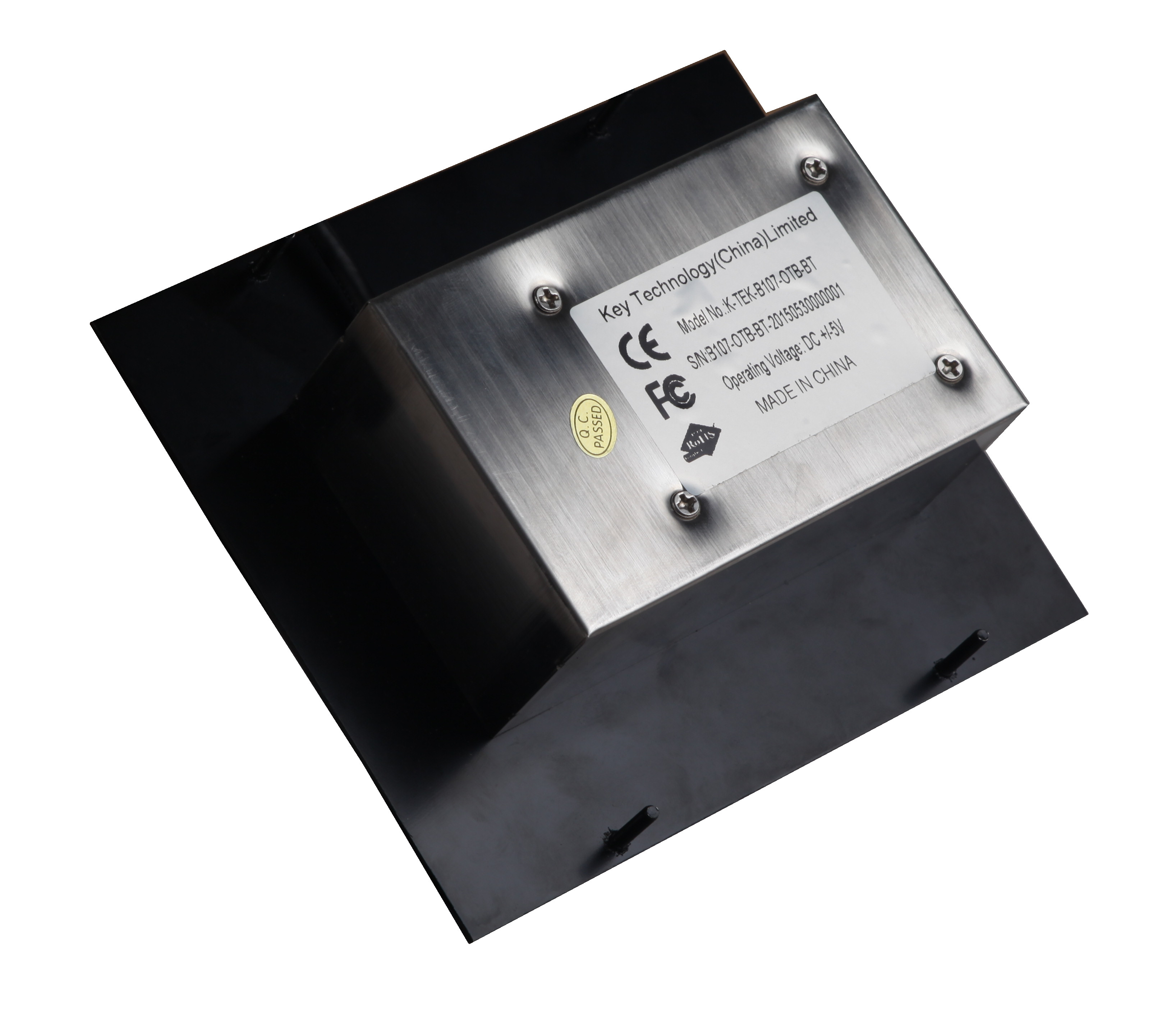

    Actual Pictures:


    Waterproof Black Stainless Steel Trackball Pointing Device ESD Safe Operation

    Waterproof Black Stainless Steel Trackball Pointing Device ESD Safe Operation
