    IP66 Customized 24 Keys Top Panel Mounting illuminated metal stainless steel keypad

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B147-KP-AC-BL-24-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : US
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    • Product Details
    • Company Profile

    IP66 Customized 24 Keys Top Panel Mounting illuminated metal stainless steel keypad


    IP66 Customized 24 Keys Top Panel Mounting illuminated metal stainless steel keypad



    MAIN FEATURE:


    1. 24 keys compact format IP65 dynamic waterproof vandal proof Stainless Steel industrial matrix keypad


    2. Easily mounting into enclosure or panel, and is provided with PS/2, connection output cables that plug directly into the host computer for normal keypad operations.


    3. 24 actuator on the keypad, Any keys can be re-defined per customers’ requirements.


    4.. · With firm tactile key feel, short travel switches, with unique double over-travel

    protection.


    5. OS: All windows, Linux, Unix, Mac OS
    COMMUNICATION PARAMETER
    Standard PC/AT keyboard interface.


    6. Internet friendly key layout, key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off.

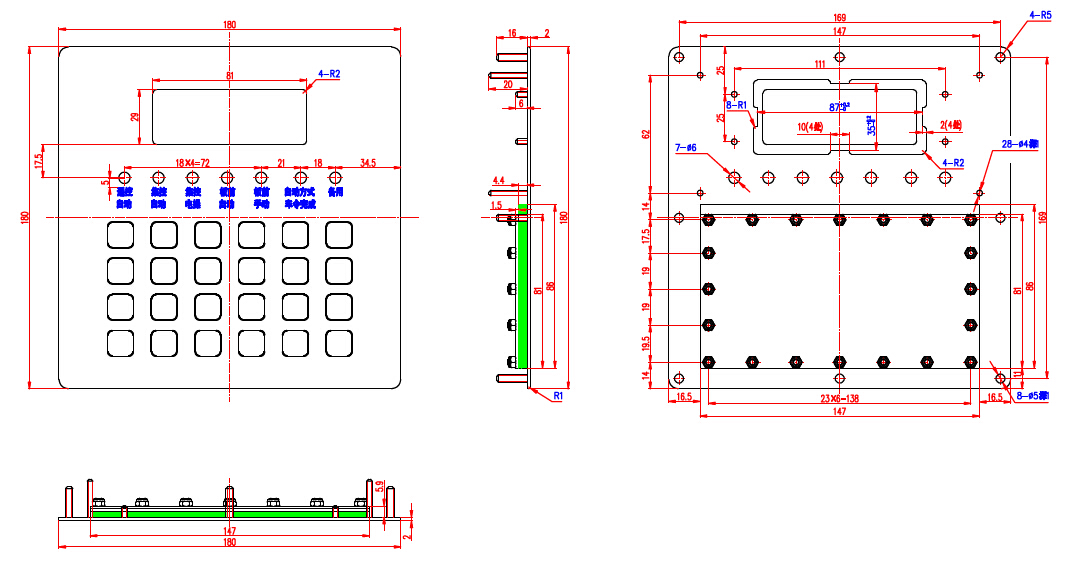

    Mechanical Drawing:



    Actual pictures:


    ELECTRICAL DATA:

    • Switching material: Gold-on-Gold.
    • Power supply voltage: 5V DC.
    • Power Consumption: Under 300mW for operation, under 200mW for non-operation.
    • Electrical lifetime: > 5 years.
    • EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
    • EMI: EN 55022: 2010
    • EMS: EN 55024:2010
    • Communication interface: PS2, or USB available.
    • ENVIRONMENTAL ADAPTABILITY
    • Operating temperature:-20°C to +60°C.
    • Storage temperature:-30°C to +70°C.
    • Operating RH: 30~90%.
    • Atmospheric pressure: 60~106Kpa.

    RELIABILITY:

    • RoHS Compliant, CE and FCC
    • Protection Level: IP67(front panel)
    • Vandal resistant IK10
    • Key Lifespan >5 million actuations.
    • MTBF >50000H MTTR <30min.
