IP65 50 Mm Mechanical Resin Military Trackball With USB Interface

Quick Details:

1. IP65 dynamic vandal proof stainless steel industrial mechanical trackball

2. 50.0mm mechanical trackball

3. IP65 dynamic mechanical trackball module with 400 DPI

4. 100.mm x 116.mm (front panel)

Descriptions:

1. IP65 Vandal proof Stainless Steel Trackball with 50mm black hardened resin ball

2. IP65 rated 50mm mechanical trackball module with adjustable resolutions functionalities from low to high to meet different application requirements

3. Sealed stainless steel 3 mouse buttons, with front panel mounting solutions.

4. Military level.

Main Features:

1. Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.

2. All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.

3. Available 50mm diameter Stainless steel for smooth, quick and durable operation and precise cursor positioning.

4. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast

5. Retaining one-pixel positioning accuracy when the ball is moved slowly.

6. Can be mounted horizontally, and vertically or any directions.

7. No metal bearings inside, operation is very smooth, and easy without any noise.

Applications:

Applications:

This industrial trackball is mainly targeted for use for:

A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

Mechanical DATA:

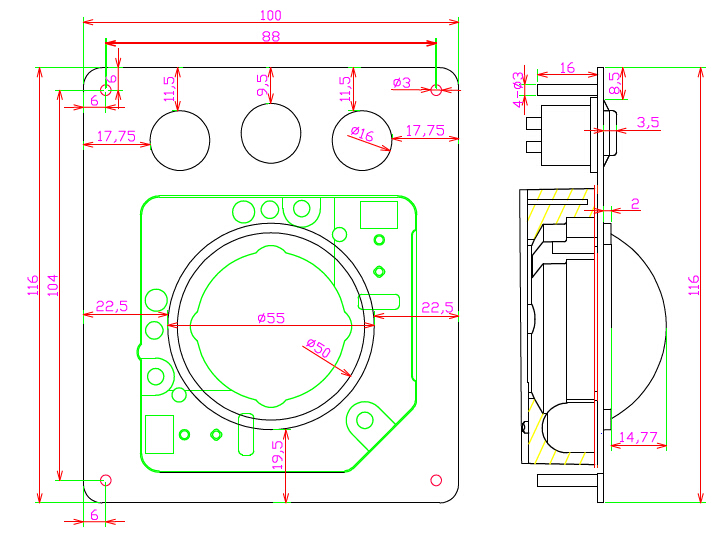

Mechanical Drawing:

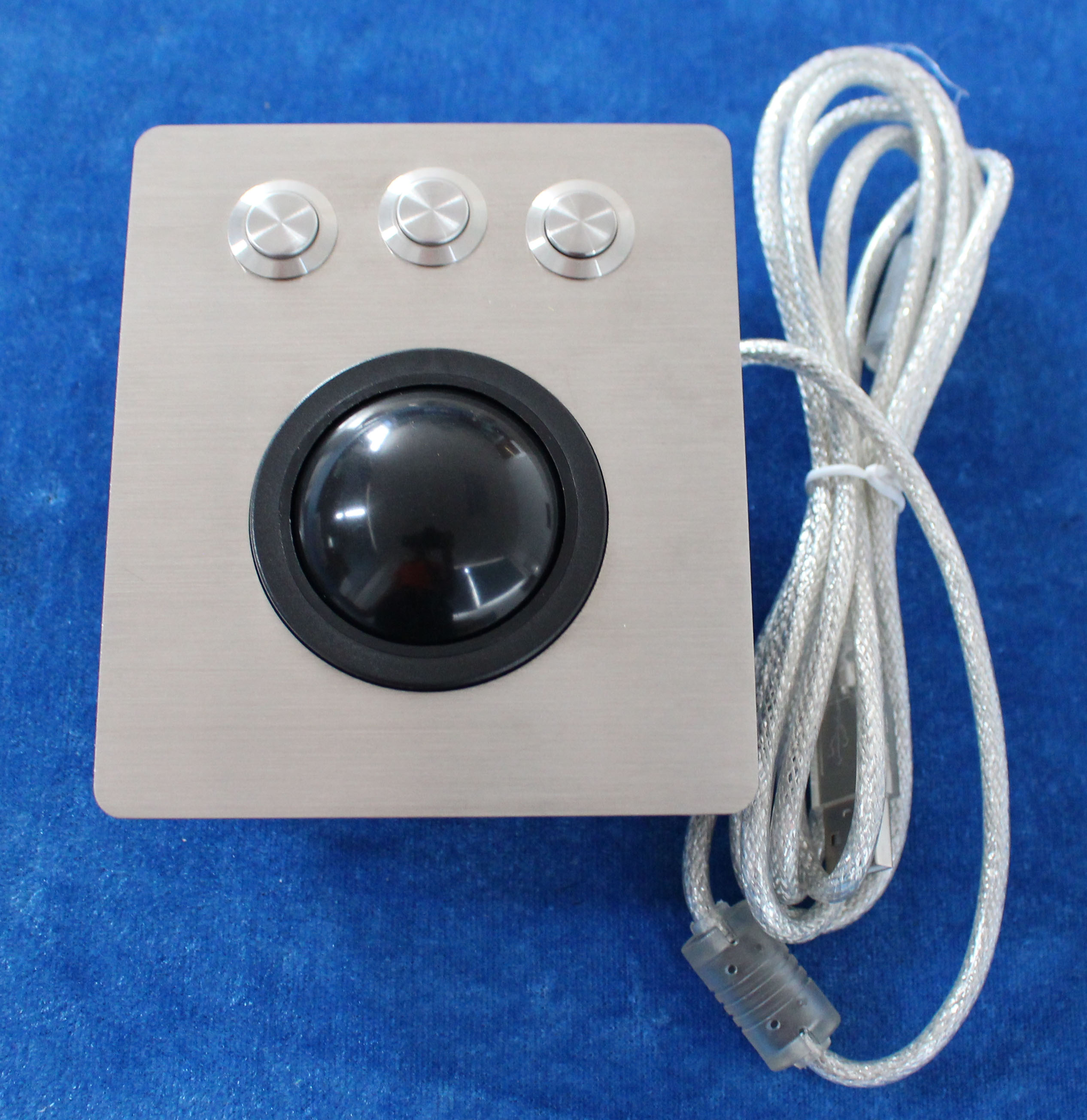

ACTUAL PICTURES:

ENVIRONMENTAL ADAPTABILITY:

• Operating temperature:-40ºC~+ 80º C
• Storage temperature:- 45ºC~+ 85ºC
• Operating RH:30～90%
• Atmospheric pressure: 60～106Kpa

About Us:

Key Technology was established in 2006, which is a company specializing in providing vandal proof waterproof IP65/IP66/IP67/IP68 industrial/medical/marine/vehicle/rugged computer keyboard/keypad/trackball/touchpad Etc.

Key Technology China Limited’s customers include Finance, Aerospace, Chemicals/Petro, Food & Beverage, Healthcare, Telecom/Media, High Technology, Transportation-Automotive, Manufacturing, Utilities & Resources, Pulp and Paper - Government/Defense, Universities and Academia, Museums/Public Displays and Miscellaneous industries.

Active, positive, and team spirit is a special attribute of the people in Key Technology China Limited. The principle of business is based on Righteousness, Integrity, Diligence and Thrift, which stands as our guideline of conduct in the future. By doing so, Key Technology China Limited is moving towards a global technology firm with an optimistic and long future.

Durable Design:
-Ideal for applications in the harshest conditions.

-Our products meet NEMA 4, 4X and IP 65 and IP68 specifications, making them vandal proof, resistant to dust, dirt, water and corrosive liquids.

--Designs that exceed requirements for ISO certification to ensure quality control among manufacturing standards.

-Indestructible Industrial Keyboards and Pointing Devices are long lasting and stand up in harsh environments where your typical office grade peripherals will not survive.

-An ability to withstand extreme temperatures that permits function in freezers, heat-sensitive areas, and other severe environments.

-All the input devices are plug-and-play compatible with Windows operating systems, MAC OS9/OSX and require no special drivers.

--Any language layouts are available to accommodate international customers.
-Customizable function keys that provide flexibility for specialized applications.

-Low-profile keys that allow for efficient cleaning, reduced disinfection time and protection against cross contamination.
-Backlit keys that allow employees to optimize performance while working in low-light environments.
-Polycarbonate and stainless steel cases available to meet custom preferences.
-Small footprint designs that increase mobility.

-Standard mounting patterns that fit most keyboard mounts for easy integration into existing systems.
-More specialized features that cater to our kiosk/ATM, medical, military, emergency response, industrial and material-handling end users.
