Top Panel Black 38mm Trackball Pointing Device 3 Polymer Mouse Buttons

    Buy cheap Top Panel Black 38mm Trackball Pointing Device 3 Polymer Mouse Buttons from wholesalers

    Buy cheap Top Panel Black 38mm Trackball Pointing Device 3 Polymer Mouse Buttons from wholesalers
    • Buy cheap Top Panel Black 38mm Trackball Pointing Device 3 Polymer Mouse Buttons from wholesalers

    Top Panel Black 38mm Trackball Pointing Device 3 Polymer Mouse Buttons

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M107-38-MTB-BT
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    • Product Details
    • Company Profile

    Top Panel Black 38mm Trackball Pointing Device 3 Polymer Mouse Buttons

    Top Panel Black 38mm Trackball Pointing Device 3 Polymer Mouse Buttons


    DESCRIPTION:

    IP65 static Vandal proof Stainless Steel Industrial Trackball Mouse with IP65 static rated mechanical trackball module with 400 DPI resolutions with all black 38.0mm hardened resin ball included, trackball module protected by stainless steel housing, and 3 IP65 dynamic sealed and ruggedized metal mouse buttons above the trackball. High quality durable and scratch-proof black titanium electroplated on the top stainless steel plate with threaded bolts for top panel mounting solution.

    DIMENSIONS: 107.0mm x 120.0mm (top panel)


    MAIN FEATURE:


    Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.

    All metal mechanicals provide for rugged, smooth, long lasting operation.

    Available 50.0mm, 40mm, 38mm, 25mm, 22mm, 19mm and 16mm Diameter Stainless steel or Hard Phenolic Resin Ball for smooth, durable operation and precise cursor positioning.

    Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.

    Teflon Ball Shields are available for dirt and water protection in harsh environments.


    TECHNICAL SPECIFICATION:


    ITEM

    SPECIFICATION

    Mechanical

    Key

    3 raised metal buttons

    Front Plate

    Quality brushed stainless steel with black titanium electroplated.

    Key Travel

    2.0mm

    Ball diameter

    38.1mm/1.50" (19mm, 25mm, 36mm 40mm also available)

    Key switch lifespan

    more than 10 Mio actuations

    Track ball lifespan

    > 10 Mio revolutions

    Back Metal Cover

    Rear side integrated electronics protected by a metal cover

    Actuation Force

    1.0N to 3.0N

    Dimension

    Dimensions with 38mm track ball,

    Front plate (W x H): 107.0mm x 120.0mm

    Interface

    PS2, USB are available, Y type cable with ports of PS2 and USB

    Electrical

    Power supply

    5V DC+ 10%

    Protection level

    IP65 (front panel), NEMA3

    EMC Standard

    EN55022(B)

    Power consuming

    ≤1.00W(dynamic)

    ≤0.2W(static)

    Contact Material

    Metal Switch

    Environmental

    Operating temperature

    -20ºC~+ 60º C

    Storage temperature

    - 30ºC~+ 70ºC

    Operating RH

    30~90%

    Atmospheric pressure

    60~106Kpa.

    Reliable

    Certificates

    RoHS compliant, CE and FCC certified. ESD

    MTBF

    >50000h

    MTTR

    < 30min

    OS

    OS is under All windows, Linux, Unix, Mac OS9 / OSX

    Packing Details

    Each unit to a suitable brown box, suitable brown boxes to a standard export carton.

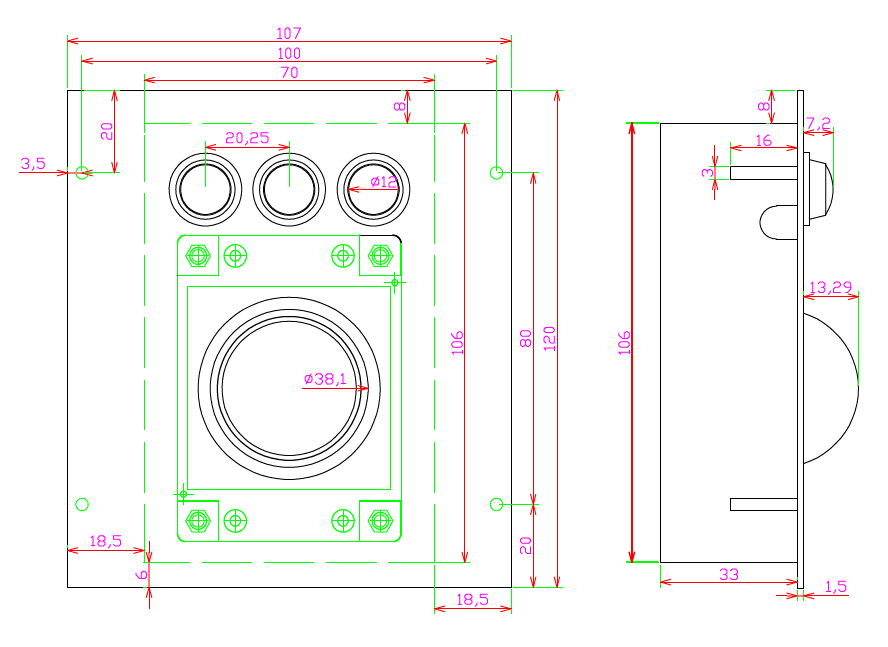

    Mechanical Drawing:


    ACTUAL PICTURES:
