    USB IP65 waterproof 38mm chameleon backlit trackball pointing device

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M124-38-CTB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    USB IP65 waterproof 38mm chameleon backlit trackball pointing device

    USB IP65 waterproof 38mm chameleon backlit trackball pointing device


    1. Brushed stainless steel metal backlight chameleon 38mm trackball

    2. Top panel mounting solution

    3 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling


    Applications:


    This trackball is mainly targeted for use for:

    A: unsupervised or semi -supervised positions of varied access applications,

    B: internet terminals and information kiosks at universities,

    C: shopping malls, hotels, airports, railway stations and other public areas,

    D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.


    Specifications:


    ITEM

    SPECIFICATION

    Mechanical

    Key

    2- 3 keys

    Key top style

    Protuberant rectangular keys.Actuator/keys

    Front Plate

    Quality brushed stainless steel

    Key Travel

    1.5mm

    Ball diameter

    1. .0mm(19mm,25mm,36mm40mm,50.0mm also available)

    IP65 Mechanical trackball

    IP65 chameleon backlight trackball,

    IP68 optical washable

    Key switch lifespan

    more than 5 Mio actuations

    Track ball lifespan

    > 10 Mio revolutions

    Robust polycarbonate frame

    between top SS plate and back SS plate for fixing and mounting keys & gold PCB electronics

    Actuation Force

    1.0N to 3.0N

    polymerSS housing

    full SUS304 stainless steel housing.

    Dimension

    Dimensions with 38mm track ball,

    124.0mm x 196.0mm x 34.3mm (L x W x H)

    Interface

    PS2, USB are available, Y type cable with ports of PS2 and USB

    Electrical

    Power supply

    5V DC+ 10%, keyboard interface

    Protection level

    IP65 (front panel), NEMA4X,IK10

    EMC Standard

    EN55022(B)

    Power consuming

    ≤1.00W(dynamic)

    ≤0.2W(static)

    Contact Material

    Carbon-on-Gold key switch technology PCB.Interface: PS2, USB available.

    Environmental

    Operating temperature

    -20ºC~+ 60º C

    Storage temperature

    - 30ºC~+ 70ºC

    Operating RH

    30~90%

    Atmospheric pressure

    60~106Kpa.

    Reliable

    Certificates

    RoHS compliant, CE and FCC certified,IP65,ESD

    MTBF

    >50000h

    MTTR

    < 30min

    OS

    OS is under All windows, Linux, Unix, Mac OS9 / OSX

    Packing Details

    Each unit to a suitable brown box, suitable brown boxes to a standard export carton.

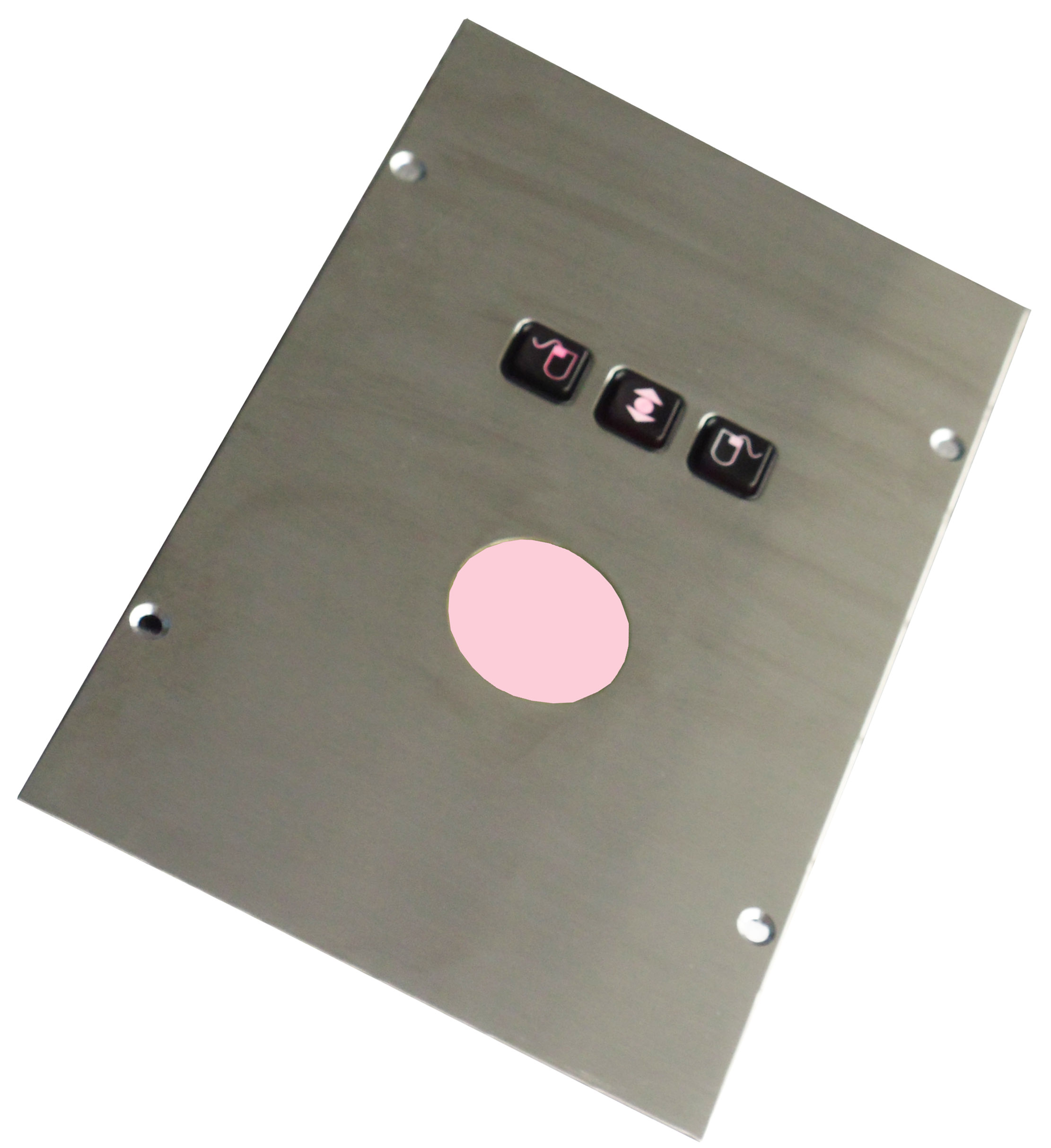

    Actual Photos:
