    Mini 16mm stainless steel optical trackball moudle with USB interface , 800DPI resolution

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-16-OTB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Mini 16mm stainless steel optical trackball moudle with USB interface , 800DPI resolution


    Mini 16mm stainless steel optical trackball moudle with USB interface, 800DPI resolution


    Descriptions:


    1. 16mm optical trackball moudle with USB nterface, 800DPI resolution

    2. Water proof and vandal proof

    3. CE, FCC, RoHS, IP68, ESD

    4. Can be mounted horizontally, and vertically or any other directions, which still works fine without any problem


    MAIN FEATURE

    • Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
    • Available 50mm,38mm, 25mm, and 16mm diameter stainless steel or hard phenolic resin ball for smooth, durable operation and precise cursor positioning.
    • Rate sensitive dynamic resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly. .

    Applications:


    This industrial trackball module is mainly targeted for use for:

    A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
    B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
    C: MILITARY: Army, Navy, Air force
    D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
    E: OTHER INDUSTRIES


    Specifications:


    ITEM

    SPECIFICATION

    Mechanical Data

    Ball diameter

    16mm

    Track ball lifespan

    > 10 Mio revolutions

    Actuation Force

    1.0N to 3.0N

    Dimension

    16mm diameter for ball, 42.90mm x 28.60mm x 26.0(front panel)

    Interface

    PS2, USB are available, Y type cable with ports of PS2 and USB

    Electrical

    Power supply

    5V DC+ 10%, keyboard interface

    Protection level

    IP68 (dynamic), NEMA4X

    EMC Standard

    EN55022(B)

    Power consuming

    ≤1.00W(dynamic)

    ≤0.2W(static)

    Environmental

    Operating temperature

    -20ºC~+ 60º C

    Storage temperature

    - 30ºC~+ 70ºC

    Operating RH

    30~90%

    Atmospheric pressure

    60~106Kpa.

    Reliable

    Certificates

    RoHS compliant, CE and FCC certified. ESD

    MTBF

    >50000H

    MTTR

    < 30min

    OS

    All windows, Linux, Unix, Mac OSX

    Packing Details

    Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.

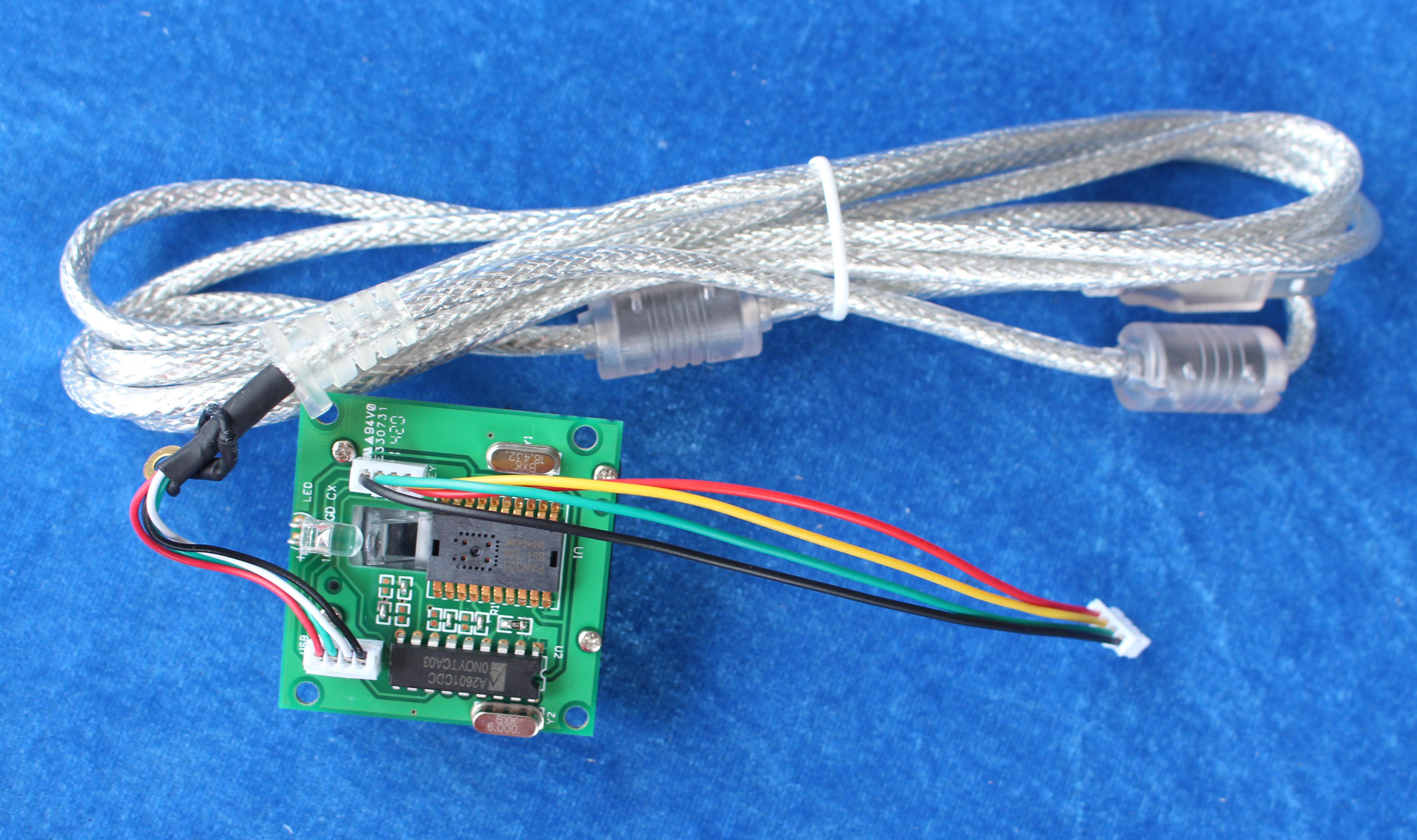

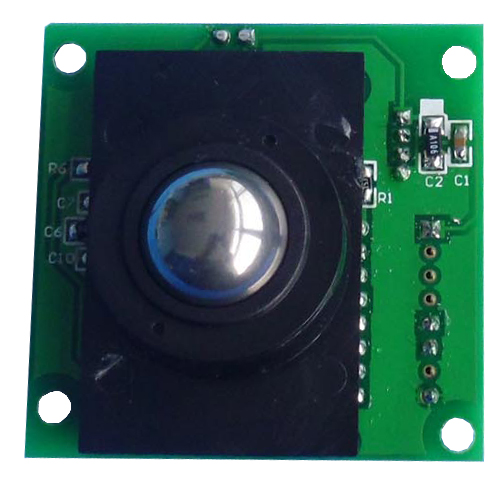

    Actual Photos:



    Mechnical Drawing:



    Our Factory:
