    IP65 dynamic vandal proof top panel mount military 38mm Trackball Pointing Device

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B107-38-TB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

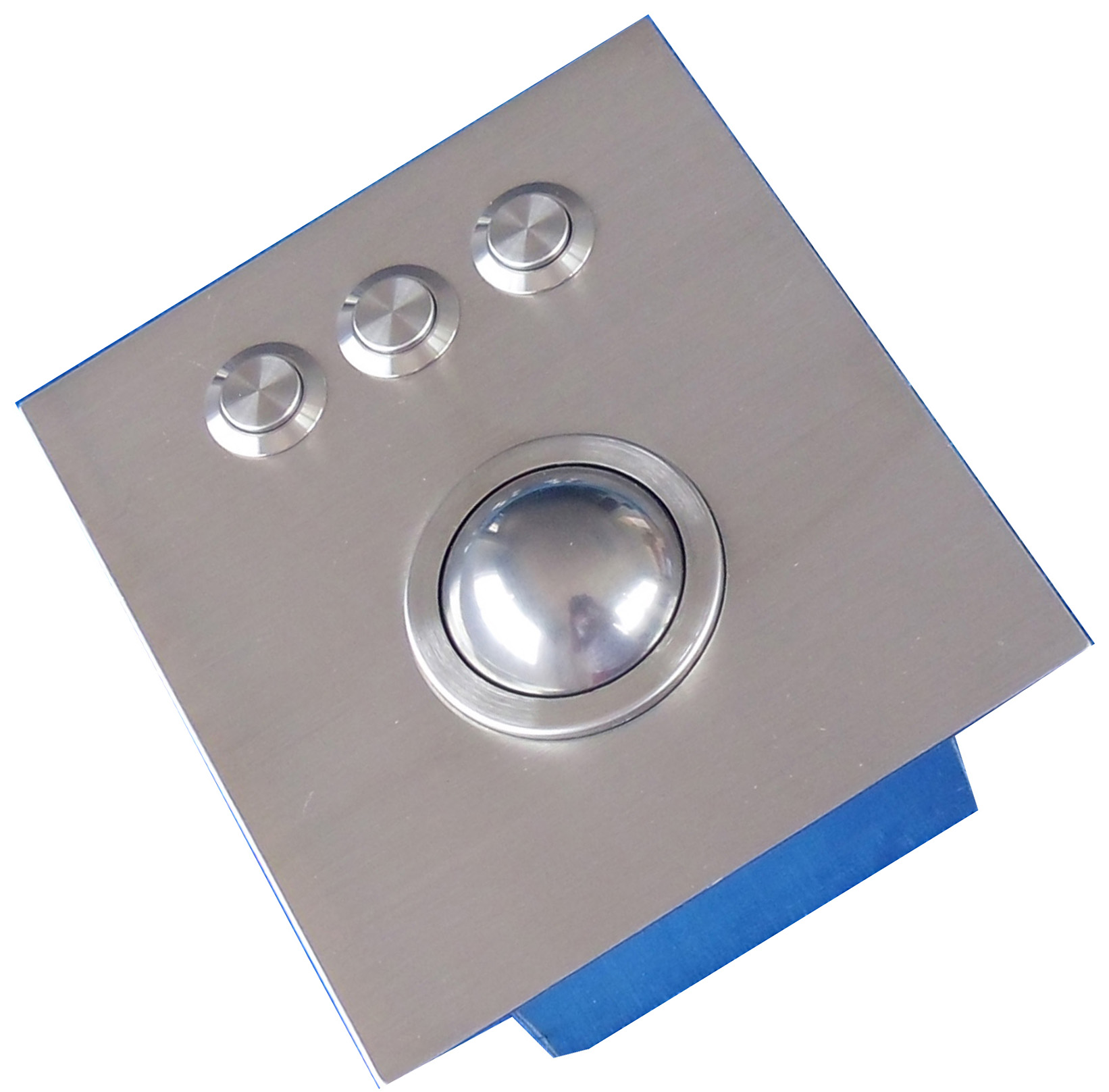

    IP65 dynamic vandal proof top panel mount military 38mm Trackball Pointing Device


    IP65 dynamic vandal proof top panel mount military 38mm mechnical trackball with USB interface


    Quick Details:


    1, This trackball is mainly targeted for use for unsupervised or semi -supervised positions of varied

    access applications

    2,With 2-3 keys sealed round stainless steel buttons with tactile feeling


    Main Features:


    Trackball Version

    Mechnical trackball, optical trackball, laser trackbal optional


    Trackball Resolution

    400DPI, 800DPI, 1200DPI Resolution optional


    Trackball Diameter

    19mm, 25mm, 38mm 50mm also available


    Key Travel

    0.45mm short stroke or 2mm long stroke optional


    Colour

    Brushed stainless steel or black titanium electroplated


    Interface

    USB or PS/2 interface optional


    Performance

    Waterproof, dustproof, explosion proof, vandal proof etc.


    Mounting version

    Top panel mounting soulution



    Specifications:


    ITEM

    SPECIFICATION

    Mechanical

    Key

    2 or 3 keys, quality brushed stainless steel

    Key top style

    sealed round stainless steel buttons with tactile feeling

    Front Plate

    Quality brushed stainless steel

    Key Travel

    1.00 mm

    Ball diameter

    38.1mm/1.50" (19mm, 25mm, 36mm 40mm also available)

    Key switch lifespan

    more than 5 Mio actuations

    Track ball lifespan

    > 10 Mio revolutions

    Back Metal Cover

    Rear side integrated electronics protected by a metal cover

    Actuation Force

    1.0N to 3.0

    Mounting Rack

    top stainless steel plate with mounting screw bolts

    Dimension

    Dimensions with 38mm track ball,

    Front plate (L x W): 107.0mm x 120.0mm

    Interface

    PS2, USB are available, Y type cable with ports of PS2 and USB

    Electrical

    Power supply

    5V DC+ 10%, mouse interface

    Protection level

    IP65 dynamic (front panel), NEMA4X, IK10

    EMC Standard

    EN55022(B)

    Power consuming

    ≤1.00W(dynamic)

    ≤0.2W(static)

    Contact Material

    sealed stainless steel buttons

    Environmental

    Operating temperature

    -20ºC~+ 60º C

    Storage temperature

    - 30ºC~+ 70ºC

    Operating RH

    30~90%

    Atmospheric pressure

    60~106Kpa.

    Reliable

    Certificates

    RoHS compliant, CE and FCC certified. ESD

    MTBF

    >50000H

    MTTR

    < 30min

    OS

    OS is under All windows, Linux, Unix, Mac OS9 / OSX

    Packing Details

    Each unit to a suitable brown box, suitable brown boxes to a standard export carton.
