    16 keys IP65 dust proof rear panel mounting keypad with USB or PS/2 port

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B100-91KP-RP-IT
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    16 keys IP65 dust proof rear panel mounting keypad with USB or PS/2 port


    16 keys IP65 dust proof rear panel mounting keypad with USB or PS/2 port​


    Quick Details:


    1. 16 Keys Vandal proof IP65 304 stainless steel keypad with USB or PS/2, RS232 interface.

    2. Mounting holes on rear stainless steel plate for rear mounting.

    3. Easily mounting into enclosure or panel, and is provided with PS/2, connection output cables that plug directly into the host computer for normal keypad operations.

    4. Waterproof/dirt-proof execution according to degree of protection IP65/IP54, waterproof and dirt proof encapsulation with unique membrane.

    5. Free customized layout and keycode design

    6. Plug and play USB or PS/2, RS232 interface

    7. OS: All windows, Linux, Unix, Mac OSX


    MECHANICAL DATA:

    • Actuation Force: 1.2N +/-0.1N (pressure point).
    • Key Travel: 0.45mm.
    • Lettering: laser engraving, or raised letters.
    • Front panel: brushed stainless steel.
    • Actuator/keys materials: stainless steel.
    • Dimensions: 100.0mm x 90.0mm.
    • G.W. 1.0KGs

    ELECTRICAL DATA:

    • Switching material: Gold-on-Gold.
    • Power supply voltage: 5V DC.
    • Power Consumption: Under 300mW for operation, under 200mW for non-operation.
    • Electrical lifetime: > 5 years.
    • EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
    • EMI: EN 55022: 2010
    • EMS: EN 55024:2010
    • Communication interface: PS2, or USB available.

    Specifications:


    ENVIRONMENTAL ADAPTABILITY

    Operating temperature

    -20oC to +60oC

    Storage temperature

    -30oC to +70oC

    Operating RH

    30-90%

    Atmospheric pressure

    60-106Kpa


    RELIABILITY

    Certification

    RoHS Compliant, CE and FCC, ESD

    Protection Level

    IP65(front panel)

    Vandal resistant

    IK10

    Key Lifespan

    >5 million actuations

    MTBF

    >50000H

    MTTR

    <30min

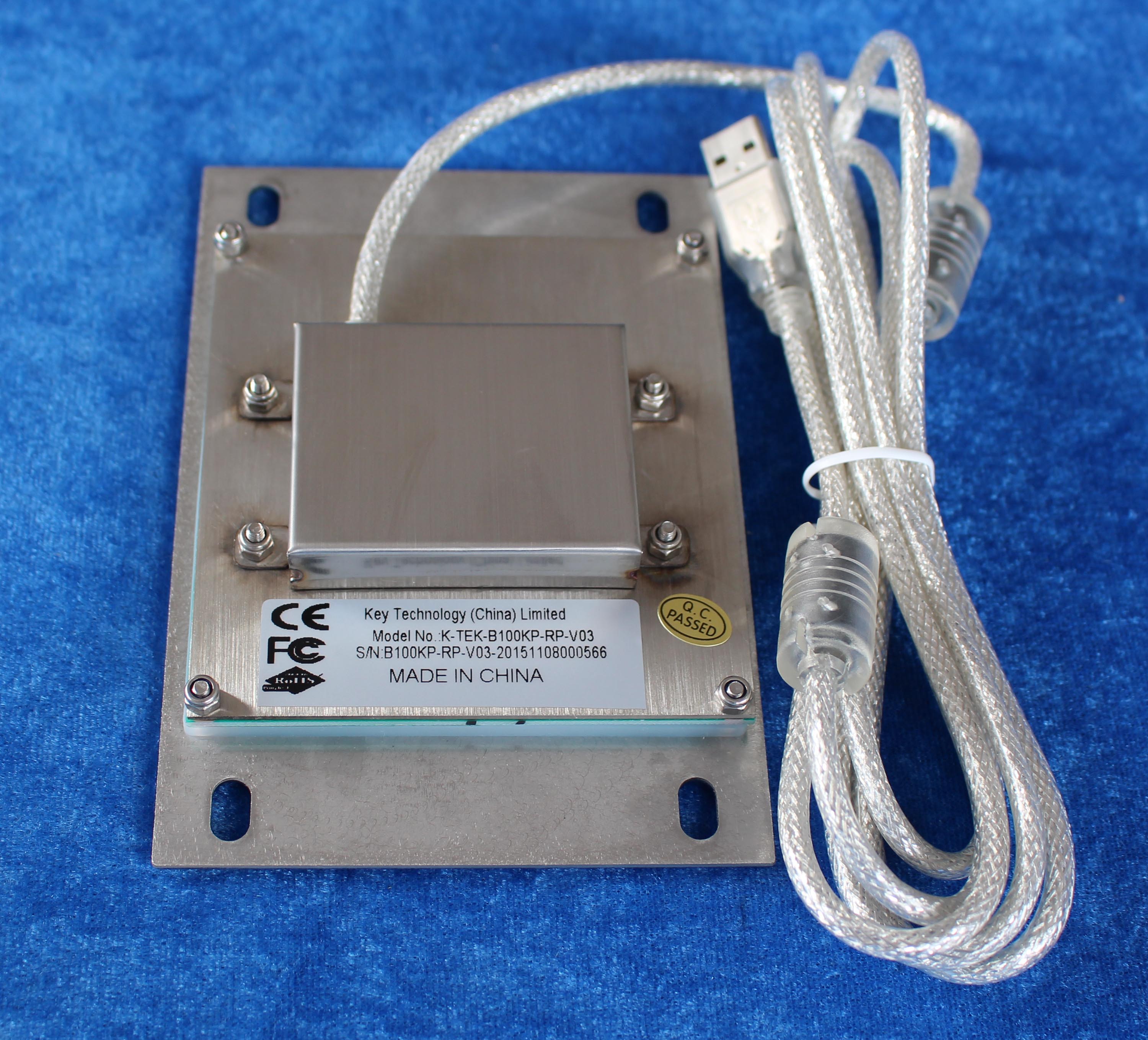

    Actual Photos:



    Mechnical Drawing:



    Our Certificate:



    Our Exhibitions:



    Our Factory:
