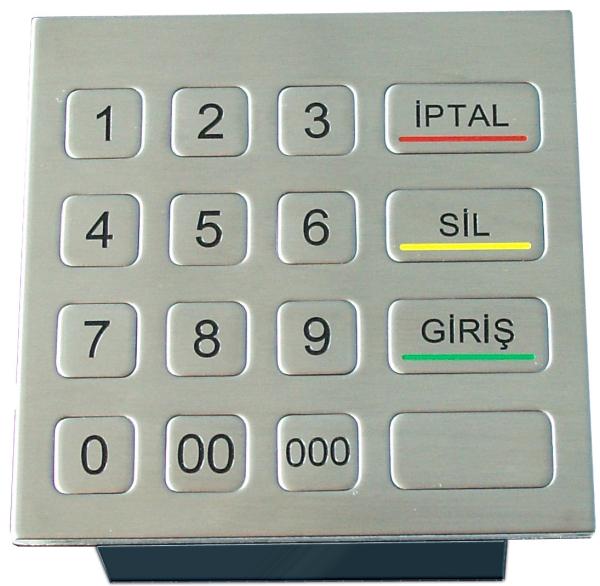

    Water resistant ruggized industrial 304 stainless steel numeric keypad 4 x 4

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B100-100KP-FP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Water resistant ruggized industrial 304 stainless steel numeric keypad 4 x 4


    Industrial top panel mout gas machine 304 stainless steel numeric keypad


    DESCRIPTION: 16 keys compact format IP65 dynamic waterproof and vandal proof Stainless Steel industrial numeric keypad with industrial metal dome PCB electronics controller shieded & protected by stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, top stainless steel plate for top panel mounted.


    Quick Details:


    1. Free customized layout and keycode design


    2. Easily mounting into enclosure or panel, and is provided with PS/2, connection output cables that plug directly into the host computer for normal keypad operations.


    3. With firm tactile key feel, short travel switches, with unique double over-travel protection.


    4. Plug and play USB or PS/2, RS232 interface


    5. 16 Keys Vandal proof IP65 304 stainless steel keypad with USB or PS/2, RS232 interface.


    6. CE, FCC, RoHS, IP65, ESD


    Specifications:


    MECHANICAL DATA

    Actuator/keys

    16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.

    Switching material

    gold-on-Gold key switch technology with metal dome PCB

    Actuation Force

    2.0N+/-0.1N (pressure point)

    Key travel

    0.45mm

    Lettering

    laser engraving, or raised letters

    Front plate

    1.5mm thickness super quality brushed stainless steel

    Back plate

    1.0mm thickness super quality stainless steel

    Actuator/keys materials

    stainless steel.

    Dimensions

    100.0mm x 90.0mm (L x W )

    G.W.

    0.8KG.

    Key top style

    Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

    Key Size

    14.0mm x 14.0mm for normal keys;14.0mm x 28.0mm for function keys

    Switch life

    more than 5 million of operation


    MAIN FEATURE:


    • Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.
    • Internet friendly key layout, key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available.
    • With firm tactile key feel, short travel switches, with unique double over-travel protection.
    • Waterproof/dirt-proof execution according to degree of protection IP65/IP54, waterproof and dirt proof encapsulation with unique membrane.
    • Easily mounting into enclosure or panel, and is provided with PS/2, connection output cables that plug directly into the host computer for normal keypad operations.
    • OS: All windows, Linux, Unix, Mac OSX

    COMMUNICATION PARAMETER:

    • Standard PC/AT keyboard interface.
    • 16 actuator on the keypad: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, ., Exit, P-Up, P-Down, Enter, Clear, 4 x 4 scanning code. Any keys can be re-defined per customers’ requirements.
    • 8 functional keys: F5, F10, F11, F12 and up/down/right/left arrows.

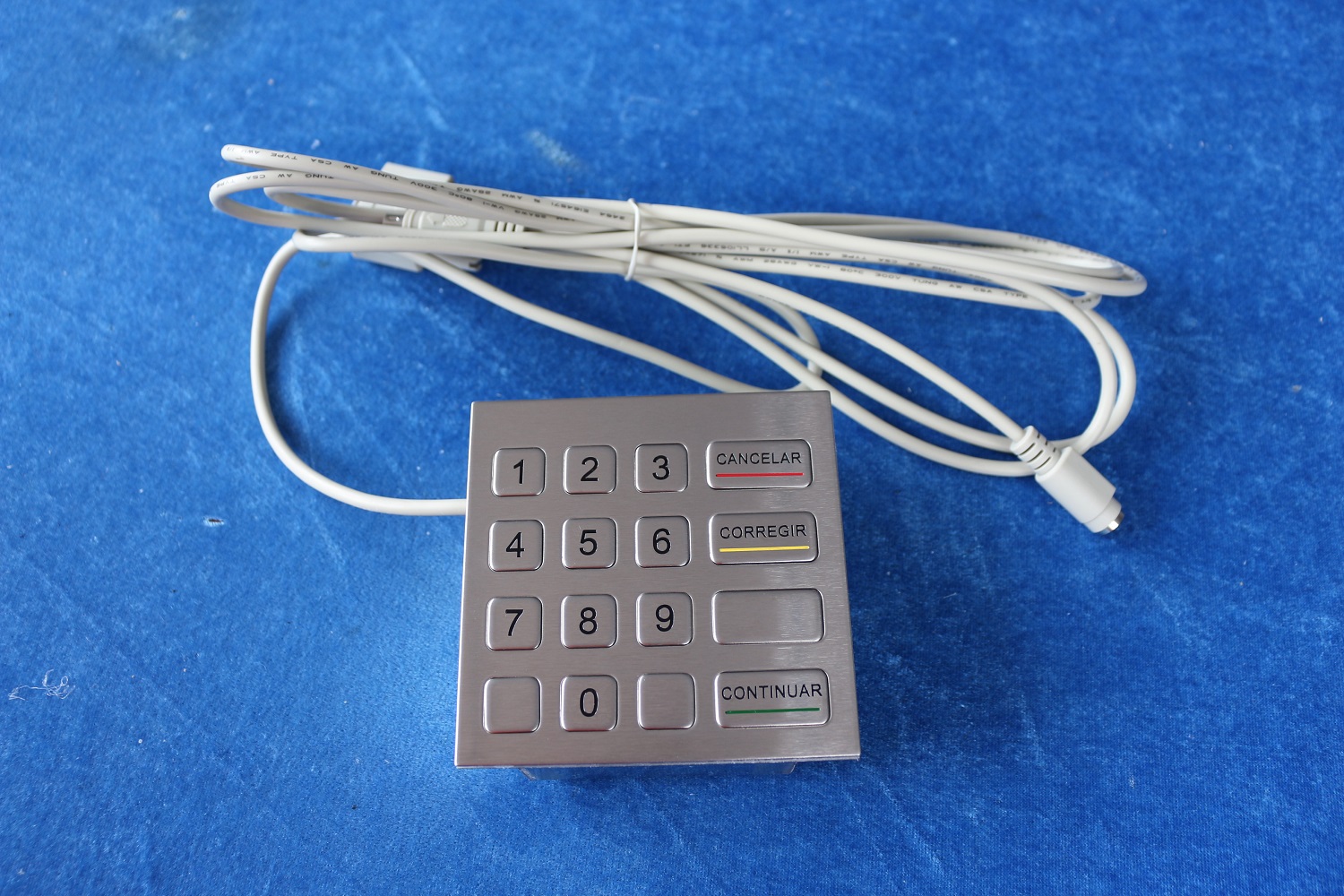

    Actual Photo:



    Our Certificate:



    Our Exhibitions:



    Our Factory:
