    OEM ODM Vandal Proof Panel Mount Metal Keypad With 16 Button Digital Keypad

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B120KP-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    Price : to be quoted
    • Product Details
    • Company Profile

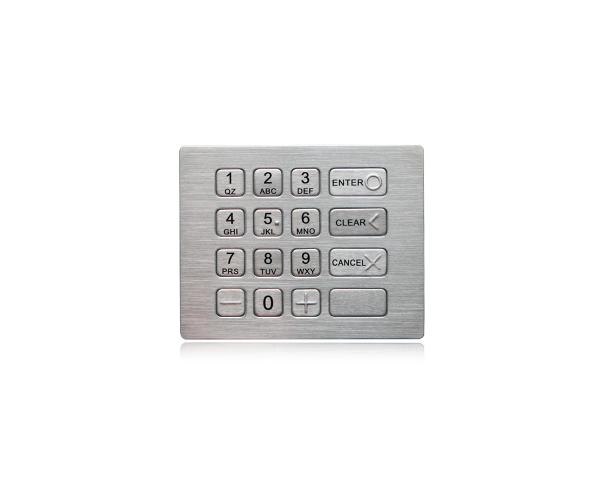

    OEM ODM Vandal Proof Panel Mount Metal Keypad With 16 Button Digital Keypad


    OEM ODM Vandal Proof Panel Mount Metal Keypad With 16 Button mini numeric keypad


    DESCRIPTION: 16 keys compact format IP65 dynamic vandal proof Stainless Steel industrial numeric keypad with industrial metal dome PCB electronics controller shielded & protected by stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, top stainless steel plate with sealing gasket for easy & tight sealing and mounting to enclosure or panel, with threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

    DIMENSIONS: 120.0mm × 98.0mm (front panel)


    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating30mA
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialGold-on-Gold key switch technology PCB
    InterfacePS2, USB, RS232, RS485 available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed).
    COMMUNICATION PARAMETER
    PS2/USB
    1Standard PS2/USB keyboard interface
    216 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code
    3Any customized layout/codes are available upon customers’ requirements
    RS232
    1Standard RS232 serial interface
    2Communication velocity: 9600bps
    3Data format: N, 8, 1
    416 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code.
    5Any customized layout/codes are available upon customers’ requirements
    MECHANICAL DATA
    Front Plate1.5mm thickness super quality brushed stainless steel
    Back Plate1.5mm thickness super quality stainless steel
    Actuator/keys16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
    Key top styleNon-protuberant rectangular keys, laser engraved & etched legends on keys are available
    Key Size14.0mm x 14.0mm for normal keys, 14.0mm*28.0mm for longer keys
    Key Travel0.45mm±0.05mm
    Actuation Force

    3.5N±0.2N for key 14.0mm x 14.0mm (pressure point)

    7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)

    Switch Lifemore than 1 million of operations
    G.W.0.60KGs
    ENVIRONMENTAL ADAPTABILITY
    Operating Temperature-20℃ to +65℃
    Storage Temperature-30℃ to +75℃
    Operating RH30-90%
    Atmospheric Pressure60-106Kpa
    Saline Mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection LevelIP65 dynamic (front panel)
    Vandal ResistantIK09
    Key Lifespan>1 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSIndustrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

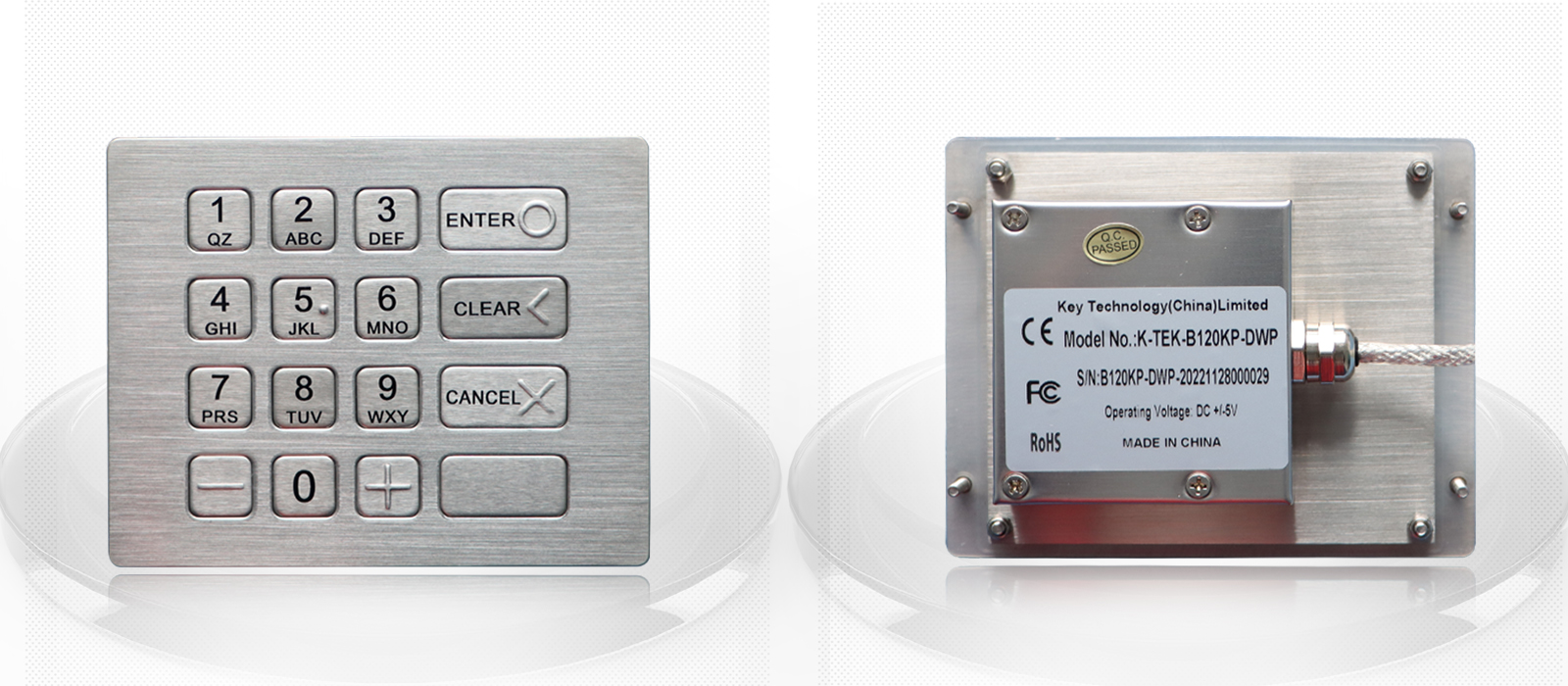

    Actual Photo:


    Our Certificate:


    Our Factory:
