24 keys dynamic customized led 304 stainless steel keypad waterproof

    Buy cheap 24 keys dynamic customized led 304 stainless steel keypad waterproof from wholesalers

    Buy cheap 24 keys dynamic customized led 304 stainless steel keypad waterproof from wholesalers
    • Buy cheap 24 keys dynamic customized led 304 stainless steel keypad waterproof from wholesalers
    • Buy cheap 24 keys dynamic customized led 304 stainless steel keypad waterproof from wholesalers

    24 keys dynamic customized led 304 stainless steel keypad waterproof

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B147KP-AC-24-BL
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    24 keys dynamic customized led 304 stainless steel keypad waterproof


    24 keys dynamic waterproof customized led stainless steel numeric keypad


    DIMENSIONS: 147.00mm x 86.00mm (Front Panel)


    MAIN FEATURE:


    1. Standard PC/AT keyboard interface.


    2. Waterproof/dirt-proof execution according to degree of protection IP65/IP54, waterproof and dirt proof encapsulation with unique membrane.


    3. COMMUNICATION PARAMETER


    4. OS: All windows, Linux, Unix, Mac OSX


    5. 18 actuator on the keypad, Any keys can be re-defined per customers’ requirements


    6. Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.


    7. With firm tactile key feel, short travel switches, with unique double over-travel protection.


    8. Internet friendly key layout, key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available.


    9. Easily mounting into enclosure or panel, and is provided with PS/2, connection output cables that plug directly into the host computer for normal keypad operations.


    Specifications:


    MECHANICAL DATAActuation Force: 1.2N +/-0.1N (pressure point).
    Key Travel: 0.45mm.
    Lettering: laser engraving, or raised letters.
    Front panel: brushed stainless steel.
    Actuator/keys materials: stainless steel.
    Dimensions: 147.00mm x 86.00mm (front panel)
    G.W: 1.20kg.
    ENVIRONMENTAL ADAPTABILITY

    Switching material: Gold-on-Gold.
    Power supply voltage: 5V DC.

    Power Consumption: Under 300mW for operation, under 200mW for non-operation.
    Electrical lifetime: > 5 years.

    EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
    EMI: EN 55022: 2010
    EMS: EN 55024:2010
    Communication interface: PS2, or USB available.
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature:-20°C to +60°C.
    Storage temperature:-30°C to +70°C.
    Operating RH: 30~90%.
    Atmospheric pressure: 60~106Kpa.

    RELIABILITYRoHS Compliant, CE and FCC
    Protection Level: IP65(front panel)
    Vandal resistant IK10
    Key Lifespan >5 million actuations.
    MTBF >50000H MTTR <30min.

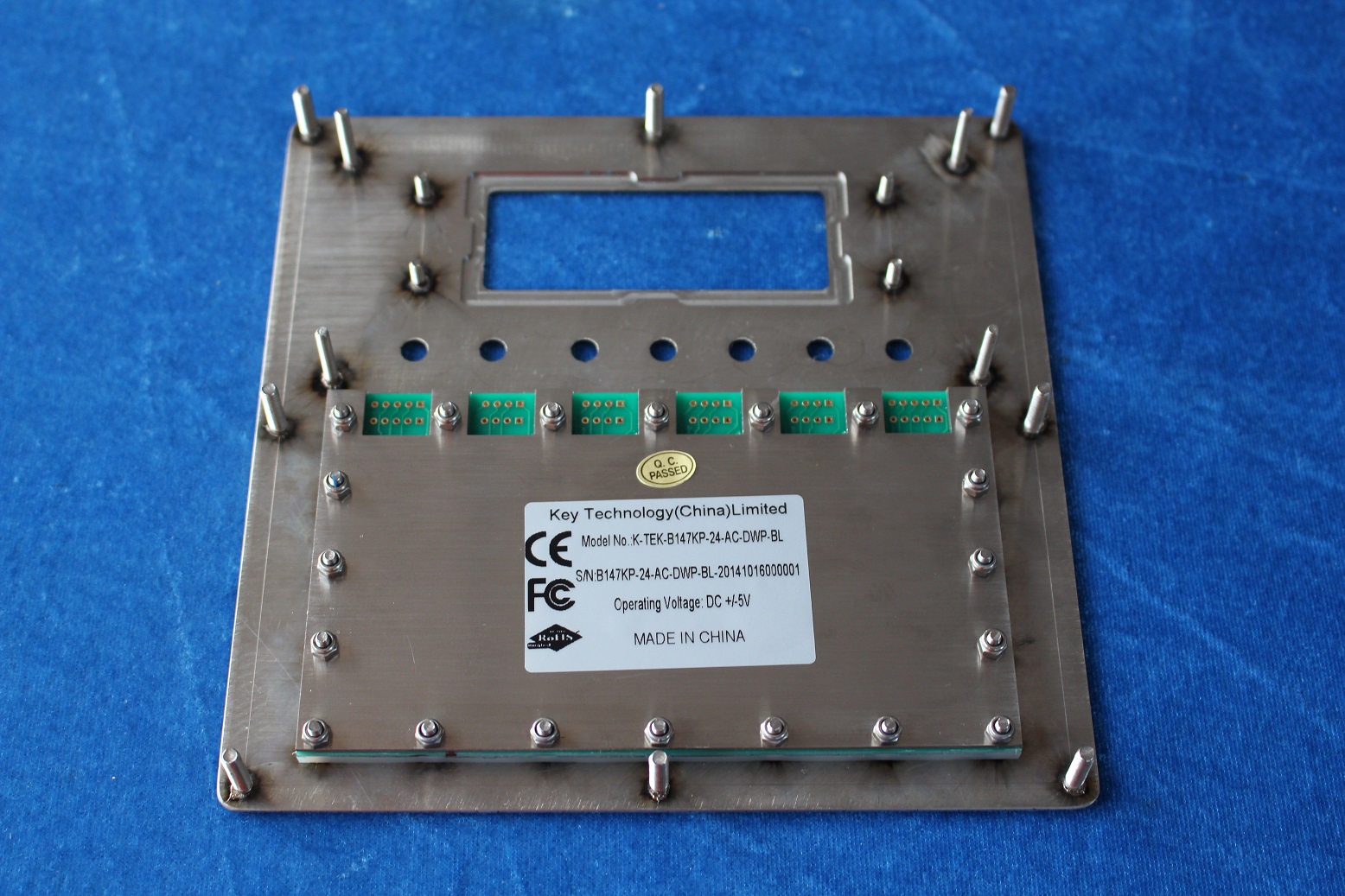

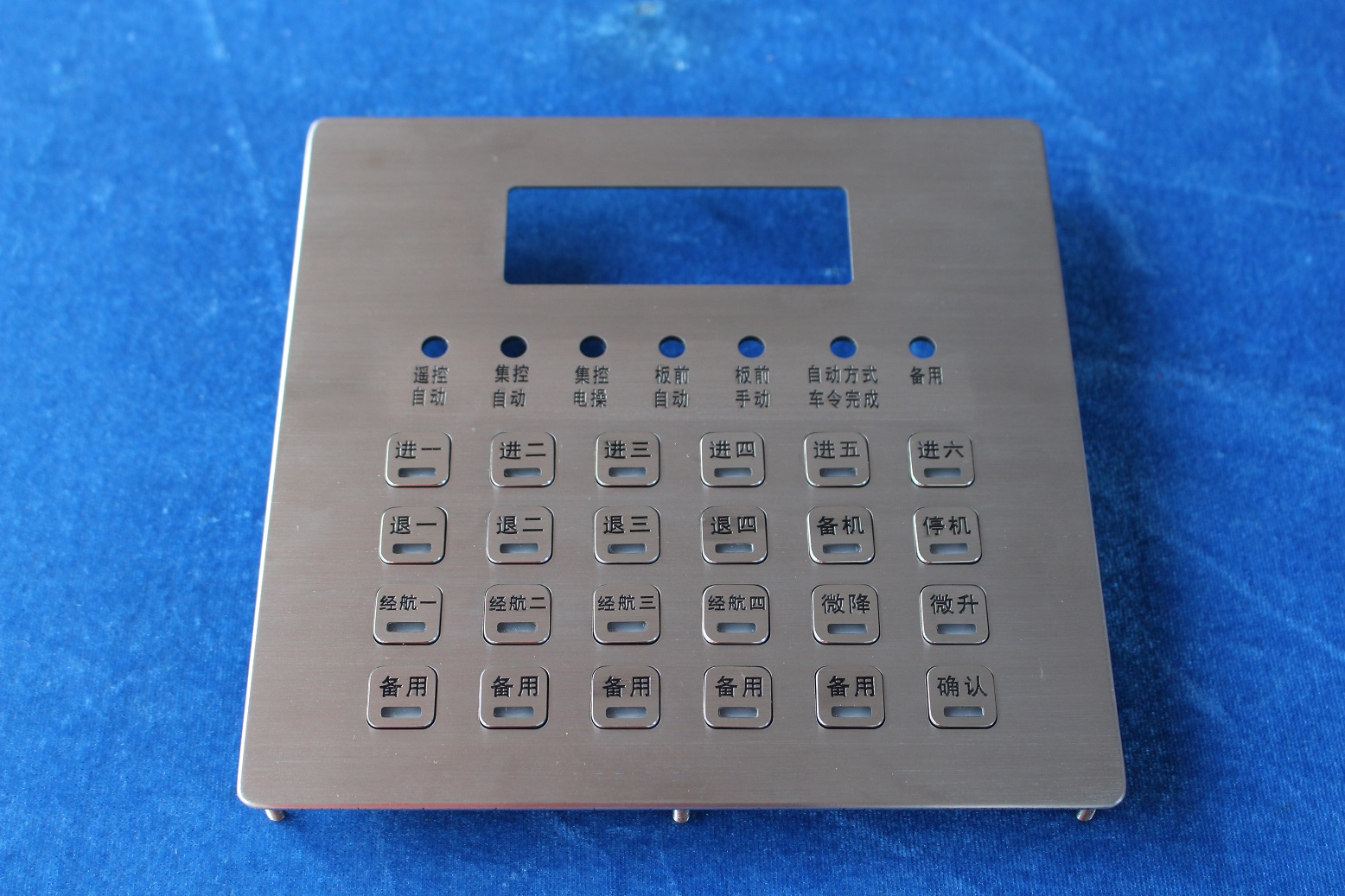

    Actual Photo:



    Our Office:



    Our factory:
