    Rear Panel Mounting Metal Keypad Dot Matrix 16 Keys Waterproof

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A60KP-AC
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Rear Panel Mounting Metal Keypad Dot Matrix 16 Keys Waterproof


    16 keys rear panel mounting metal dot matrix keypad, 2mm long stroke keypad


    Quick Details:


    1. 16 Keys Vandal proof IP65 Stainless Steel dot matrix keypad

    2. carbon-on-gold key switch technology

    3. rear panel mounting

    4. CE, FCC, RoHS, IP65, ESD


    Special Feature:


    1. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
    2. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
    3. Waterproof execution according to IP65 protection from top panel

    4.An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
    5. Key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
    6. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
    7. Ease of customizing with multiple languages, to accommodate foreign or custom variants


    Specifications:


    MECHANICAL DATA

    Actuator/keys

    16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel.

    Switching material

    Carbon-on-Gold key switch technology with metal dome PCB

    Actuation Force

    0.6N+/-0.1N (pressure point)

    Key travel

    2.0mm

    Lettering

    laser engraving, or raised letters

    Front pane

    brushed stainless steel

    Actuator/keys materials

    stainless steel.

    Dimensions

    60.0mm x68.0mm (L x W )

    G.W.

    0.5KG.

    Key top style

    protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

    Key Size

    8.0mm x 8.0mm for normal keys

    Switch life

    more than 10 million of operation

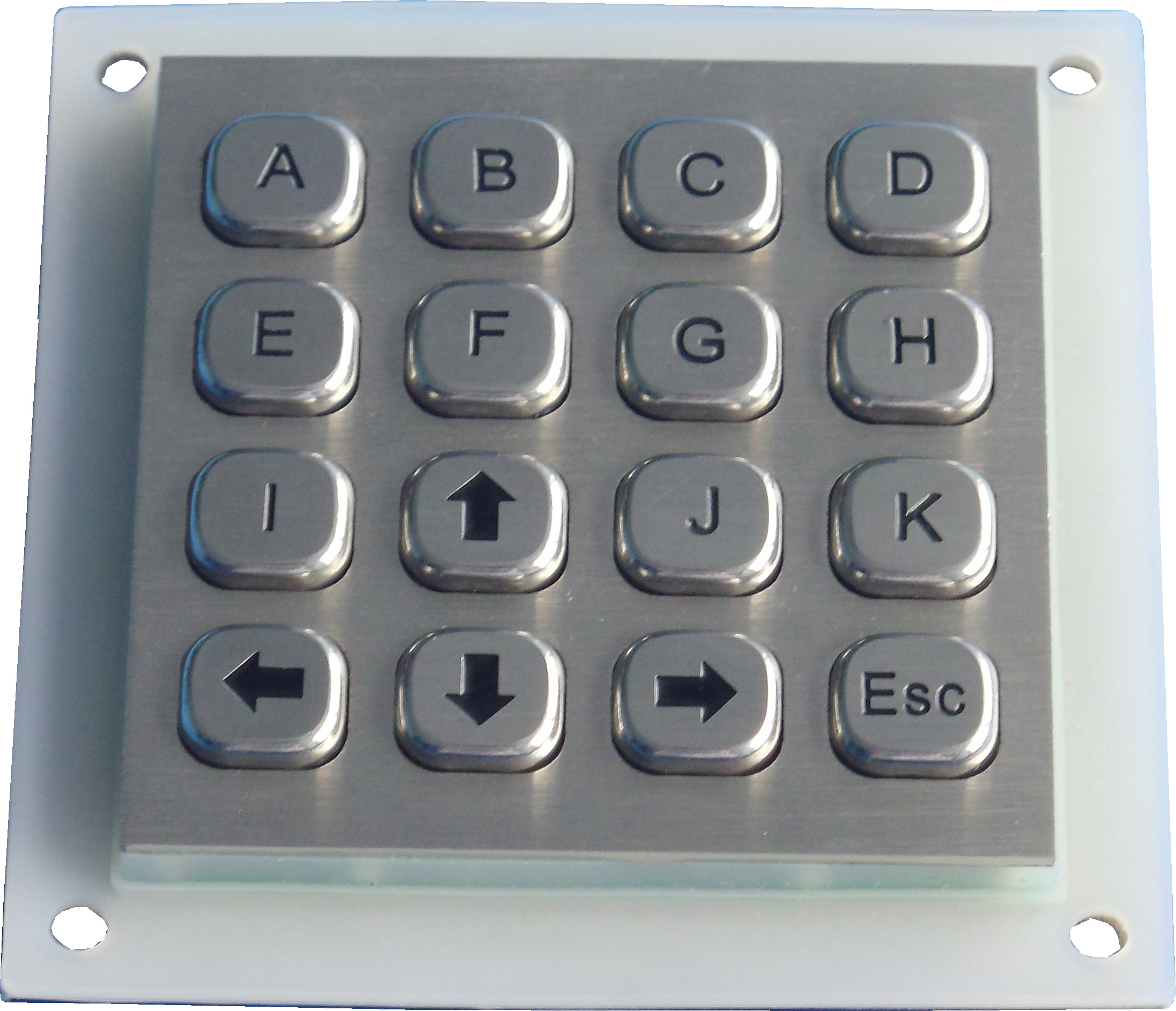

    Actual Photos:

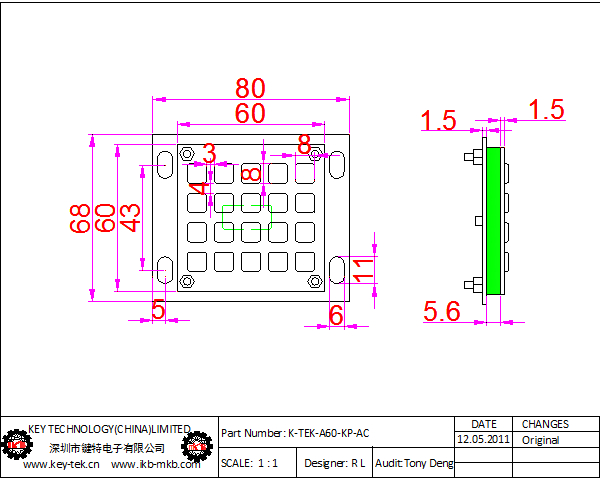

    Mechnical Drawing:



    Our Factory:
