    Black Industrial Trackball Pointing Device / kiosk trackball abrasion - resistant

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A107-38-OTB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Black Industrial Trackball Pointing Device / kiosk trackball abrasion - resistant

    P65 dynamic rated vandal proof industrial metal industrial trackball poting device with USB interface


    MODEL NO.: K-TEK-A107-38-OTB


    DESCRIPTION:
    IP65 dynamic rated Vandal proof Stainless Steel industrial Trackball withIP68 dynamic rated washable 38.0mm stainless steel optical trackball module with +800 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, laser trackball module protected and shielded by stainless steel housing, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, stainless steel top plate with threaded bolts for top panel mounting solution.
    DIMENSIONS: 107.0mm x 120.0mm (top panel)


    MAIN FEATURE:
    1. Any customized layout and keycode warmly accept.
    2.Mechnical trackball, Optical trackball, Laser trackball optional.
    3.Made of abrasion-resistant stainless steel
    4.Designed to operate in harsh environments, ideal for web payphones, kiosks and other demanding applications
    5.Dust-proof and liquid-proof, IP65 compliance
    6.Compatible with OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX
    7.Plug and Play PS/2 or USB interface
    8.Top panel mounting Version
    9. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast
    10.Teflon Ball Shields are available for dirt and water protection in harsh environments.


    Specifications:


    MECHANICAL DATASwitching material: Carbon-on-Gold
    Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
    Key Travel: 2.0mm
    Lettering: laser engraving, or raised letters.
    Front panel: brushed stainless steel
    Actuator/keys materials: brushed stainless steel
    Dimensions: 110.0mm x 80.0mm (top panel)
    G.W. 0.8KGs

    ELECTRICAL DATA
    Power supply voltage: 5V DC.
    Power Consumption: Under 30mA for operation
    Electrical lifetime: > 5 years
    EMC:EN55022(B)
    Communication interface: PS2, USB or RS232 are all available.

    ENVIRONMENTAL ADAPTABILITY
    Operating temperature:-20°C to +60°C
    Storage temperature: -30°C to +70°C
    Operating RH: 30-90%
    Atmospheric pressure: 60-106Kpa.

    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection Level: IP65(front panel)
    Vandal resistant IK09
    Key Lifespan >10 million actuations .
    MTBF >50000H.
    MTTR <30min.

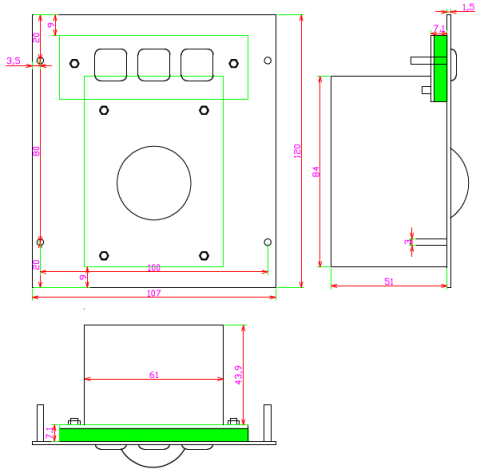

    Mechanical Drawing:

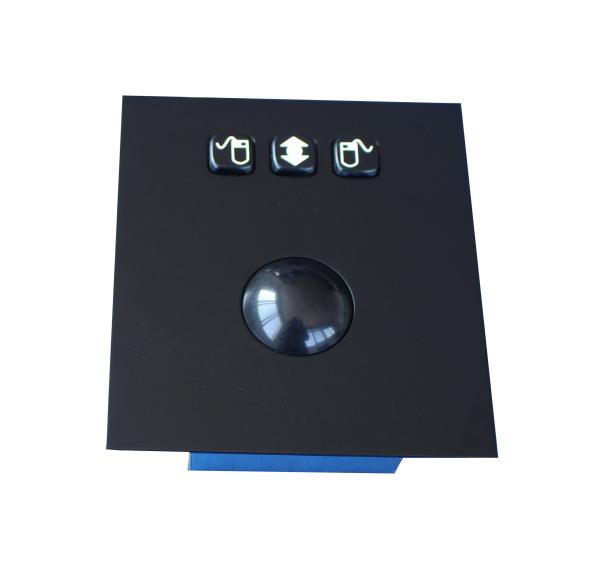

    Actual pictures:
