    12 keys IP65 dust proof long stroke stainless steel keypad with top panel mounting

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A68KP-AC
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    12 keys IP65 dust proof long stroke stainless steel keypad with top panel mounting


    Dot matric dust proof long stroke metal keypad programmble available


    Description:

    12 keys compact format IP65 dynamic water proof and vandal proof Stainless Steel industrial dot matrix keypad with industrial PCB with socket on the back panel for connecting electronics controller, with industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, rear stainless steel plate with mounting holes for rear panel mounting. Industrial Backlight (red/blue/white/green) optional.

    Dimension: 68mm x 90mm(front panel)


    Quick Details:

    1. Dimensions:68.0mm x 90.0mm (Front Panel)

    2. Dynamic waterproof keypad for outdoor application available

    3. rear panel mounting

    4. CE, FCC, RoHS, IP65, ESD

    5.IP65 waterproof industrial metal keypad

    6.Flexible programmble dot matric long stroke metal keypad


    APPLICATION:

    • This Keypad is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.


    MAIN FEATURE:

    • Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
    • Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
    • Waterproof execution according to IP65 protection from top panel, top stainless steel plate with flat keyboard surface for easy cleaning, threaded bolts & sealing gasket for easy tightly mounting to enclosure or panel.
    • An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm tactile perception for comfortable operation
    • key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
    • Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers. Ease of customizing with multiple languages, to accommodate foreign or custom variants.

    Specifications:


    MECHANICAL DATA

    Actuator/keys

    12 keys, 1.50mm thickness super quality SUS304 brushed stainless steel

    Switching material

    Carbon-on-Gold key switch technology

    Actuation Force

    0.6 N+/-0.1N (pressure point)

    Key travel

    2.00mm

    Lettering

    laser engraving, or raised letters

    Front pane

    Super quality SUS304 brushed stainless steel

    Actuator/keys materials

    stainless steel.

    Dimensions

    68.0mm x 90.0mm (Front Panel)

    G.W.

    0.3KG.

    Key top style

    protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

    Key Size

    14.0mm x 14.0mm for normal keys

    Switch life

    more than 10 million of operation

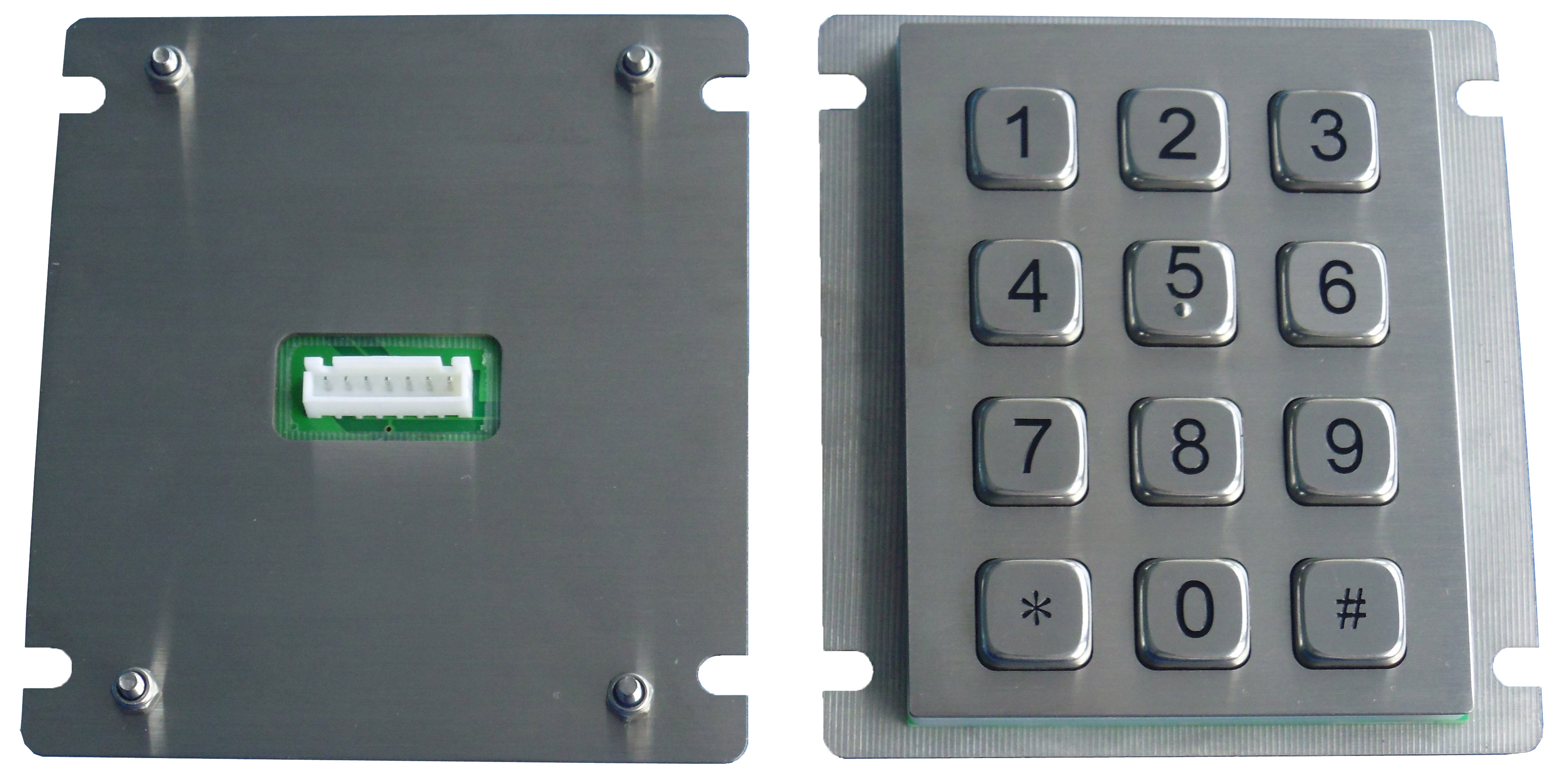

    Actual Photos:



    Our Office:



    Our Factory:
