    Dust-proof 25mm top panel mounting steel mini stainless steel optical trackball

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B88-25-OTB
    Certification : CE,FCC,ROHS,IP65,IP68,ESD
    Payment Terms : T/T, Western Union
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Supply Ability : 3000psc/month
    • Product Details
    • Company Profile

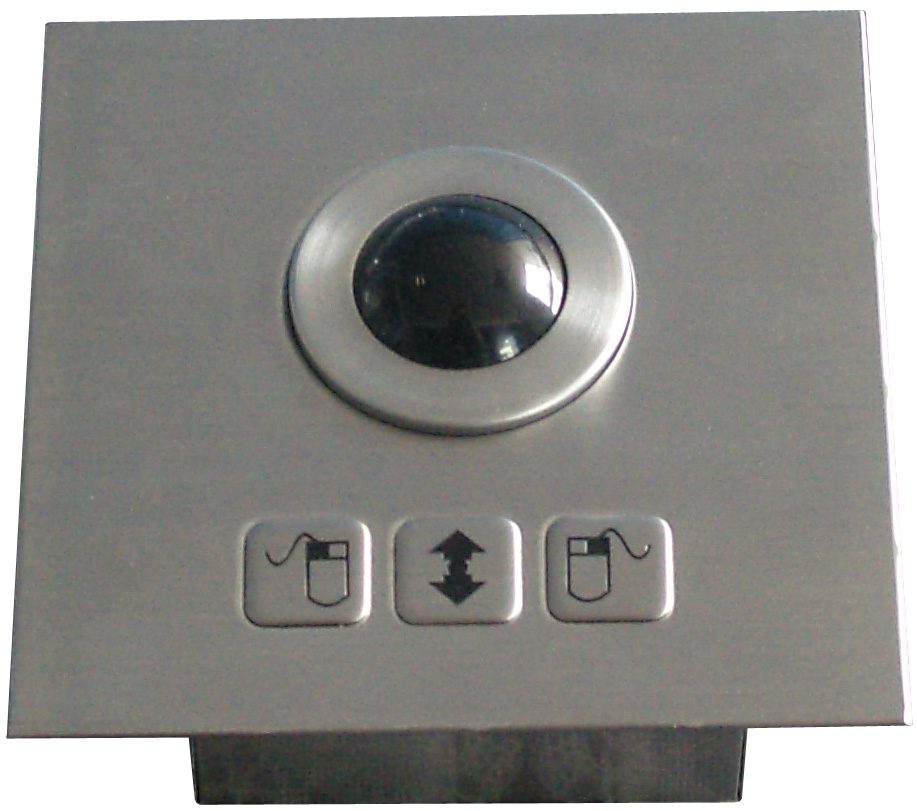

    Dust-proof 25mm top panel mounting steel mini stainless steel optical trackball


    Dust-proof 25mm top panel mounting steel mini stainless steel optical trackball


    Dimensions: 88.0mm x 88.0mm (top panel)


    Main Features:

    1. IP65 explosion proof metal stainless steel mini 25mm dimeter trackball with 0.45mm short stroke.
    2. Plug and play PS/2 interface for direct power supply
    3. No metal bearings inside, operation is very smooth, and easy without any noise.
    4. Trackball module protected and shielded by stainless steel housing

    5. All Metal Mechanicals provide for rugged, smooth, long lasting operation.
    6. Rear panel mounting solution.
    7. Professional factory offer ensured quality product and direct after-sale service
    8. Top panel mounting Vandal proof 25mm metal trackball

    Trackball Version detailed info:



    Model


    Trackball versionInterfaceDPI resolution

    K-TEK-B78-38-MTB


    M echnical trackballUSB or PS/2 interface400 DPI

    K-TEK-B78-38-OTB


    Optical trackballUSB or PS/2 interface800 DPI

    K-TEK-B78-38-LTB

    Laser trackballUSB or PS/2 interface

    1200 DPI


    TECHNICAL SPECIFICATION:


    ITEMSPECIFICATION
    MechanicalKey3 keys, quality brushed stainless steel
    Key top styleNon-protuberant rectangular Keys,
    Front PlateQuality brushed stainless steel
    Key Travel0.45mm
    Ball diameter25.4mm/1.0' (19mm, 25mm, 36mm 40mm also available)
    Key switch lifespanmore than 5 Mio actuations
    Track ball lifespan> 10 Mio revolutions
    Back Metal CoverRear side integrated electronics protected by a metal cover
    Actuation Force1.0N to 3.0N
    Mounting RackStainless steel
    Dimension

    Dimensions with 25mm track ball,

    Front plate (W x H): 88.0mm x 88.0mm

    InterfacePS2, USB are available, Y type cable with ports of PS2 and USB
    ElectricalPower supply5V DC+ 10%, keyboard interface
    Protection levelIP65 (dynamic), NEMA3
    EMC StandardEN55022(B)
    Power consuming≤1.00W(dynamic)
    ≤0.2W(static)
    Contact MaterialGold-on-Gold
    EnvironmentalOperating temperature-20ºC~+ 60º C
    Storage temperature- 30ºC~+ 70ºC
    Operating RH30~90%
    Atmospheric pressure60~106Kpa.
    ReliableCertificatesRoHS compliant, CE and FCC certified. ESD
    MTBF>50000h
    MTTR< 30min
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    Packing DetailsEach unit to a suitable brown box, suitable brown boxes to a standard export carton.
