    IP65 scratch proof USB Metal Trackball Pointing Device / laser trackball for industrial computer

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B83-38-TB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Supply Ability : 3000psc/month
    • Product Details
    • Company Profile

    IP65 scratch proof USB Metal Trackball Pointing Device / laser trackball for industrial computer


    IP65 scratch proof USB Metal Trackball Pointing Device / laser trackball for industrial computer


    Dimensions: 83.0 x 110.0mm (top panel)


    Main Features:

    1. IP65 dynamic rated vandal proof stainless steel laser trackball
    2. Plug and play PS/2 interface for direct power supply
    3. No metal bearings inside, operation is very smooth, and easy without any noise.

    4. Trackball module protected and shielded by stainless steel housing
    5. 3 sealed stainless steel mouse buttons designed for right & left clicking and scrolling up and down with ball rolling
    6. Rear panel mounting solution.
    7. Professional factory offer direct quick product and after-sale service

    Specifications:


    ITEM

    SPECIFICATION

    Mechanical

    Key

    2 or 3 keys, quality brushed stainless steel buttons

    Key top style

    round sealed stainless steel buttons with tactile feeling

    Front Plate

    Quality brushed stainless steel

    Key Travel

    1.00 mm

    Ball diameter

    38.1mm/1.50' (16mm, 19mm, 25mm also available)

    Key switch lifespan

    more than 5 Mio actuations

    Track ball lifespan

    > 10 Mio revolutions

    Back Metal Cover

    Rear side integrated electronics protected by a metal cover

    Actuation Force

    1.0 N to 3.0 N

    Mounting Rack

    Aluminum alloy

    Dimension

    Dimensions with 38.0mm track ball,

    Front plate (LxW ): 83.0 x 110.0mm

    Overall ((LxW xH): 107.0 x 134.0 x 40.7mm

    Interface

    PS2, USB are available, Y type cable with ports of PS2 and USB

    Electrical

    Power supply

    5V DC+ 10%, mouse interface

    Protection level

    IP65 dynamic (front panel), NEMA4X, IK10

    EMC Standard

    EN55022(B)

    Power consuming

    ≤1.0W(dynamic)

    ≤0.2W(static)

    Contact Material

    Stainless steel switch

    Environmental

    Operating temperature

    -20°C-+ 60°C

    Storage temperature

    - 30°C-+ 70°C

    Operating RH

    30-90%

    Atmospheric pressure

    60-106Kpa.

    Reliable

    Certificates

    RoHS compliant, CE and FCC certified. IP65 front panel, ESD

    MTBF

    >50000H

    MTTR

    < 30min

    OS

    OS is under All windows, Linux, Unix, Mac OS9 / OSX

    Packing Details

    Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.

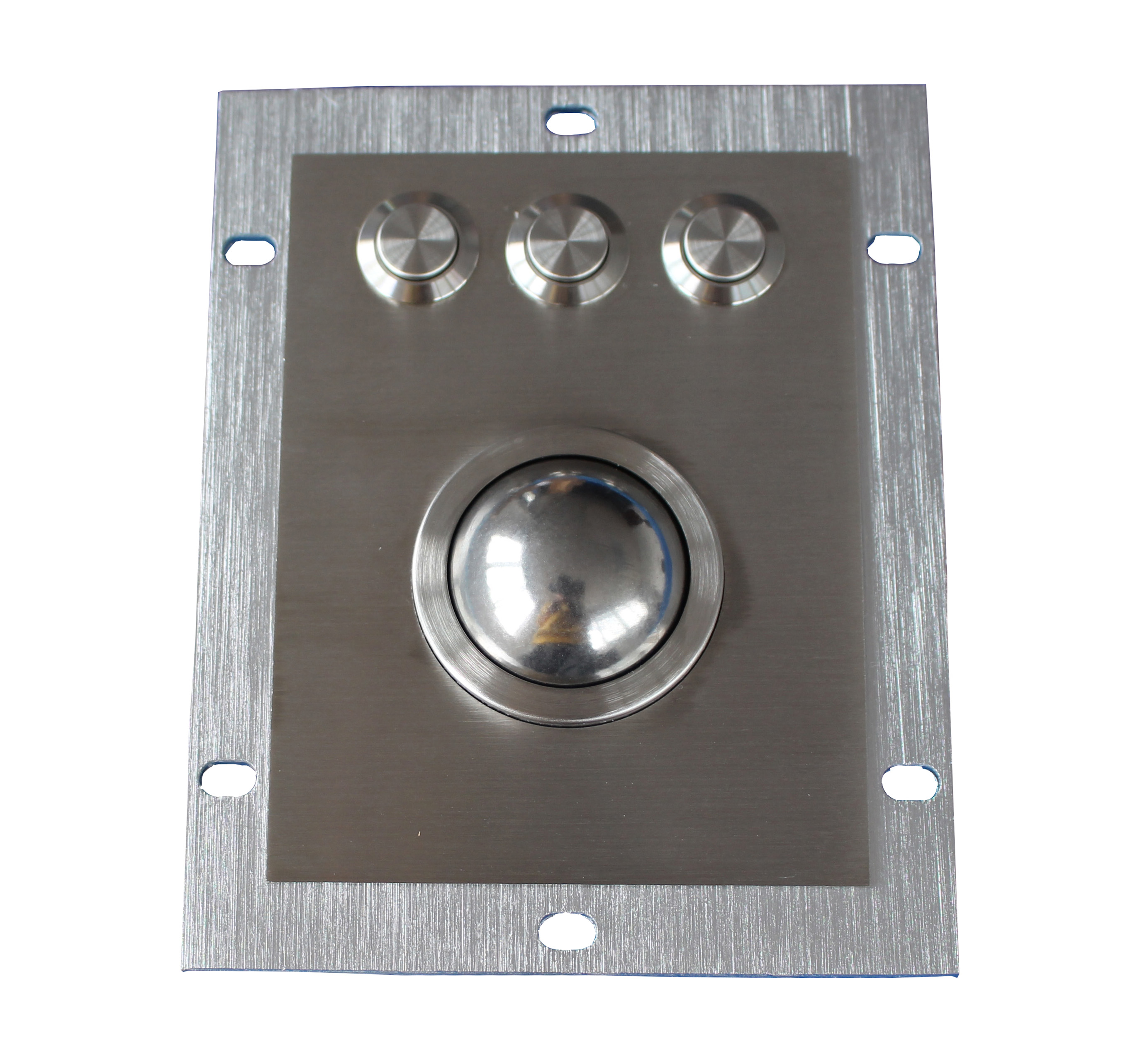

    Actual Photos:
