IP68 Metal Stainless steel Trackball Pointing Device with 800 DPI optical trackball module

Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap IP68 Metal Stainless steel Trackball Pointing Device with 800 DPI optical trackball module from wholesalers

    Buy cheap IP68 Metal Stainless steel Trackball Pointing Device with 800 DPI optical trackball module from wholesalers
    • Buy cheap IP68 Metal Stainless steel Trackball Pointing Device with 800 DPI optical trackball module from wholesalers
    • Buy cheap IP68 Metal Stainless steel Trackball Pointing Device with 800 DPI optical trackball module from wholesalers
    • Buy cheap IP68 Metal Stainless steel Trackball Pointing Device with 800 DPI optical trackball module from wholesalers

    IP68 Metal Stainless steel Trackball Pointing Device with 800 DPI optical trackball module

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-25-OTB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Price : to be quoted
    • Product Details
    • Company Profile

    IP68 Metal Stainless steel Trackball Pointing Device with 800 DPI optical trackball module


    P68 dynamic washable stainless steel optical trackball with 800 DPI


    Descriptions: IP68 dynamic rated washable 25mm stainless steel optical trackball MODULE with 800 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise.


    Trackball Info:

    ModelTrackball versionInterfaceDPI resolution
    K-TEK-25-MTBMechnical TrackballUSB or PS/2 interface400 DPI
    K-TEK-25-OTBOptical TrackballUSB or PS/2 interface800 DPI
    K-TEK-25-LTBLaser TrackballUSB or PS/2 interface1200 DPI

    MAIN FEATURE:

    Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.

    Available 50mm,38mm, 25mm, and 16mm diameter stainless steel or hard phenolic resin ball for smooth, durable operation and precise cursor positioning.

    Rate sensitive dynamic resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.


    TECHNICAL SPECIFICATION:

    ITEMSPECIFICATION
    Mechanical DataBall diameter25mm/1.0''
    Track ball lifespan> 2 millions scrolling
    Dimension25.0 mm (1’’) diameter for ball, 49.0mm x 44.5mm (front panel)
    InterfacePS2, USB are available, Y type cable with ports of PS2 and USB
    ElectricalPower supplyDC +5V±5%
    Protection levelIP68 (dynamic)
    EMC StandardEN 55032:2015, EN 55035:2017
    Power consuming≤1.00W(dynamic)
    ≤0.2W(static)
    EnvironmentalOperating temperature-20ºC~+ 65º C
    Storage temperature-30ºC~+ 75ºC
    Operating RH30~90%
    Atmospheric pressure60~106Kpa.
    ReliableCertificatesRoHS compliant, CE and FCC certified
    MTBF>20000H
    MTTR< 30min
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
    Packing DetailsEach unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
    ApplicationIndustrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas, maritime etc.

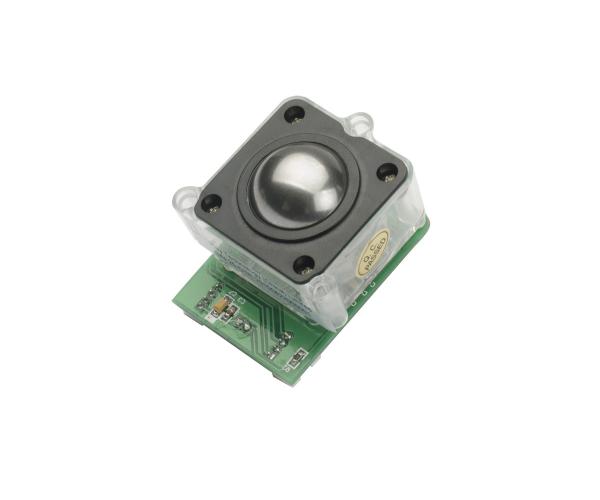

    Actual Photos:


    Our Factory:


    Quality IP68 Metal Stainless steel Trackball Pointing Device with 800 DPI optical trackball module for sale
