    IP68 Industrial washable medical laser trackball pointing device with USB

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B107F-38-OTB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    IP68 Industrial washable medical laser trackball pointing device with USB


    38mm Industrial washable medical laser trackball pointing device with USB


    Description:


    IP65 dynamic rated vandal proof stainless steel optical trackball with IP65 dynamic sealed stainless mouse buttons and IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with +800 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, optical trackball module protected and shielded by stainless steel housing, 3 sealed stainless steel mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, stainless steel top plate with threaded bolts for top panel mounting solution.



    MAIN FEATURE:


    • IP68 dynamic waterproof (from the top)
    • Solid State Optical Navigation Technology
    • Fixed Ball Versions
    • Maintenance free with no moving parts
    • Intrinsically and ESD safe operation
    • Quadrature, PS/2 and USB outputs
    • Anti-vandal options
    • Output cables and switch input cables (option)
    • Decontamination Friendly

    TECHNICAL SPECIFICATION:


    MechanicalKey3 keys, sealed stainless steel buttons
    Key top stylesealed round stainless steel buttons with tactile feeling
    Front PlateQuality brushed SUS304 stainless steel
    Key Travel0.45mm
    BallEpoxy Resin with special surface treatment, 38mm/1.50'
    Key switch lifespanmore than 10 Mio actuations
    Track ball lifespan> 5 Mio revolutions
    Back Metal CoverRear side integrated electronics protected by a metal cover
    Tracking Force20 grams Nominal Continuous Friction / Scraper Ring
    Dimension

    Dimensions with 38mm track ball,

    Front plate (W x H): 107.0mm x 120.0mm

    InterfacePS2, USB are available, Y type cable with ports of PS2 and USB
    ElectricalPower supply5V DC+ 10%, keyboard interface
    Protection levelIP68 (front panel), NEMA3
    EMC StandardEN55022(B)
    Power consuming≤1.00W(dynamic)
    ≤0.2W(static)
    Contact Materialsealed stainless steel buttons
    EnvironmentalOperating temperature-20ºC~+ 60º C
    Storage temperature- 30ºC~+ 70ºC
    Operating RH30~90%
    Atmospheric pressure60~106Kpa.
    ReliableCertificatesRoHS compliant, CE and FCC certified. ESD
    MTBF>50000H
    MTTR< 30min
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
    Packing DetailsEach unit to a suitable brown box, suitable brown boxes to a standard export carton

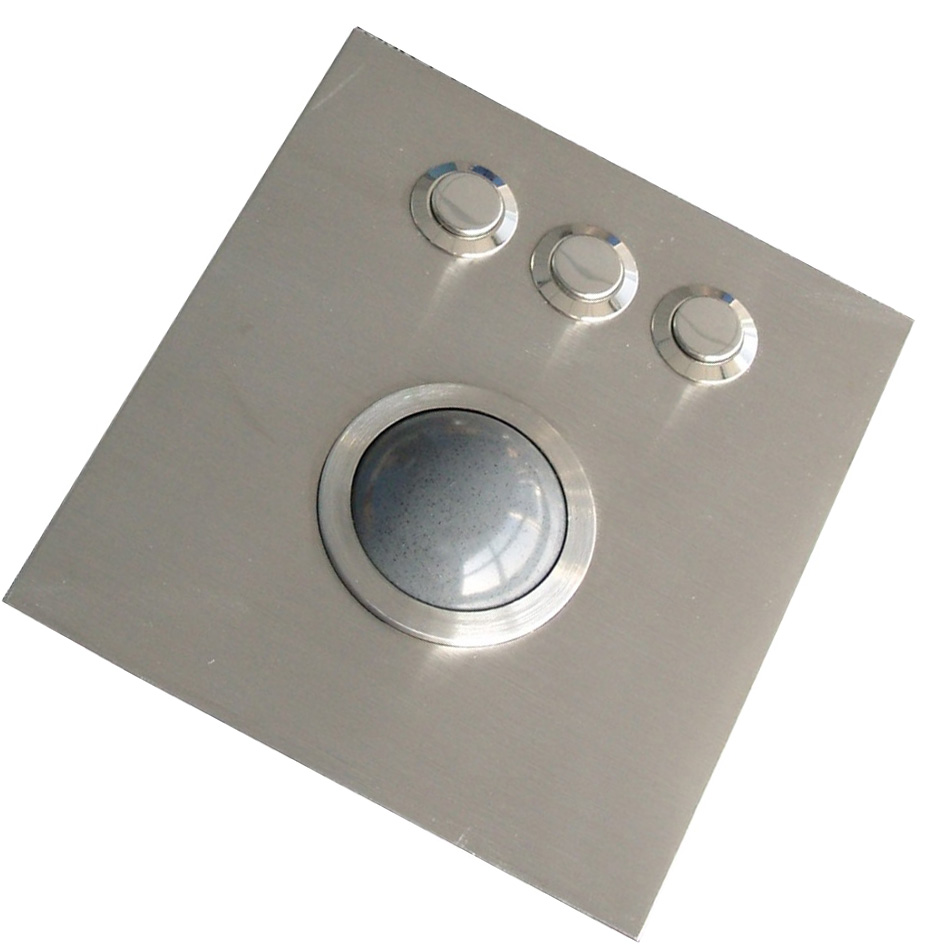

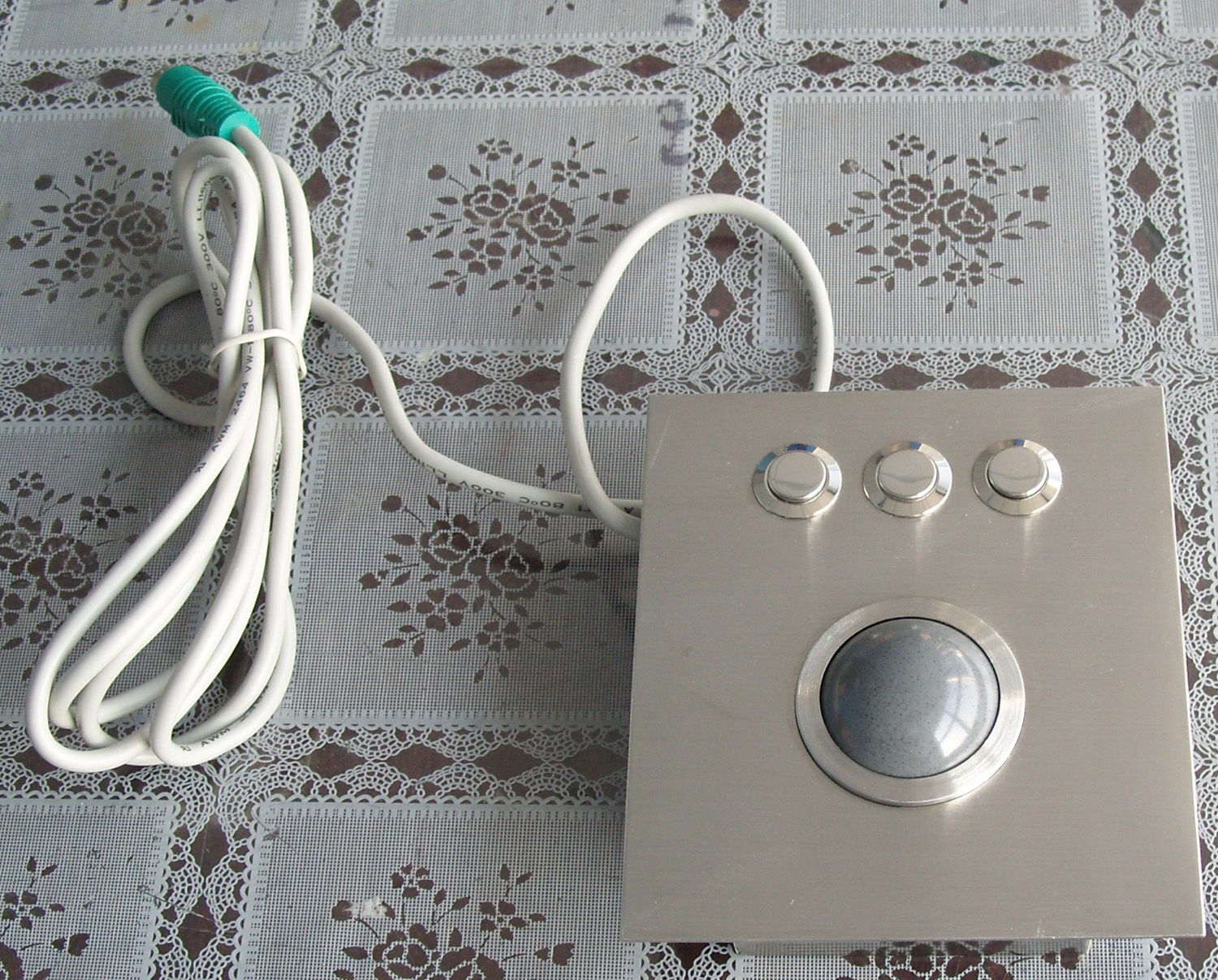

    Actual Photos:
