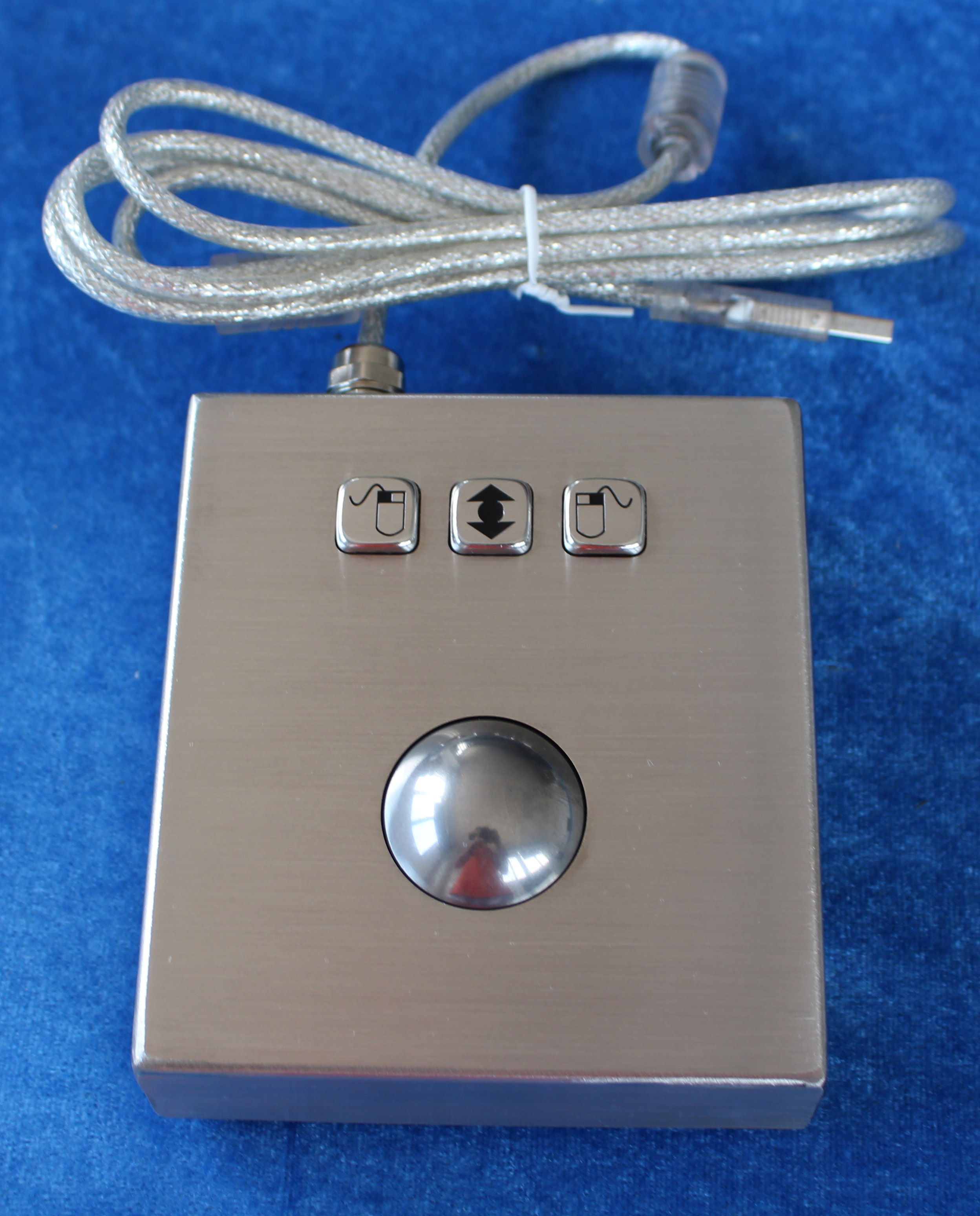

    IP65 vandal proof stand alone metal industrial optical trackball pointing device

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A107-38-OTB-DT
    Certification : CE,FCC,ROHS,IP65,IP68,ESD
    Payment Terms : T/T, Western Union, paypal
    Supply Ability : 3000pcs/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    IP65 vandal proof stand alone metal industrial optical trackball pointing device


    IP65 vandal proof stand alone metal industrial optical trackball pointing device


    Quick detailes:

    1. Any customized layout and keycode warmly accept.

    2. Made of abrasion-resistant stainless steel

    3. Designed to operate in harsh environments, ideal for web payphones, kiosks and other demanding applications

    4. Compatible with OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX
    COMMUNICATION PARAMETER.

    5. Plug and Play PS/2 or USB interface

    6. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast.


    DESCRIPTIONS: IP65 static rated vandal proof Stainless Steel industrial Trackball with IP65 static 38mm stainless
    Steel optical trackball module with 800 DPI resolutions, trackball module protected and shielded by stainless steel
    housing, with movable stand alone desk top version or mountable stand alone desk top versions with stainless steel
    housing.


    Main Features:


    Trackball Versionoptical trackball
    Trackball Resolution800DPI Resolution optional
    Trackball Diameter38mm
    Key Travel2mm 3 long stroke mouse button
    ColourBrushed stainless steel or black titanium electroplated
    InterfaceUSB or PS/2 interface optional
    PerformanceWaterproof, dustproof, explosion proof, vandal proof etc.
    Mounting versionStand alone movable mount

    Specifications:


    MECHANICAL DATASwitching material: Carbon-on-Gold
    Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
    Key Travel: 2.0mm
    Lettering: laser engraving, or raised letters.
    Front panel: brushed stainless steel
    Actuator/keys materials: brushed stainless steel
    Dimensions:107.0mm x 120.0mm x 32.0mm (L x W x H)
    G.W. 0.8KGs

    ELECTRICAL DATA
    Power supply voltage: 5V DC.
    Power Consumption: Under 30mA for operation
    Electrical lifetime: > 5 years
    EMC:EN55022(B)
    Communication interface: PS2, USB or RS232 are all available.

    ENVIRONMENTAL ADAPTABILITY

    Operating temperature:-20°C to +60°C
    Storage temperature: -30°C to +70°C
    Operating RH: 30-90%
    Atmospheric pressure: 60-106Kpa.


    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection Level: IP65(front panel)
    Vandal resistant IK09
    Key Lifespan >10 million actuations .
    MTBF >50000H.
    MTTR <30min.
