    IP65 Stainless steel Industrial pointing device rugged trackball Mechanical

    Ask Lasest Price
    Model Number : K-TEK-B67-25-TB-BT
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Brand Name : IKB-MKB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    • Product Details
    • Company Profile

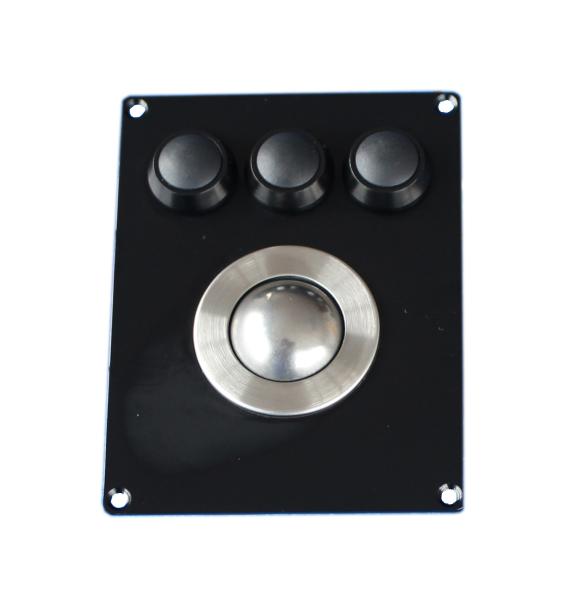

    IP65 Stainless steel Industrial pointing device rugged trackball Mechanical

    IP65 top panel black rugged short stroke industrial rugged trackball

    Special Features:


    1. IP65 rate rugged 25.00mm trackball.


    Keyboard Style

    Trackball Match

    Interface Available

    Trackball IP Rate

    K-TEK-B67-25-MTB

    Keyboard;

    400 DPI Mechanical Trackball

    PS/2;USB

    IP65 static

    K-TEK-B67-25-OTB

    Keyboard;

    800 DPI Optical Trackball

    PS/2;USB

    IP68 dynamic



    2. 3 trackball modules versions:

    2.1 IP65 static mechanical trackball module with 400 DPI

    2.2 IP68 dynamic optical trackball module with 800 DPI

    3. Industrial PCB with carbon-on-gold key switch technology

    4. With key stroke 0.45 mm with extremely good tactile feeling.

    5. Top panel mounting trackball with mounting holes.

    6. USB port,RS232 port.

    7. Industrial level,military level.


    Specifications:


    ITEM

    SPECIFICATION

    Mechanical

    Key

    3 keys, quality black stainless steel

    Key top style

    Non-protuberant rectangular Keys,

    Front Plate

    Quality brushed black stainless steel

    Key Travel

    0.45mm

    Ball diameter

    25.4mm/1.0' (19mm, 25mm, 36mm 40mm, 50mm also available)

    Key switch lifespan

    more than 5 Mio actuations

    Track ball lifespan

    > 10 Mio revolutions

    Back Metal Cover

    Rear side integrated electronics protected by a metal cover

    Actuation Force

    1.0N to 3.0N

    Mounting Rack

    Stainless steel

    Dimension

    Dimensions with 25mm track ball,

    Interface

    PS2, USB are available, Y type cable with ports of PS2 and USB

    Electrical

    Power supply

    5V DC+ 10%, keyboard interface

    Protection level

    IP65 (dynamic), NEMA4X,IK10

    EMC Standard

    EN55022(B)

    Power consuming

    ≤1.00W(dynamic)

    ≤0.2W(static)

    Contact Material

    Gold-on-Gold

    Environmental

    Operating temperature

    -20ºC~+ 60º C

    Storage temperature

    - 30ºC~+ 70ºC

    Operating RH

    30~90%

    Atmospheric pressure

    60~106Kpa.

    Reliable

    Certificates

    RoHS compliant, CE and FCC certified. ESD

    MTBF

    >50000h

    MTTR

    < 30min

    OS

    OS is under All windows, Linux, Unix, Mac OS9 / OSX

    Packing Details

    Each unit to a suitable brown box, suitable brown boxes to a standard export carton.
