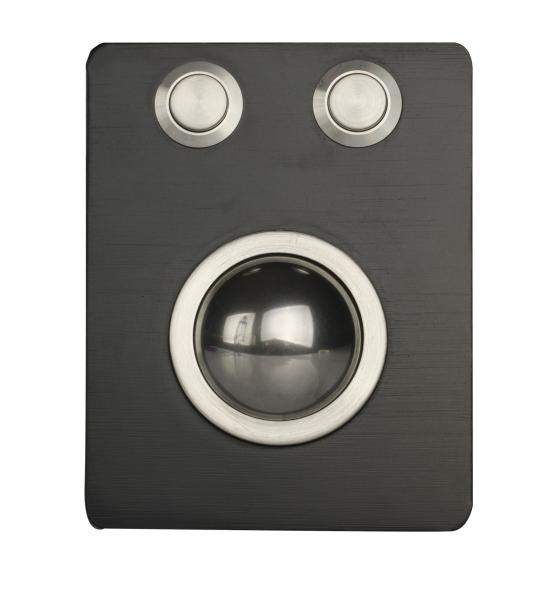

    Mini Compact Industrial Black Metal Trackball with 2 Robust mouse Buttons

    Ask Lasest Price
    Model Number : K-TEK-B78-38-OTB-BT
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Brand Name : IKB-MKB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    • Product Details
    • Company Profile

    Mini Compact Industrial Black Metal Trackball with 2 Robust mouse Buttons

    Mini Compact Industrial Black Metal Trackball with 2 Robust mouse Buttons


    Special Features:


    1. 38.0mm trackball with 2 buttons.

    2. High quality black titanium surface treatment on the frong panel.

    3. Top panel mounting solution.

    4. No metal bearings inside, operation is very smooth, and easy without any noise

    5. Rubber sealing gasket under top stainless steel plate

    6. IP65 dynamic sealed & ruggedized stainless mouse buttons

    7. IP68 dynamic rated washable 38.0mm stainless steel trackball module

    8. Can be mounted horizontally, and vertically.

    9. USB, PS2 options.


    Specifications:


    ITEM

    SPECIFICATION

    Mechanical

    Key

    2 keys, IP65 dynamic quality stainless steel button

    Key top style

    sealed round stainless steel buttons with tactile feeling

    Front Plate

    Quality brushed stainless steel

    Key Travel

    1.00 mm

    Ball diameter

    38.1mm/1.50" (19mm, 25mm, 36mm 40mm also available)

    Key switch lifespan

    more than 5 Mio actuations

    Track ball lifespan

    > 10 Mio revolutions

    Actuation Force

    1.0N to 3.0

    Mounting Rack

    top stainless steel plate with mounting screw bolts

    Dimension

    Dimensions with 38mm track ball,

    Front plate (LxW): 78.0mm x 100.0mm

    Interface

    PS2, USB are available, Y type cable with ports of PS2 and USB

    Electrical

    Power supply

    5V DC+ 10%, mouse interface

    Protection level

    IP65 dynamic (front panel), NEMA4X, IK10

    EMC Standard

    EN55022(B)

    Power consuming

    ≤1.00W(dynamic)

    ≤0.2W(static)

    Contact Material

    sealed stainless steel buttons

    Environmental

    Operating temperature

    -20ºC~+ 60º C

    Storage temperature

    - 30ºC~+ 70ºC

    Operating RH

    30~90%

    Atmospheric pressure

    60~106Kpa.

    Reliable

    Certificates

    RoHS compliant, CE and FCC certified, ESD

    MTBF

    >50000H

    MTTR

    < 30min

    OS

    All Windows, Linux, Unix, Mac OSX

    Packing Details

    Each unit to a suitable brown box, suitable brown boxes to a standard export carton.
