    Rubber Waterproof Rugged Silicone Keyboard With Touchpad IP65 Dynamic

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M275TP-FN-OEM-BL-IL
    Certification : CE, FCC, ROHS, IP67, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Supply Ability : 3000psc/month
    • Product Details
    • Company Profile

    Rubber Waterproof Rugged Silicone Keyboard With Touchpad IP65 Dynamic

    Red illunitaed Panel Mounted Silicone Industrial Ergonomic Touchpad Keyboard With USB/PS2


    DESCRIPTION:

    89 keys IP65 dynamic sealed and ruggedized silicone rubber Hygienic industrial keyboard with full keyboard functionalities with sealed & ruggedized tough touchpad for fast and accurate cursor position, 12 FN keys (F1, F2...F11, F12) are on top line for easy operation, with industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment,FN + CLEAN key to lock/disable the keyboard for easy cleaning without needing to take away the keyboard from PC, industrial PCB sealed and ruggedized with top rubber for top panel mounting, industrial level with adjustable backlight included.With optional stainless steel back plate sealed and ruggedized with top industrial silicone cover & industrial PCB for ruggedized structure and easymounting and sealing, stainless steel housing protects the electronics controller.


    ELECTRICAL DATA:

    Supply Voltage

    +5V DC +/-5%

    Current Rating

    30mA (non-backlight) , 150mA (with back light on)

    Lifespan

    Carbon-on-Gold key switch technology with gold PCB.

    Interface

    PS2, USB available

    OS

    All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)


    SPECIAL FEATURES:
    1. IP65 dynamic rated ruggedized industrial silicone rubber keyboard with full keyboard functionalities

    2. with sealed & ruggedized tough touchpad for fast and accurate cursor position

    3. adjustable industrial backlight included

    4. with industrial PCB with carbon-on-gold key switch technology with long stroke 1.50mm with tactile feeling for

    fast and accurate data input without any noise
    5. with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under

    harsh environment
    6. FN+Clean to lock/disable the keyboard for easy cleaning without needing to take the keyboard from PC
    7. top panel mounted with optional stainless steel back plate sealed with top ruggedized industrial silicone

    cover & industrial PCB for ruggedized structure and easy mounting and sealing
    8. stainless steel housing protects the electronics controller.

    9. keyboard with NVIS-compliant red adjustable backlighting, while NVIS backlighting makes this keyboard

    ideal for aviation or vehicle applications where night vision goggles are necessary

    10. keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality

    11. ease of customizing with multiple languages, to accommodate foreign or custom variants

    12. PS/2, USB connection cables that plug directly into computer like keyboard operations.

    13. military level optional

    14. Dimensions: 275.0mm x 169.60mm (top panel)


    ENVIRONMENTAL ADAPTABILITY:

    Operating temperature:-20oC to +60oC
    Storage temperature: :-30oC to +70oC
    Operating RH: 100%
    Atmospheric pressure: 60-106Kpa
    Shock: 3x11 ms pulses of 50g on each of 3 axes
    Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
    Flammability
    PRINTED CIRCUIT BOARD: 94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V


    RELIABILITY:
    RoHS , CE, FCC, ESD
    Protection Level: IP65, NEMA 6P
    Key Lifespan >10 million actuations
    MTBF >50000H
    MTTR <30min


    Actual Photos:

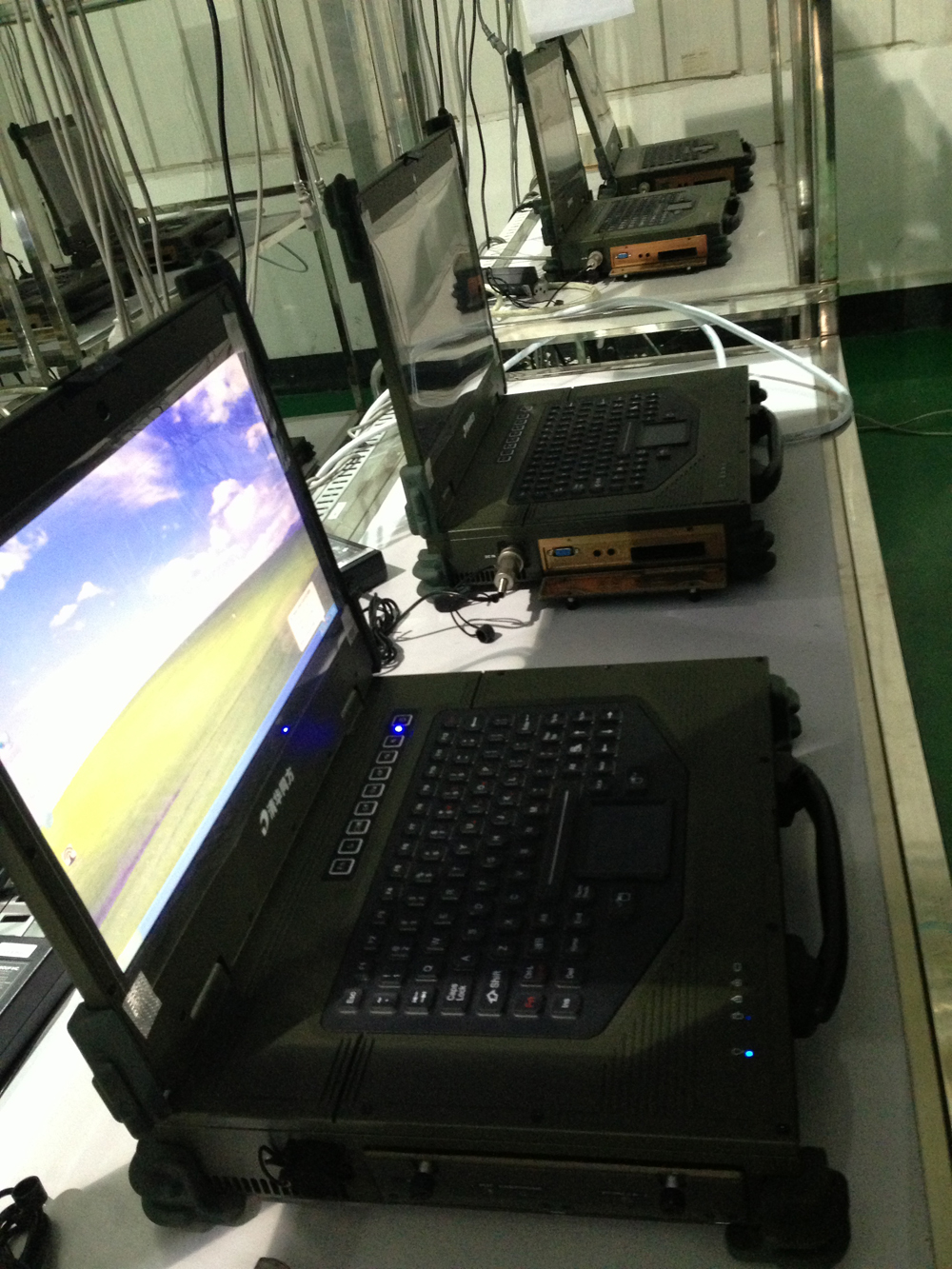

    More View of Application:


    Our Factory:
