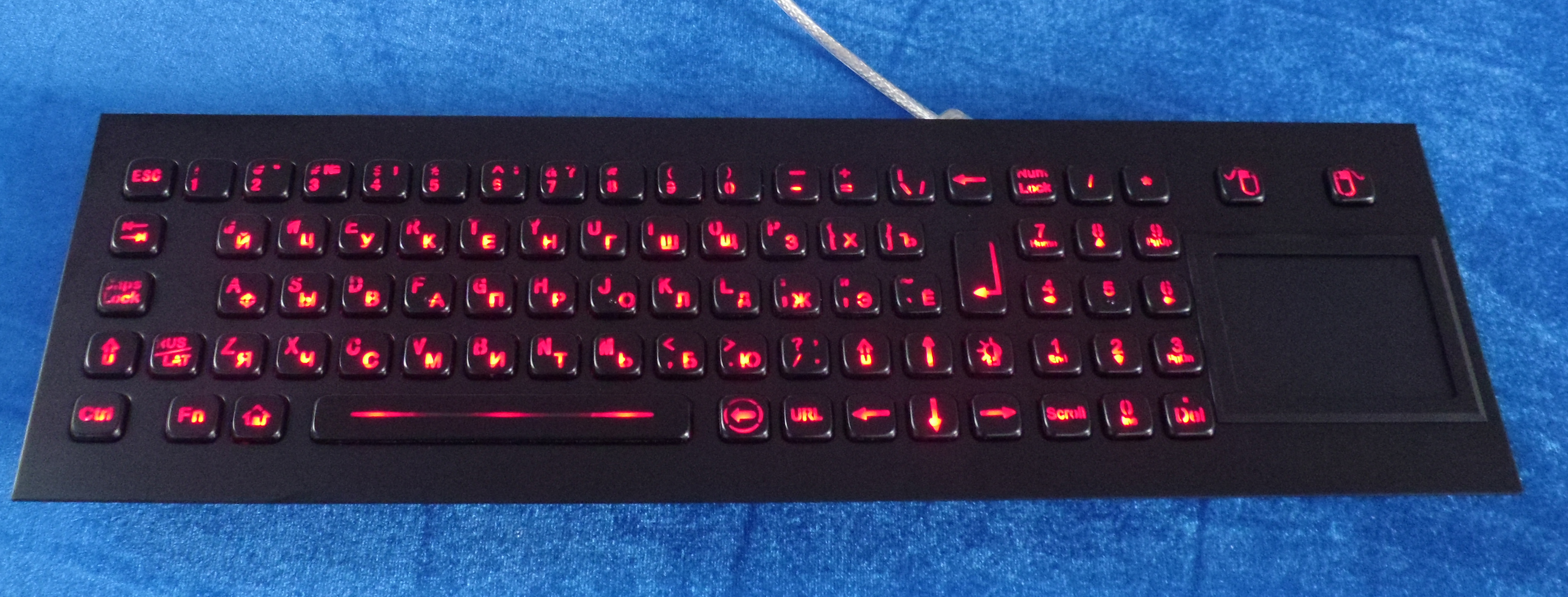

Top panel mount Backlit USB stainless Keyboard with touchpad and numeci keypad

Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Top panel mount Backlit USB stainless Keyboard with touchpad and numeci keypad from wholesalers

    Buy cheap Top panel mount Backlit USB stainless Keyboard with touchpad and numeci keypad from wholesalers
    • Buy cheap Top panel mount Backlit USB stainless Keyboard with touchpad and numeci keypad from wholesalers
    • Buy cheap Top panel mount Backlit USB stainless Keyboard with touchpad and numeci keypad from wholesalers
    • Buy cheap Top panel mount Backlit USB stainless Keyboard with touchpad and numeci keypad from wholesalers
    • Buy cheap Top panel mount Backlit USB stainless Keyboard with touchpad and numeci keypad from wholesalers

    Top panel mount Backlit USB stainless Keyboard with touchpad and numeci keypad

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A400TP-KP-BL-BT
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Top panel mount Backlit USB stainless Keyboard with touchpad and numeci keypad

    Top panel mount Backlit USB stainless Keyboard with touchpad and numeci keypad​


    Descriptions:
    1. 83 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard
    2. with IP65 dynamic sealed & ruggedized tough touchpad for fast and accurate cursor position,
    3. industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with

    extremely good tactile feeling for fast and accurate data input without any noise.
    4. With numeric keypad (optional PINPAD with Encryption Electronics Controller supporting DES/TDES)
    5. 2 mouse buttons designed for right & left clicking
    6. High quality scratch-proof durable black titanium electroplated on the top stainless steel plate

    and all keys.
    7. With adjustable industrial backlight optional;
    8. top panel mounting solution.

    9. PS2 or USB interface are available.


    MECHANICAL DATA

    Key

    82 keys, super quality brushed stainless steel

    Key top style

    Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available

    Key Size

    14.0mm x 14.0mm for normal keys,
    14.0mm x 28.0mm for enter key,
    14.0mm x 100mm for space bar.

    Key travel

    2.0mm

    Switch life

    more than 10 million of operations

    Actuation Force

    0.6N +/-0.1N for key 14.0mm x 14.0mm (pressure point)
    1.2N +/-0.1N for key 14.0mm x 28.0mm (pressure point)

    Front Plate

    1.5mm thickness super quality brushed stainless steel

    Back Plate

    3.0mm thickness brushed and oxidized aluminium

    Lettering

    Sunk laser legends & characters in high quality ink

    Actuator/keys materials

    stainless steel

    G.W.

    2.30KGs

    Dimension

    400.0mm x 124.0mm (top panel)


    ELECTRICAL DATA:

    Supply Voltage

    +5V DC +/-5%
    Current Ratingappr. 30mA
    EMC StandardIt is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
    EMIEN 55022: 2010
    EMSEN 55024:2010
    Lifespan> 5 years
    Switch Contact Material

    Carbon-on-Gold key switch technology PCB

    Interface

    PS2, USB available

    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

    If needed, numeric keypad is available to be with encryption electronics controller supporting DES/Triple DES
