    IP65 Vandal proof Top panel black stainless steel waterproof stainless steel optical trackball

    Ask Lasest Price
    Model Number : K-TEK-A107-38-TB-BT
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Brand Name : IKB-MKB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    • Product Details
    • Company Profile

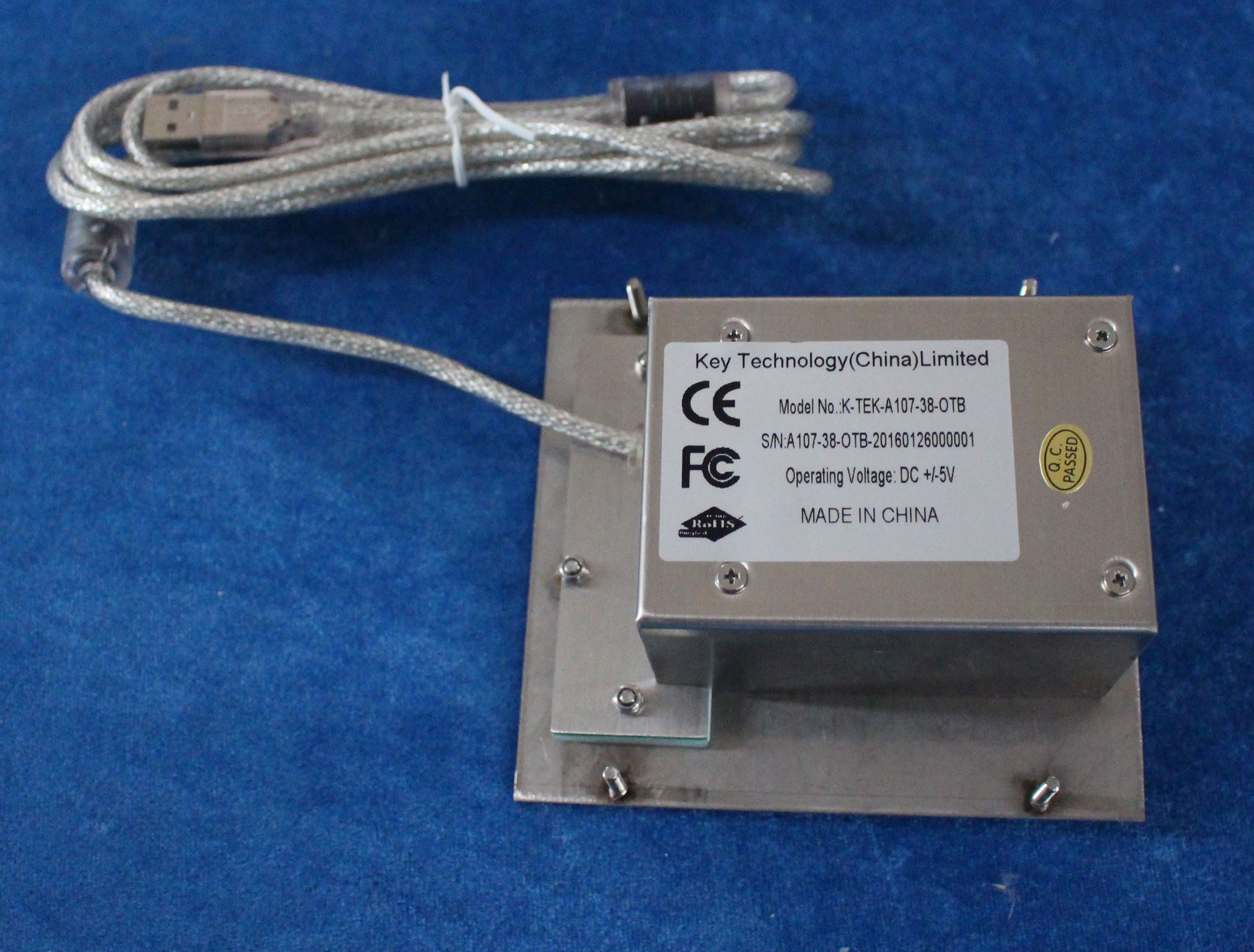

    IP65 Vandal proof Top panel black stainless steel waterproof stainless steel optical trackball

    Top panel black stainless steel waterproof industrial mouse with trackball


    DESCRIPTION: IP65 dynamic rated Vandal proof Stainless Steel industrial Trackball with IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with +800 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, laser trackball module protected and shielded by stainless steel housing, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, stainless steel top plate with threaded bolts for top panel mounting solution.


    DIMENSIONS: 107.0mm x 120.0mm (top panel)


    MAIN FEATURE

    • Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
    • All Metal Mechanicals provide for rugged, smooth, long lasting operation.
    • Available 40mm, 38mm, 25mm, 22mm, 19mm and 16mm Diameter Stainless steel or Hard Phenolic Resin Ball for smooth, durable operation and precise cursor positioning.
    • Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
    • Teflon Ball Shields are available for dirt and water protection in harsh environments.

    Applications:


    This trackball is mainly targeted for use for:
    A: unsupervised or semi -supervised positions of varied access applications,
    B: internet terminals and information kiosks at universities,
    C: shopping malls, hotels, airports, railway stations and other public areas,
    D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.


    Specifications:


    ITEM

    SPECIFICATION

    Mechanical

    Key

    2 keys, quality brushed stainless steel

    Key top style

    Protuberant Rectangular Keys,

    Front Plate

    Quality brushed stainless steel

    Key Travel

    2.0mm

    Ball diameter

    38.1mm/1.50" (19mm, 25mm, 36mm 40mm also available)

    Key switch lifespan

    more than 10 Mio actuations

    Track ball lifespan

    > 10 Mio revolutions

    Back Metal Cover

    Rear side integrated electronics protected by a metal cover

    Actuation Force

    1.0N to 3.0N

    Mounting Rack

    Aluminum alloy

    Dimension

    Dimensions with 38mm track ball,

    Front plate (W x H): 83.0 x 110.0mm, Back panel (W x H ): 107.0 x 120.0mm (LxW)

    Interface

    PS2, USB are available, Y type cable with ports of PS2 and USB

    Electrical

    Power supply

    5V DC+ 10%, keyboard interface

    Protection level

    IP65 (front panel), NEMA4X,IK09

    EMC Standard

    EN55022(B)

    Power consuming

    ≤1.00W(dynamic)

    ≤0.2W(static)

    Contact Material

    Gold/Carbon

    Environmental

    Operating temperature

    -20ºC~+ 60º C

    Storage temperature

    - 30ºC~+ 70ºC

    Operating RH

    30~90%

    Atmospheric pressure

    60~106Kpa.

    Reliable

    Certificates

    RoHS compliant, CE and FCC certified,ESD

    MTBF

    >50000h

    MTTR

    < 30min

    OS

    OS is under All windows, Linux, Unix, Mac OS9 / OSX

    Packing Details

    Each unit to a suitable brown box, suitable brown boxes to a standard export carton
