Weather Proof Desktop Metal Industrial Keyboard Stainless Steel For Coal Mine

Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Weather Proof Desktop Metal Industrial Keyboard Stainless Steel For Coal Mine from wholesalers

    Buy cheap Weather Proof Desktop Metal Industrial Keyboard Stainless Steel For Coal Mine from wholesalers
    • Buy cheap Weather Proof Desktop Metal Industrial Keyboard Stainless Steel For Coal Mine from wholesalers

    Weather Proof Desktop Metal Industrial Keyboard Stainless Steel For Coal Mine

    Ask Lasest Price
    Model Number : K-TEK-A340KP-FN-DT-DWP
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    Supply Ability : 3000psc/month
    Brand Name : IKB-MKB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : to be quoted
    • Product Details
    • Company Profile

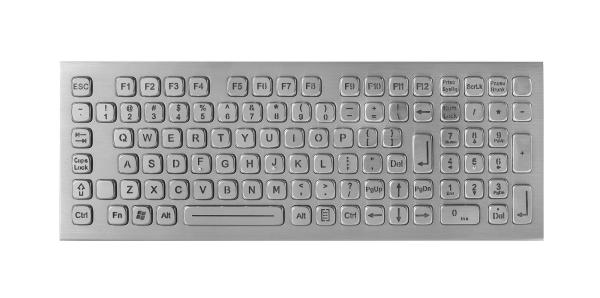

    Weather Proof Desktop Metal Industrial Keyboard Stainless Steel For Coal Mine


    METAL DESKTOP KEYBOARD


    DESCRIPTION: 102 keys compact format IP68 dynamic water proof vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial PCB electronics controller with carbon-on-gold key switch technology with stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with integrated numeric keypad, function keys F1, F2..F10, F11, F12 are on the top panel for easy operation. Movable stand alone DESK TOP VERSION. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion, desktop version.


    DIMENSIONS: 340.0mm x 125.0mm


    MECHANICAL DATA
    Actuator/keys102 keys, super quality SUS304 brushed stainless steel
    Key top styleProtuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
    Key travel1.50±0.10mm
    Actuation Force1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point)
    Front Plate1.5mm thickness super quality brushed stainless steel
    Back Plate1.5mm thickness super quality brushed stainless steel
    Switch lifemore than 5 million of operations
    G.W.1.80KGs
    ELECTRICAL DATA
    Supply Voltage+5V DC ± 5%
    Current Rating30mA
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialCarbon-on-Gold key switch technology PCB
    InterfacePS2, USB available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Operating RH30-90%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection LevelIP68
    Vandal resistantIK08
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSIndustrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
