    81 Keys Multimedia Keyboard Industrial Metal Keyboard Washable For Outdoor custom keyboard

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B340KP-DWP
    Certification : CE, FCC, ROHS, IP65, IP68
    Price : To be quoted
    Payment Terms : Western Union, MoneyGram, T/T, L/C
    Supply Ability : 3000pcs/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    81 Keys Multimedia Keyboard Industrial Metal Keyboard Washable For Outdoor custom keyboard


    Metal Keyboard


    DESCRIPTION: 81 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard with industrial metal dome PCB with gold-on-gold key switch technology with short stroke (0.45±0.05mm) with excellent tactile feeling for stable and accurate data input, with integrated numeric keypad, and stainless steel top plate with threaded bolts for top panel mounting solution. FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning without error output. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.


    DIMENSIONS: 340.0mm x 125.0mm (front panel)


    MECHANICAL DATA
    Actuator/keys81 keys
    Key top styleNon-protuberant rectangular keys, laser engraved & etched legends on keys are available
    Key Size14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
    Key travel0.45±0.05mm
    Actuation Force3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)
    Front Plate1.5mm thickness super quality brushed stainless steel
    Back Plate1.5mm thickness super quality brushed stainless steel
    Switch lifemore than 1 million of operations
    G.W.2.00KGs
    ELECTRICAL DATA
    Supply Voltage+5V DC ± 5%
    Current Rating30mA
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialGold-on-Gold key switch technology PCB
    InterfacePS2, USB available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Operating RH30-90%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    METAL KEYBOARD RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection LevelIP65 dynamic (front panel)
    Vandal resistantIK09
    Key Lifespan>1 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSIndustrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

    More View:

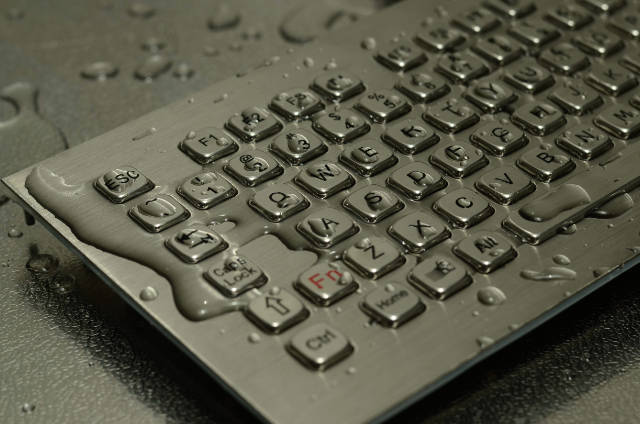

    Direct waterproof:


    Our factory:


    Quality 81 Keys Multimedia Keyboard Industrial Metal Keyboard Washable For Outdoor custom keyboard for sale
