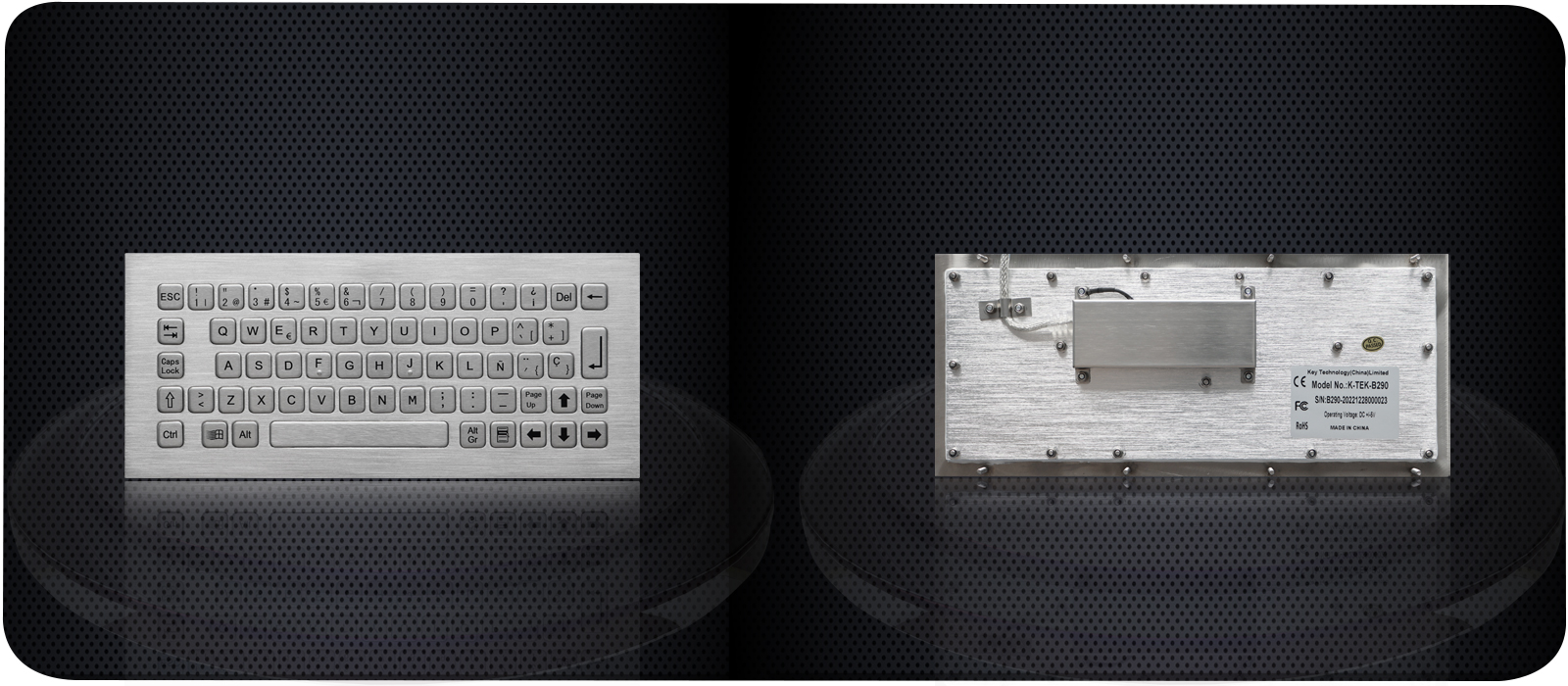

    Dustproof Top Panel Mounting Stainless Steel Keyboard With USB Or PS2 Interface

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B290
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Dustproof Top Panel Mounting Stainless Steel Keyboard With USB Or PS2 Interface


    Dustproof top panel mounting stainless steel keyboard with USB or PS2 interface


    Special Features:


    1. 66keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard
    2. industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input
    3. stainless steel top plate with threaded bolts for top panel mounting solution.
    4. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
    5. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
    6. Waterproof execution according to IP65 protection from top panel, top stainless steel plate with flat keyboard surface for easy cleaning & threaded bolts for easy tightly mounting to enclosure or panel.
    7. An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm tactile perception for comfortable operation
    8. Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
    9. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
    10. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
    11. Complete electronic modules including controller in close consultation with our customers are available.
    12. PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.



    MECHANICAL DATA
    Actuator/keys66 keys
    Key top styleNon-protuberant rectangular keys, laser engraved & etched legends on keys are available
    Key Size14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar
    Key travel0.45±0.05mm
    Actuation Force3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)
    Switch lifemore than 1 million of operations
    G.W.1.30KGs
    ELECTRICAL DATA
    Supply Voltage+5V DC ± 5%
    Current Rating30mA
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialGold-on-Gold key switch technology PCB
    InterfacePS2, USB available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Operating RH30-90%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection LevelIP65
    Vandal resistantIK09
    Key Lifespan>1 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSIndustrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
