    Industrial liquid proof keyboard , SS metal Kiosk Keyboard With 77 Keys

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A290-FN
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Industrial liquid proof keyboard , SS metal Kiosk Keyboard With 77 Keys

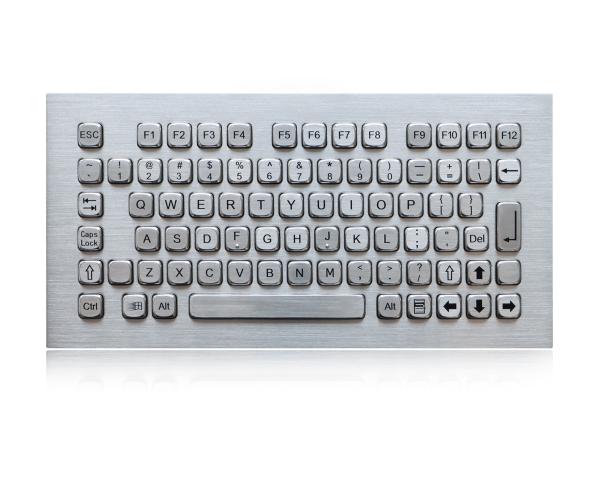

    Stainless Steel Liquid Proof Industrial Mini Kiosk Keyboard With 79 Keys


    DESCRIPTION:79 keys compact format IP65 static vandal proof stainless steel industrial keyboard,industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, function keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, stainless steel top plate with threaded bolts for top panel mounting solution.


    DIMENSIONS: 290.0 mm x 145.0mm (front panel)



    MECHANICAL DATA
    Actuator/keys79 keys
    Key top styleProtuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar
    Key travel1.50±0.10mm
    Actuation Force3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)
    Switch lifemore than 5 million of operations
    G.W.1.20KGs
    ELECTRICAL DATA
    Supply Voltage+5V DC ± 5%
    Current Rating30mA
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialCarbon-on-Gold key switch technology PCB
    InterfacePS2, USB available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Operating RH30-90%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection LevelIP65
    Vandal resistantIK08
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSIndustrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
