    86 Keys Dynamic Washable Stainless Steel Panel Mount Keyboard With Laser Trackball

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A361-LTB-FN-DWP
    Certification : CE, FCC, ROHS, IP65, IP68
    Price : To be quoted
    Payment Terms : Western Union, MoneyGram, T/T, L/C
    Supply Ability : 3000pcs/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    86 Keys Dynamic Washable Stainless Steel Panel Mount Keyboard With Laser Trackball


    Stainless steel keyboard top panel mounting washable with 38.0mm laser trackball


    Main Features:


    1. The keyboard can be dynamic washable with water and other liquids, it can work well even under direct water pouring on the keyboard.

    2. The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needing to take the keyboard away from PC.

    3. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

    4. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

    5. Waterproof execution according to IP65 protection from top panel, top stainless steel plate with threaded bolts for easy tightly mounting to enclosure or panel.

    6. An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation.

    7. Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.

    8. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.

    9. Ease of customizing with multiple languages, to accommodate foreign or custom variants.

    10. Complete electronic modules including controller in close consultation with our customers are available.

    11. PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.


    MECHANICAL DATA
    Actuator/keys86 keys (including 3 mouse buttons)
    Key top styleProtuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
    Key travel1.50±0.10mm
    Actuation Force1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point)

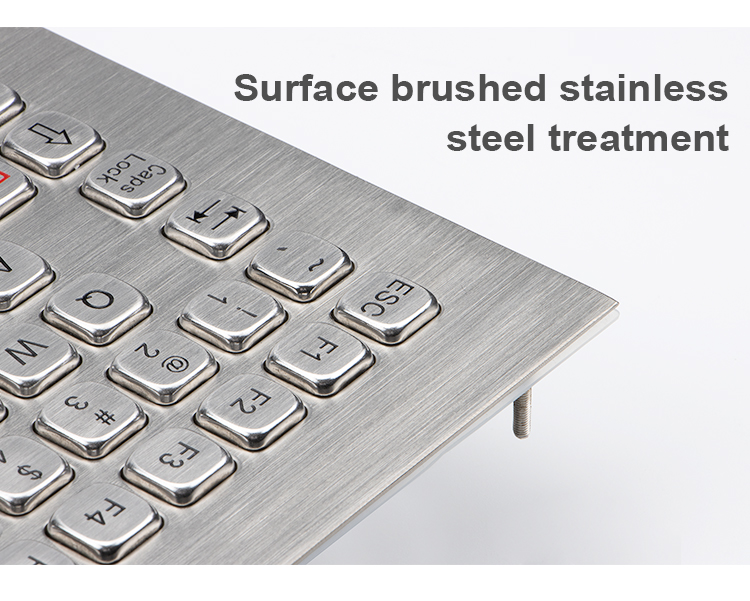

    Front Plate1.5mm thickness super quality brushed stainless steel
    Back Plate3.0mm thickness brushed & oxidized aluminium
    Switch lifemore than 5 million of operations
    Tracker ball38.0mm mechanical trackball module
    G.W.2.00KGs
    ELECTRICAL DATA
    Supply Voltage+5V DC ± 5%
    Current Rating50mA
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialCarbon-on-Gold key switch technology PCB

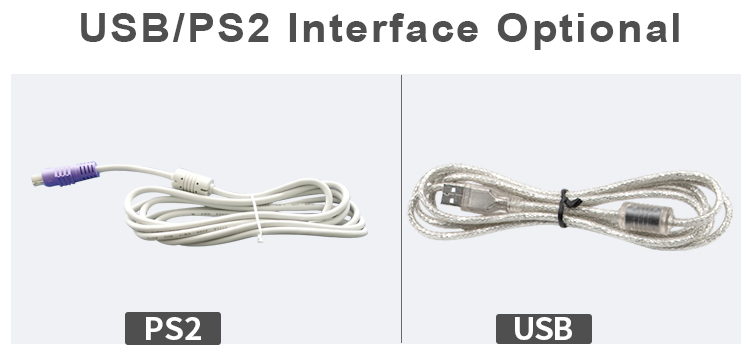

    InterfacePS2, USB available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Operating RH30-90%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection LevelIP65 dynamic (front panel)
    Vandal resistantIK08
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSIndustrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
