77 keys Customized layout Industrial Metal Desktop Keyboard with functions keys

Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 77 keys Customized layout Industrial Metal Desktop Keyboard with functions keys from wholesalers

    Buy cheap 77 keys Customized layout Industrial Metal Desktop Keyboard with functions keys from wholesalers
    • Buy cheap 77 keys Customized layout Industrial Metal Desktop Keyboard with functions keys from wholesalers
    • Buy cheap 77 keys Customized layout Industrial Metal Desktop Keyboard with functions keys from wholesalers
    • Buy cheap 77 keys Customized layout Industrial Metal Desktop Keyboard with functions keys from wholesalers
    • Buy cheap 77 keys Customized layout Industrial Metal Desktop Keyboard with functions keys from wholesalers

    77 keys Customized layout Industrial Metal Desktop Keyboard with functions keys

    Ask Lasest Price
    Model Number : K-TEK-B290-FN-DT
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Supply Ability : 3000psc/month
    Brand Name : IKB-MKB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    • Product Details
    • Company Profile

    77 keys Customized layout Industrial Metal Desktop Keyboard with functions keys

    Flat 77 key desk top industrial metal keyboard with waterproof and vandalproof


    DESCRIPTION:


    77 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard with ,industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input,function keys F1, F2..F10, F11, F12 are on the top line for easy operation, movable stand alone DESK TOP VERSION, or mountable desktop with mounting holes on the bottoms for fixing.


    DIMENSIONS: 290.0mm x 145.0mm x 20.0mm (L x W x H)


    Special Feature:


    MECHANICAL DATA

    Actuator/keys

    77 keys,
    2.0mm thickness super quality SUS304 brushed stainless steel
    bulge keys.

    Key top style

    Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

    Key Size

    14.0mm x 14.0mm for normal keys,
    14.0mm x 28.0mm for enter key,
    14.0mm x 100.0mm for space bar

    Key travel

    0.45mm

    Switch life

    more than 5 million of operations

    Actuation Force

    2.0 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ),
    4.0 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

    Stainless Steel Housing

    Full 1.2mm thickness super quality brushed stainless steel

    G.W.

    1.80KGs

    Dimensions

    290.0mm x 145.0mm x 20.0mm (L x W x H)


    1.77 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard


    2. industrial metal dome PCB with gold-on-gold key switch technology with short stroke0.45mm with excellent tactile feeling for stable and accurate data input


    3. function keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation

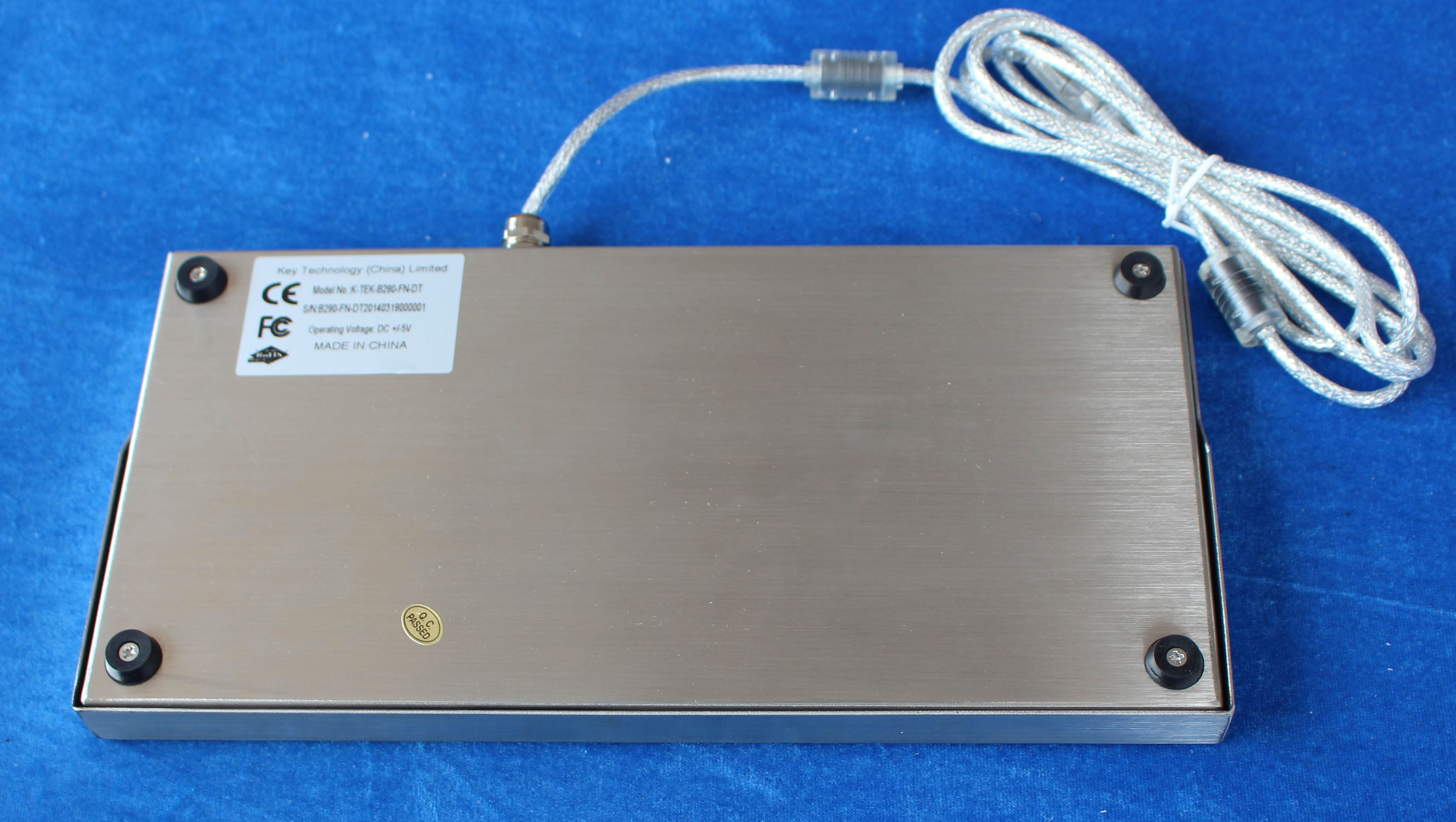

    4. movable stand alone DESK TOP VERSION, or mountable desktop with mounting holeson the bottoms for fixing.


    5. Imposing stainless steel design, specially designed keyboards meet the highest demandswith regard to design, functionality, longevity and high protection level.


    6. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operationunder hostile environments.


    7. Waterproof execution according to IP65 protection from top panel


    8. An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm tactile perception for comfortable operation


    9. Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.


    10. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.


    11. Ease of customizing with multiple languages, to accommodate foreign or custom variants.


    12. Complete electronic modules including controller in close consultation with our customers are available.


    13. PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.
