    Mini IP65 Explosion Proof Desk Top Industrial Metal Keyboard With Waterproof Touchpad

    Ask Lasest Price
    Model Number : K-TEK-A228TP-FN-DT
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Supply Ability : 3000psc/month
    Brand Name : IKB-MKB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    • Product Details
    • Company Profile

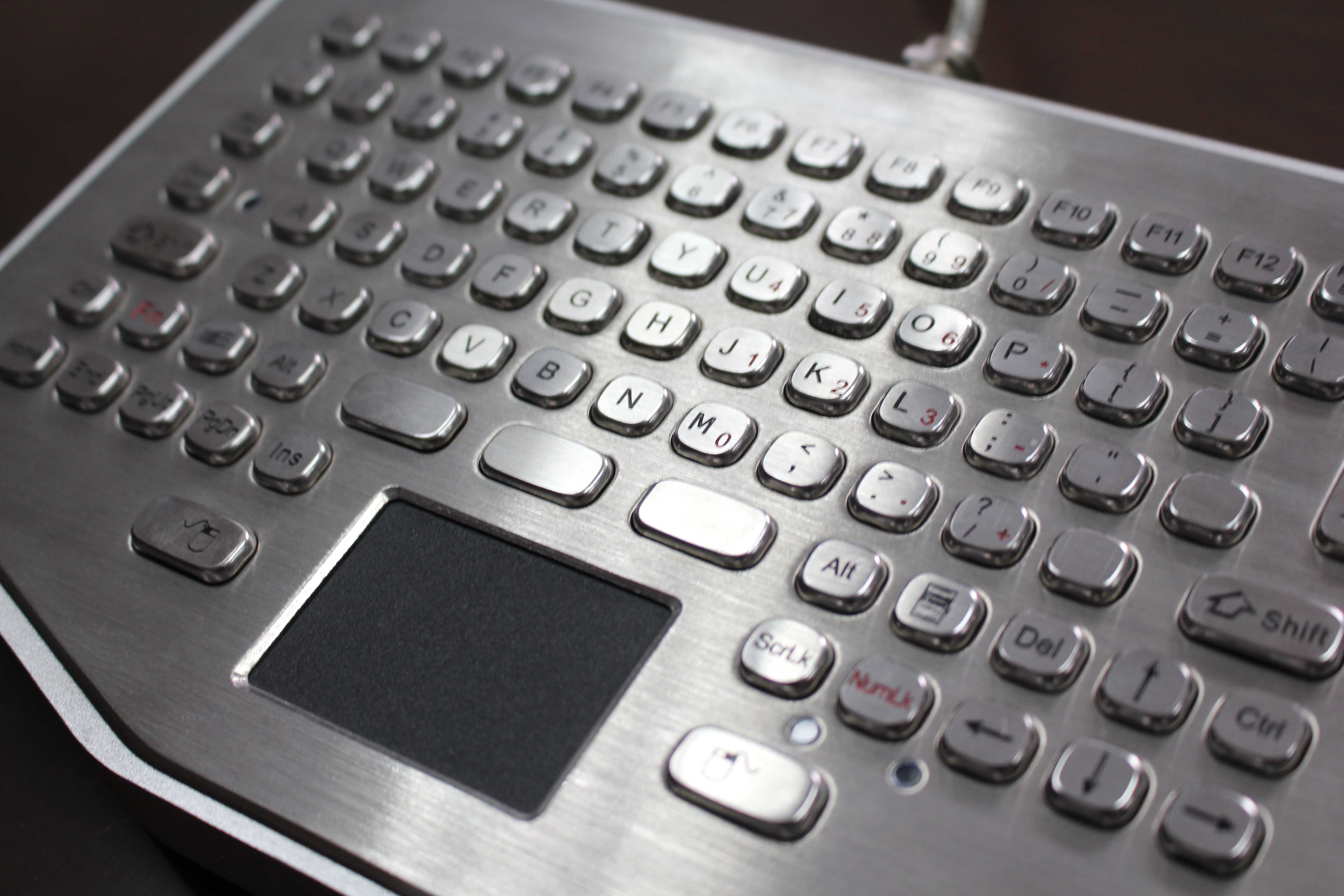

    Mini IP65 Explosion Proof Desk Top Industrial Metal Keyboard With Waterproof Touchpad


    IP65 Explosion Proof desk top industrial metal keyboard With Ruggedized Touchpad

    DESCRIPTION:
    MINI 92 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard with IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accuate cursor postion, function keys F1...F12 are on the top line for easy operation, with industrial PCB with carbon-on-gold key switch technology with long stroke (1.5mm) with extremely good tactile feeling for fast and accurate data input without any noise, movable stand alone desk top version with sealed aluminum metal housing with sand blasting & oxygenation surface treatment, adjustable industrial backlight optional. or mountable desktop with mounting holes on the bottoms for fixing. Military level optional.

    DIMENSIONS: 228.0mm x 142.40mm (front panel); 248.0mm x 162.0mm(rear panel)


    APPLICATION:
    This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.


    Special Features:

    MECHANICAL DATA

    Key

    92 keys, super quality brushed stainless steel

    Key top style

    Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available

    Key Size

    10.0mm x 11.0mm for normal keys,
    10.0mm x 20.0mm for enter key ,and space bar keys.

    Key travel

    1.50mm±0.10mm

    Switch life

    more than 5 million of operations

    Actuation Force

    0.6N +/-0.1N for key 10.0mm x 11.0mm (pressure point)
    1.2N +/-0.1N for key 10.0mm x 20.0mm (pressure point)

    Stainless Steel Housing

    super quality brushed stainless steel

    G.W.

    2.0KGs

    Dimensions

    228.0mm x 142.40mm (front panel); 248.0mm x 162.0mm(rear panel)


    TOUCHPAD

    Touchpad cover

    Composite

    More than Lifetime 10 million strokes

    Mutual Capacitance sensing

    X/Y position
    sensing resolution

    40 counts/mm

    X/Y position reporting

    Relative

    Output
    (self-detectable depending on cable)

    PS2 or USB

    Tracking speed

    Maximum 1,016 m/sec

    Power supply voltage

    5 V DC ±0.25V

    Current rating
    (active mode)

    10 mA





    KEY TECHNOLOGY CHINA LIMITED
